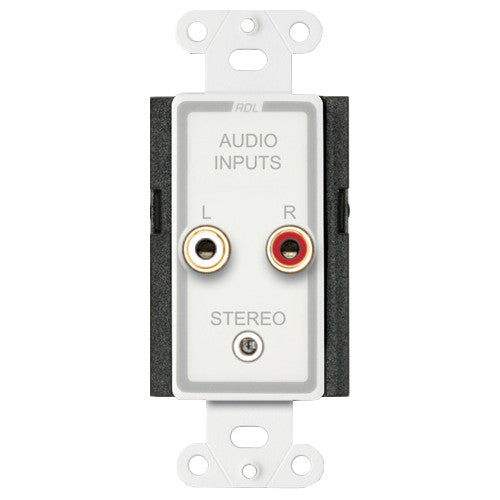

• RDL DB-CIJ3D Consumer Stereo Input Jacks

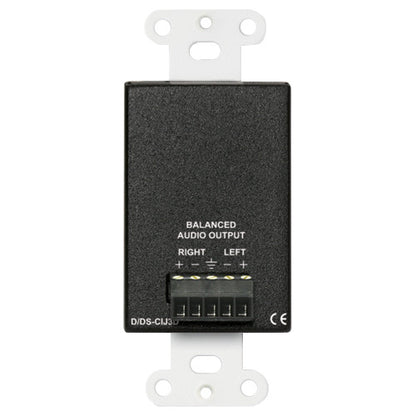

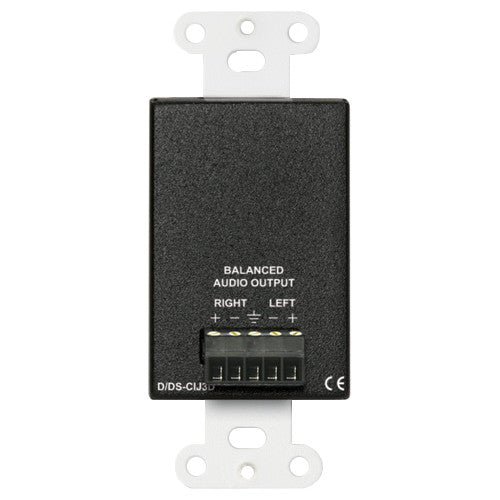

  • RDL DB-CIJ3D Consumer Stereo Input Jacks back
1 2

RDL DB-CIJ3D Consumer Stereo Input Jacks

RDL DB-CIJ3D Consumer Stereo Input Jacks

Soundpro Item: 76815 | Part Number: DB-CIJ3D

$126.84
$169.11 $126.84
Your Price Sold out
MSRP: $169.11 | MAP: $126.84

Usually ships in 5-7 business days

  • Stereo Inputs to Mono Output
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced to Balanced Conversion Without Gain
  • Transformer Isolation for Unbalanced Line Inputs
  • Hum Cancellation on Unbalanced Line Inputs
  • Line-Level Output to Feed 10 kO Equipment Inputs
  • Output Connections on Detachable Terminal Block
  • Mix Stereo Inputs to Mono Balanced
Log in or register for YOUR best price

The DB-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line.

The DB-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10 kO or higher input impedance line-level module or equipment input.

View full details

Specifications

  • Input connectors (3) Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
  • Frequency response (line level) 50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
  • THD0.2% (1 kHz)
  • Output connectorDetachable terminal block
  • Ambient Operating Environment0° C to 55° C
  • Crosstalk-80 dB (1 kHz) <-60 dB (10 Hz to 20 kHz)
  • Dimensions (HxWxD)4.13x1.7x2.15" (10.49x4.32x5.47cm)
  • Mounting Box Minimum Dimensions (WxD)1.80x1.75" (4.57x4.45cm)
  • Package Dimensions (HxWxD)3.625x4.625x2.125"
  • Shipping Weight0.55 lbs
  • WEEE weight0.4 lbs
