RDL DB-J3M Mic/Line Input Assembly

RDL DB-J3M Mic/Line Input Assembly

SoundPro Item: 84112 | Part Number: DB-J3M

$72.78
$97.03 $72.78
Your Price Sold out
MSRP: $97.03 | MAP: $72.78

Usually ships in 5-7 business days

  • Wall Mounted Audio Inputs
  • XLR Microphone Input with Gold Contacts
  • Mini-Jack Line Inputs
  • Hum Cancellation on Unbalanced Line Inputs
  • Transformer Isolation for Unbalanced Line Inputs
  • Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs
Log in or register for YOUR best price

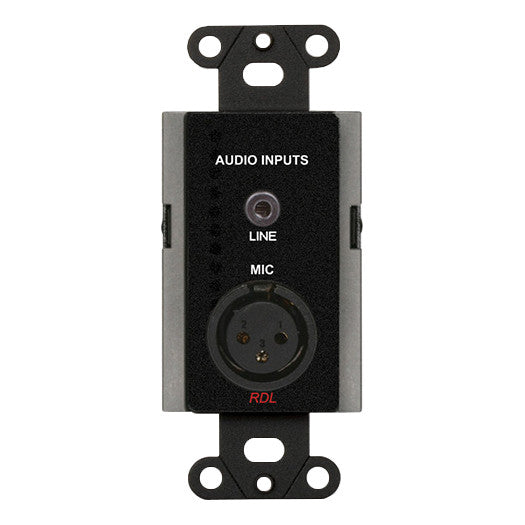

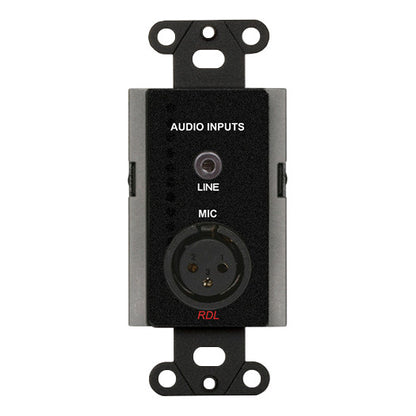

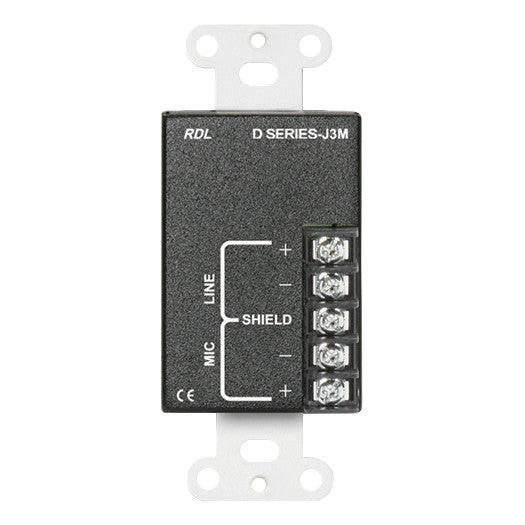

The D SERIES-J3M is a complete audio input panel assembly. The front panel features a female XLR jack and a single stereo mini-jack. The XLR is connected directly to the rear-panel barrier block. The mini-jack is intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 kΩ or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3M is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J3M fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U or WB-2U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

View full details

Specifications

Dimensions
Dimensions
Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
Package Dimensions
3.625 x 4.625 x 2.125 in.
Weight
Shipping Weight
0.505 lbs.
WEEE Weight
0.36 lbs.
Electrical
Power Requirement
Passive
Audio
Frequency Response (line in)
30 Hz to 20 kHz (±1 dB)
Connectivity
Input Connectors (2)
XLR female with gold contacts (1); Mini-jack (1)
Output Connector
Terminal block
Output Connections (5)
Line: +, -, SHIELD; Mic: SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
General
Mounting Box Req.
Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
Package Type
Cardboard Box
Tariff Code
8536.69.4030
