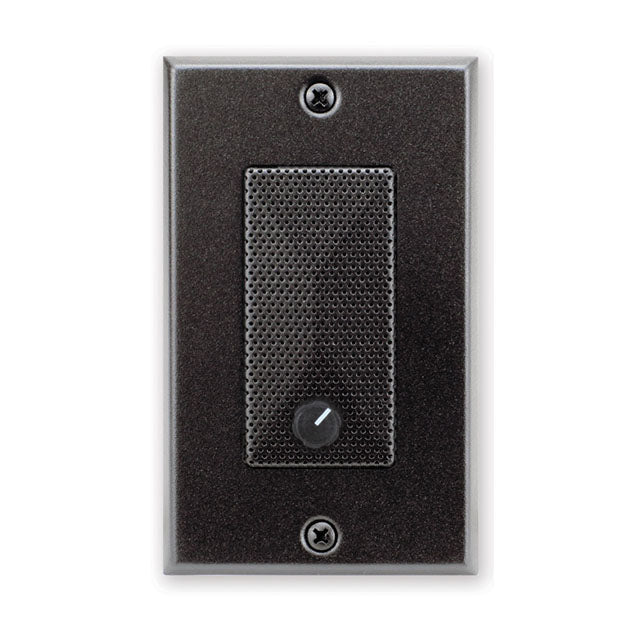

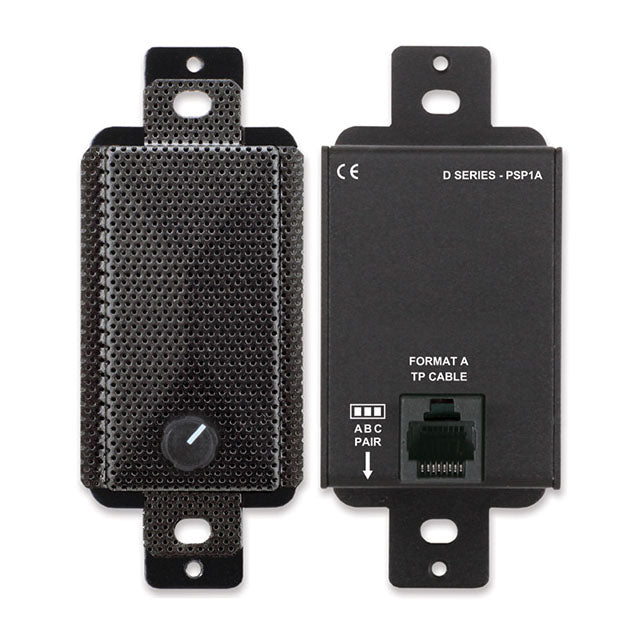

RDL DB-PSP1A Decora-Style Active Loudspeaker - Format-A

RDL DB-PSP1A Decora-Style Active Loudspeaker - Format-A

SoundPro Item: 84118 | Part Number: DB-PSP1A

$261.19
$348.26 $261.19
Your Price Sold out
MSRP: $348.26 | MAP: $261.19

Usually ships in 5-7 business days

  • Exceptional Audio Quality for Ultra-Compact Size
  • 2 Watt RMS Audio Amplifier
  • Compressor/Limiter Prevents Clipping
  • Connects to Format-A Sender using Twisted-Pair Cable
  • Powered from RDL Twisted Pair Format-A Sender
  • Front-Panel Gain Adjustment
  • Acoustically Optimized Decora Enclosure
  • Fidelity Comparable to Larger Drivers
  • Hemispherical Dispersion Mounted In Wall or Flat Surface
Log in or register for YOUR best price
View full details

Specifications

Input:
RDL Format-A
Input Connection:
RJ45
Format-A Signal Pair Used:
Switch-selectable A, B, or C (Rear-panel)
Gain Adjustment:
Single-turn audio taper (Front-panel)
Maximum SPL:
81 dB
Frequency Range:
150 Hz to 20 kHz, nominal
CMRR:
> 80 dB (50 Hz to 120 Hz)
Power Requirement:
24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referenced
Ambient Operating Environment:
0° C to 40° C Maximum; 20° C Recommended
Dimensions:
Height: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.27 in. 5.77 cm
Package Type:
Cardboard Box
Package Dimensions:
3.625 x 4.625 x 2.125 in.
Shipping Weight:
.562 lbs.
WEEE weight:
0.418 lbs.
Tariff code:
8518.21.0000
