RDL DB-RLC10K Remote Level Controller-0 To 10 K Ohm-Black

RDL DB-RLC10K Remote Level Controller-0 To 10 K Ohm-Black

SoundPro Item: 205089

$53.56
$71.42 $53.56
Your Price Sold out
MSRP: $71.42 | MAP: $53.56

Usually ships in 5-7 business days

  • Remote Level Control Panel
  • Single-Turn Rotary Control
  • Single Control Location
  • Direct Connection to RDL VCA Modules
  • Discrete Wiring Connections on Detachable Terminal Block
  • Available in Standard RDL White, Stainless or Black
Log in or register for YOUR best price

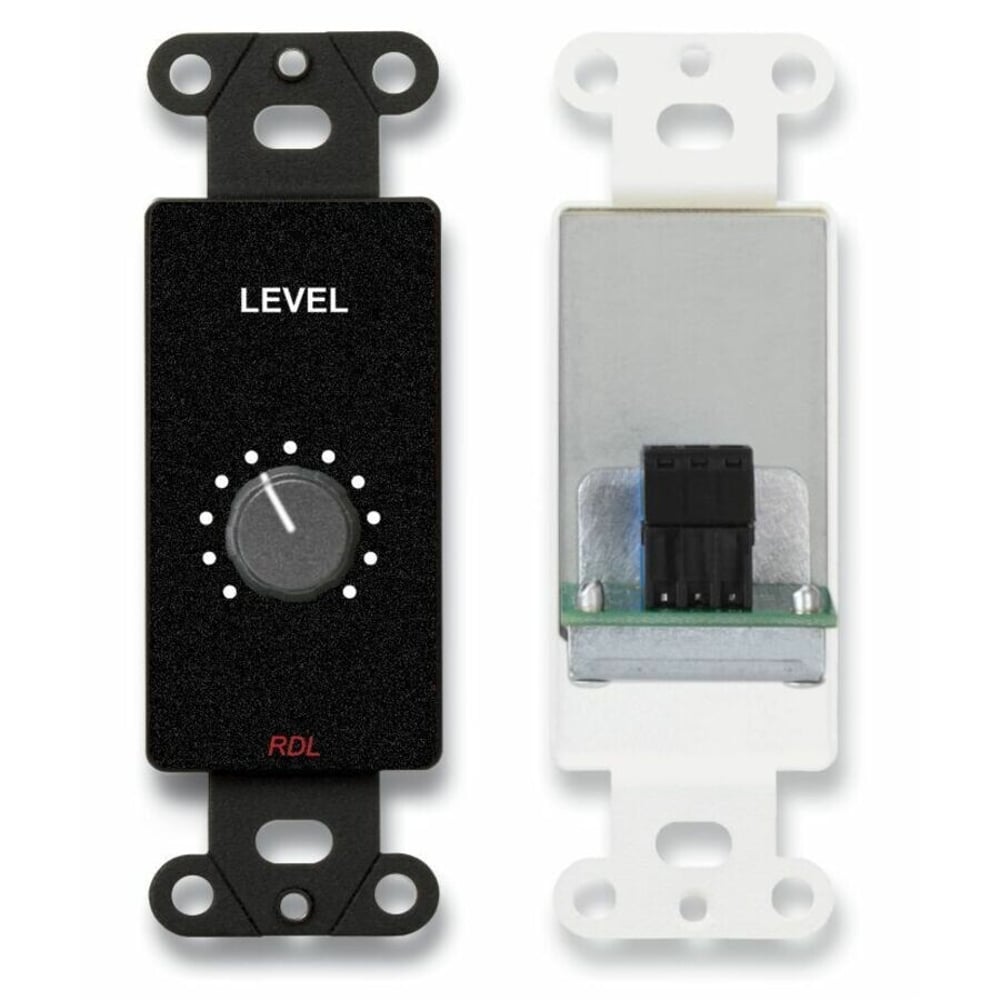

The DB-RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The DB-RLC10K contains a high-quality 10 kΩ potentiometer for setting the control voltage.

The DB-RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The DB-RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.

Three conductors are required for connection between the DB-RLC10K and an RDL VCA. A single shielded pair is normally used.

All the DB-RLC10K features combine to make it the optimum economical choice for single-point remote level control in high-quality systems. Use the DB-RLC10K individually with an RDL control module, or combine it side-by-side with other RDL remote accessories as part of a complete audio/video system.

View full details

Specifications

'General Information
Manufacturer
Radio Design Labs, Inc
Manufacturer Part Number
DB-RLC10K
Brand Name
RDL
Product Series
D
Product Model
DB-RLC10K
Product Name
Remote Level Control - 0 to 10 kΩ
Product Type
A/V Control Panel
Technical Information
Connectivity Technology
Wired
Dimmer Type
Rotary
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Electrical Box
Miscellaneous
Compatibility
RDL VCA Modules
Country of Origin
United States
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty
3 Year
