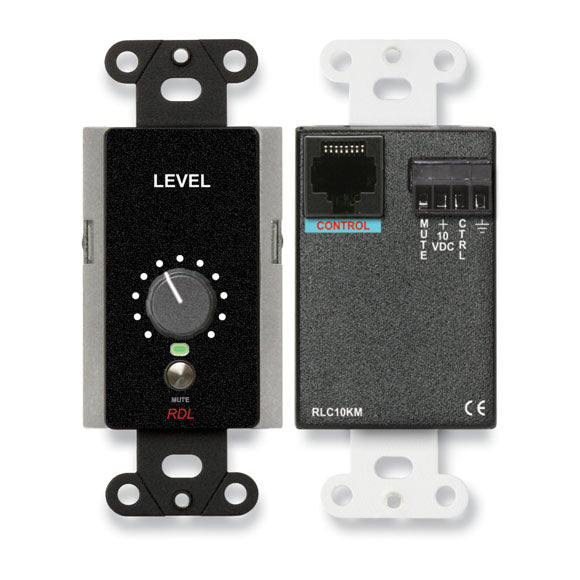

RDL DB-RLC10KM Remote Level Control with Muting

RDL DB-RLC10KM Remote Level Control with Muting

SoundPro Item: 84120 | Part Number: DB-RLC10KM

$146.50
$195.33 $146.50
Your Price Sold out
MSRP: $195.33 | MAP: $146.50

Usually ships in 5-7 business days

  • Remote Level Control Panel
  • Mute Button Toggles Output On and Off
  • Red/Green On/Off Mute Indicator
  • Single-Turn Rotary Control
  • Single Control Location
  • Direct Connection to RDL VCA Modules
  • Direct Control of Modules with RJ45 VCA Control
  • RJ45 or Discrete Wiring Connections on Detachable Terminal Block
  • Available in Standard RDL White, Stainless or Black
Log in or register for YOUR best price
View full details

Specifications

Resistance:
0 to 10 kΩ, linear
Mute button:
Momentary
Indicator:
Red = Muted (dc variable output = 0 volts); Green = Active (dc variable output tracks front panel knob)
MUTE Output:
25 mA open-collector
Mounting:
Mounts in standard US electrical box; cover plate available separately
Dimensions:
Height: 4.1 in. 10.4 cm; Depth: 1.44 in. 3.7 cm (without knob); Depth: 2 in. 5 cm (with knob); Width: 1.7 in. 4.33 cm
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.28 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
Shipping Weight:
0.43 lbs.
