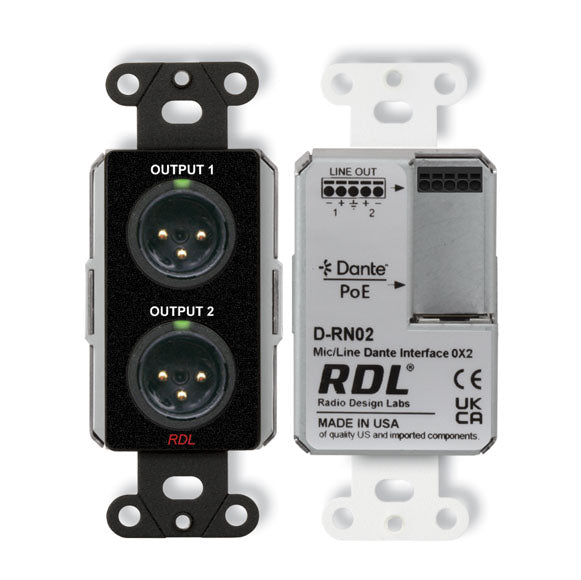

RDL DB-RN02 Wall-Mounted Mic/Line Dante Interface 0x2

RDL DB-RN02 Wall-Mounted Mic/Line Dante Interface 0x2

SoundPro Item: 152035 | Part Number: DB-RN02

$733.32
$970.92 $733.32
Your Price Sold out
MSRP: $970.92 | MAP: $733.32

Usually ships in 5-7 business days

  • Single-Gang Dante or AES67 Network Interface for Two Audio Outputs
  • Two Balanced Outputs on Front Panel XLRs and on Rear Panel Detachable Wiring Block
  • Front-Panel XLR Outputs are Software-Selectable for Mic or Line Level
  • Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
  • Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
  • Compatible with RDL Network Remote Controls
  • High Resolution 24 Bit Digital to Analog Conversion
  • Legendary RDL Studio Quality, Low-Noise Performance
Log in or register for YOUR best price
View full details

Specifications

TYPICAL PERFORMANCE
Network Connector:
RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:
Dante
Transmission Rate:
100 Mbps
Sample Rates Supported:
44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported:
24 bits
Audio Operating Level:
-18 dBFS = +4 dBu
Reference Level:
0 dBFS = +22 dBu
Network to Mic/Line Outputs Section
Outputs (2):
Balanced, XLR and detachable wiring block (2)
Output Level (operating):
+4 dBu (nominal) balanced
Output Level (maximum):
+22 dBu balanced
Output Attenuator:
Software-controlled, 0 to -63 dB and OFF(analog output per received network channel)
Output Impedance:
150 Ω balanced
Frequency Response:
Mic: 20 Hz to 20 kHz (± 0.5 dB);Line: 20 Hz to 20 kHz (± 0.5 dB)
THD+N:
< 0.1%
THD:
< 0.01% (1 kHz)
Noise:
< -80 dB (below +4 dBu);< -10)dB (below +22 dBu)
Crosstalk:
Below Noise Floor(20 Hz to 20 kHz at operating level, output to output)
Headroom above +4 dBu:
> 18 dB
Indicators (4):
Ethernet Link and Speed (2, rear panel);Sync and Power (2, front panel)
Ambient Operating Environment:
0° C to 50° C
Power Requirement:
PoE Class 0, IEEE 802.3af
Specification Conditions:
Gain/Level: ± 1 dB;Source termination: 150 Ω
Dimensions:
1.80” (4.57 cm) W;4.11” (10.44 cm) H;2.09” (5.31 cm) D
Package Type:
Cardboard Box
Package Dimensions:
2.75” (6.99 cm) x6.7” (17.02 cm) x6.25” (15.88 cm)
Shipping Weight:
0.69 lbs. (0.313 kg)
WEEE weight:
0.43 lbs. (0.195 kg)
US Tariff code:
8543.70.9100
EU Tariff code:
8543.70.0600
