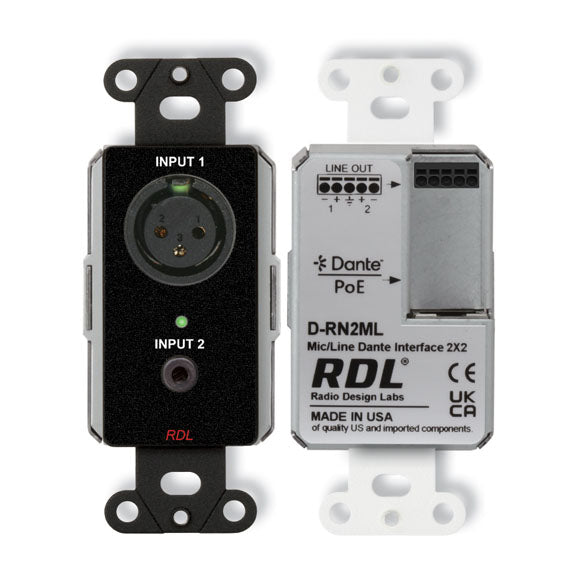

RDL DB-RN2ML Wall-Mounted Bi-Directional Mic/Line Dante Interface 2x2

RDL DB-RN2ML Wall-Mounted Bi-Directional Mic/Line Dante Interface 2x2

SoundPro Item: 152041 | Part Number: DB-RN2ML

$700.92
$949.32 $700.92
Your Price Sold out
MSRP: $949.32 | MAP: $700.92

Usually ships in 5-7 business days

  • Single-Gang Dante or AES67 Network Interface for Two Audio Inputs and Two Audio Outputs
  • One Balanced XLR Mic-Level or Line-Level Input
  • One Line-Level Summed-to-Mono Mini-jack Input
  • Two Balanced Rear-Panel Outputs on Detachable Wiring Block
  • Software-Selected XLR Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
  • P48 Mic Phantom Selected by Software
  • Software-Selected Mini-jack Input Gain: Unity, +5 dB / -5 dB
  • Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
  • Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
  • Compatible with RDL Network Remote Controls
  • High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
  • Legendary RDL Studio Quality, Low-Noise Performance
Log in or register for YOUR best price
View full details

Specifications

TYPICAL PERFORMANCE
Network Connector:
RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:
Dante or AES67
Transmission Rate:
100 Mbps
Sample Rates Supported:
44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported:
24 bits
Audio Operating Level:
-18 dBFS = +4 dBu
Reference Level:
0 dBFS = +22 dBu
Mic/Line Input to Network Section
Input:
XLR (female)
Gain:
Mic: 35 dB (LOW), 42 dB (MED), 59 dB (HIGH); Line: Unity (NORM), 12 dB (HIGH)
Input Level (for +4 dBu/-18 dBFS):
Mic: -31 dBu (LOW), -38 dBu (MED), -55 dBu (HIGH); Line: +4 dBu (LOW), -8 dBu (HIGH)
Input Level (maximum):
Mic: -14 dBu (LOW), -21 dBu (MED), -38 dBu (HIGH); Line: +23 dBu (LOW), +10 dBu (HIGH)
Input Impedance:
> 1.2 kΩ
Phantom Power:
P48, software-selectable
Standard for Phantom:
IEC 61938: 2013
Selectors per input (2):
Phantom, Gain, software-selectable
Frequency Response:
20 Hz to 20 kHz (± 0.5 dB)
Equivalent Input Noise:
< -128 dBu (59 dB gain); < -130 dBu A-Weighted
Noise below -18 dBFS (20 to 20 kHz):
Mic: < -88 dB (LOW), < -82 dB (MED), < -68 dB (HIGH); Line: -88 dB (NORM), < -88 dB (HIGH)
THD+N:
< 0.1% (20 Hz to 20 kHz, +4 dBu/-18 dBFS)
CMRR:
> 65 dB (50 Hz to 120 Hz)
Crosstalk:
Below Noise Floor (20 Hz to 20 kHz at operating level, input to input, max. gain)
Line Input to Network Section
Input:
Mini-jack, Stereo input summed to mono
Gain:
Unity (NORM), -5 dB (LOW), 5 dB (HIGH)
Input Level (for +4 dBu/-18 dBFS):
L and R inputs driven: -10 dBV (NORM), -15 dBV (LOW), -5 dBV (HIGH); L input driven: -8 dBV (HIGH)
Frequency Response:
20 Hz to 20 kHz (± 0.35 dB)
Noise below -18 dBFS (20 to 20 kHz):
-84 dB (NORM), -86 dB (LOW), -79 dB (HIGH)
THD+N:
< 0.1% (20 Hz to 20 kHz, +4 dBu/-18 dBFS)
Network to Line Outputs Section
Outputs (2):
Balanced, detachable wiring block
Output Level (operating):
+4 dBu (nominal) balanced
Output Level (maximum):
+22 dBu balanced
Output Attenuator:
Software-controlled, 0 to -63 dB and OFF (analog output per received network channel)
Output Impedance:
150 Ω balanced
Frequency Response:
20 Hz to 20 kHz (± 0.5 dB)
THD+N:
< 0.1%
THD:
< 0.01% (1 kHz)
Noise:
< -80 dB (below +4 dBu); < -100 dB (below +22 dBu)
Crosstalk:
Below Noise Floor (20 Hz to 20 kHz at operating level, output to output)
Headroom above -10 dBV:
> 18 dB
Indicators (4):
Ethernet Link and Speed (2, rear panel); Sync and Power (2, front panel)
Ambient Operating Environment:
0° C to 50° C
Power Requirement:
PoE Class 0, IEEE 802.3af
Specification Conditions:
Gain/Level: ± 1 dB; Source termination: 150 Ω; A to D values measured in digital domain
Dimensions:
1.80” (4.57 cm) W;4.11” (10.44 cm) H;2.09” (5.31 cm) D
Package Type:
Cardboard Box
Package Dimensions:
2.75” (6.99 cm) x6.7” (17.02 cm) x6.25” (15.88 cm)
Shipping Weight:
0.71 lbs. (0.32 kg)
WEEE weight:
0.45 lbs. (0.2 kg)
US Tariff Code:
8543.70.9100
EU Tariff Code:
8543.70.0600
