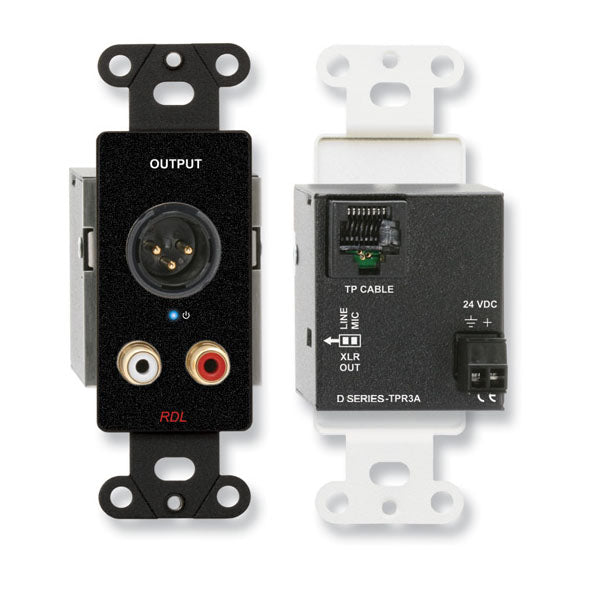

RDL DB-TPR3A Active Three-Pair Receiver - Twisted Pair Format-A - XLR and stereo RCA outputs

RDL DB-TPR3A Active Three-Pair Receiver - Twisted Pair Format-A - XLR and stereo RCA outputs

SoundPro Item: 76877 | Part Number: DB-TPR3A

$259.93
$346.57 $259.93
Your Price Sold out
MSRP: $346.57 | MAP: $259.93

Usually ships in 5-7 business days

  • Balanced Mic or Line Level XLR Output
  • Switch-Selectable Output Level on Rear Panel
  • Two Unbalanced -10 dBV Phono Jack Audio Outputs
  • XLR From Pair A; L From Pair B; R From Pair C
  • Remote Powering through Twisted Pair Cable
  • Fused Local Power Feeds all Connected Modules
  • Local Power Input on Terminal Block
  • Blue LED Indicates Module is Powered
  • Utilizes All Three Format-A Pairs
  • Studio-Quality Precision Active Balanced Circuitry
Log in or register for YOUR best price
View full details

Specifications

Input:
RDL FORMAT-A
Input Connection:
RJ45 (Models D-, DS-); Detachable Terminal Block (Model EM-)
Format-A Signal Pairs Used (3):
A, B, C
Outputs (3):
150 Ω balanced; 100 Ω unbalanced
Output Connection:
XLR (balanced Mic or Line); RCA Phono Jack (2)
Output Level:
XLR: -45 dBu Mic or +4 dBu Line Level, Switch-selectable on rear panel;RCA phono: -10 dBV
Frequency Response:
10 Hz to 50 kHz (± 0.1 dB)
THD+N:
< 0.005%
Noise below +4 dBu:
< -90 dB
Crosstalk:
< 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)
Headroom above +4 dBu:
> 18 dB
CMRR:
> 80 dB (50 Hz to 150 Hz)
Indicator:
Power In
Power Connections (2):
Detachable terminal block; RJ45
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
24 Vdc @ 45 mA plus connected loads
Dimensions:
1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) D
Mounting Box Minimum Depth:
2.4" (Models D-, DS-); 39 mm (Model EM-)
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.245 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
Shipping Weight:
0.39 lbs.
