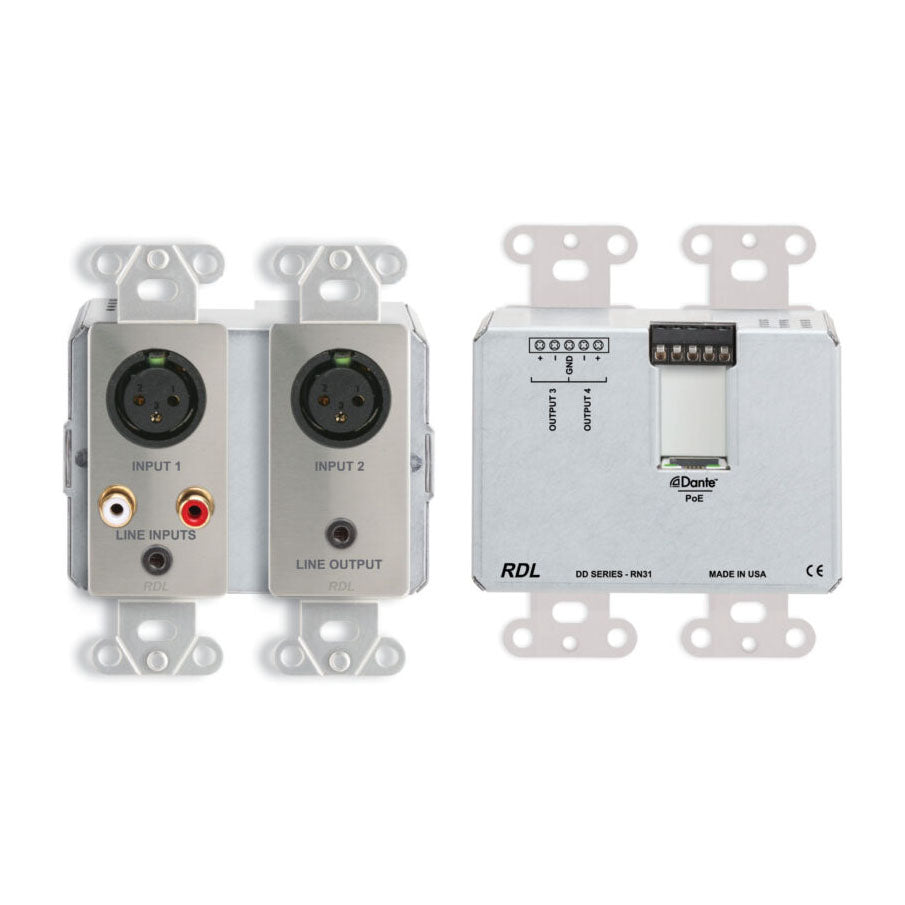

RDL DDS-RN31 Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4
RDL DDS-RN31 Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4
SoundPro Item: 117710 | Part Number: DDS-RN31
Regular price
$905.22
Regular price
$1,206.96
Sale price
$905.22
Unit price
per
MSRP: $1,206.96
| MAP: $905.22
Usually ships in 5-7 business days
- Dante Network Interface for Four Audio Inputs and Four Audio Outputs
- One Mini-jack, Two RCA Jacks and Two XLR Front-Panel Inputs
- One Mini-jack Front-Panel Output; Two Balanced Outputs on Rear-Panel Terminal Block
- Module is Configured and Adjusted Using Network Control Software
- Q-SYS Plug-In Available for Configuring in Q-SYS Environment
- Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels
- Each Input Gain is Selected by Software
- Mic Gain: 35 dB, 42 dB or 59 dB
- Line Gain: Unity or 12 dB
- 48 V Mic Phantom (P48) Selected by Software
- Each Mini-jack and RCA -10 dBV Input May Feed One or Two Dante Network Channels
- Converts Four Dante Network Audio Signals to Line Level
- Mini-jack -10 dBV Stereo Output from Two Specific Dante Channels
- Rear Panel Balanced Outputs from Two Specific Dante Channels
- Each Rear Panel +4 dBu Output Equipped with Software Controlled Attenuator in 1 dB Steps
- Studio Quality, Low-Noise Performance
- High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
- Legendary RDL Analog Filtering Enhances Superb Audio Performance
Specifications
Network Connector:
RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:
Dante
Transmission Rate:
100 Mbps
Sample Rates Supported:
44.1 kHz, 48 kHz (default)
Bit Depth Supported:
24 bits
Audio Operating Level:
-18 dBFS = +4 dBu
Reference Level:
0 dBFS = +22 dBu
Mic/Line Inputs to Network Interface
Inputs (2):
XLR (female)
Gain:
Mic: 35 dB (LOW), 42 dB (MED), 59 dB (HIGH); Line: Unity (NORM), 12 dB (HIGH)
Input Level (for +4 dBu/-18 dBFS):
Mic: -31 dBu (LOW), -38 dBu (MED), -55 dBu (HIGH); Line: +4 dBu (LOW), -8 dBu (HIGH)
Input Level (maximum):
Mic: -14 dBu (LOW), -21 dBu (MED), -38 dBu (HI); Line: +23 dBu (LOW), +10 dBu (HIGH)
Input Impedance:
> 1.2 kΩ
Phantom Power:
P48, 48 Vdc, software-selectable
Standard for Phantom:
IEC 61938: 2013
Selectors per input (2):
Phantom, Gain, software-selectable
Frequency Response:
20 Hz to 20 kHz (± 0.5 dB)
Equivalent Input Noise:
< -128 dBu (59 dB gain); < -130 dBu A-Weighted
Noise below -18 dBFS (20 to 20 kHz):
Mic: < -88 dB (LOW), < -82 dB (MED), < -68 dB (HIGH); Line: < -88 dB (NORM), < -88 dB (HIGH)
THD+N:
< 0.1% (20 Hz to 20 kHz, +4 dBu/-18 dBFS)
CMRR:
> 65 dB (50 Hz to 120 Hz)
Crosstalk:
Below Noise Floor (20 Hz to 20 kHz at operating level, any input to any input, max. mic gain)
Inputs (4):
Mini-jack Stereo (2, L and R); RCA jacks (2, L and R)
Input Level (for +4 dBu/-18 dBFS):
-10 dBV nominal
Input Level (maximum):
+8 dBV
Input Impedance:
> 50 kΩ
Selectors:
Stereo (L and R)/Mono (summed), software-selectable
Frequency Response:
20 Hz to 20 kHz (± 0.2 dB)
Noise below -18 dBFS (20 to 20 kHz):
< -85 dB
Crosstalk:
< -85 dB (1 kHz); < -65 dB (L into R, R into L, 20 Hz to 20 kHz)
THD+N:
< 0.05% (20 Hz to 20 kHz, +4 dBu/-18 dBFS); 0.01% at 1 kHz (typ)
Outputs (4):
Balanced, detachable terminal block (2); Unbalanced, Mini-jack (2, L and R)
Output Level (operating):
+4 dBu (nominal) balanced, software adjustable in 1 dB steps; -10 dBV (nominal) unbalanced
Output Level (maximum):
+22 dBu balanced; +8 dBV unbalanced
Output Impedance:
150 Ω balanced, 100 Ω unbalanced
Frequency Response:
20 Hz to 20 kHz (± 0.5 dB)
THD+N:
< 0.05%
Noise:
< -88 dB (bal., below +4 dBu); < -106 (bal., below +22 dBu); < -90 dB (unbal., below -10 dBV)
Crosstalk:
< -70 dB (bal., 20 Hz to 20 kHz); < -80 dB (unbal., 20 Hz to 20 kHz)
Indicators (4):
Ethernet Link and Speed (2, rear panel); Sync and Power (2, front panel)
Ambient Operating Environment:
0° C to 40° C; 30° C maximum recommended
Power Requirement:
PoE Class 0, IEEE 802.3af
Specification Conditions:
Gain/Level: ± 1 dB; Source termination: 150 Ω; A to D values measured in digital domain
Dimensions:
3.52" (8.94 cm) W; 4.11" (10.44 cm) H; 2.09" (5.31 cm) D
Package Type:
Cardboard Box
Package Dimensions:
3.625 x 4.625 x 2.125 in.
Shipping Weight:
0.92 lbs.
WEEE weight:
0.765 lbs.
Tariff code:
8543.70.9100
