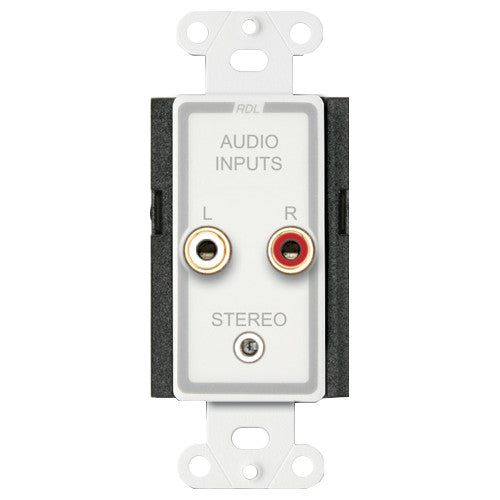

• RDL DS-CIJ3D Consumer Stereo Input Jacks

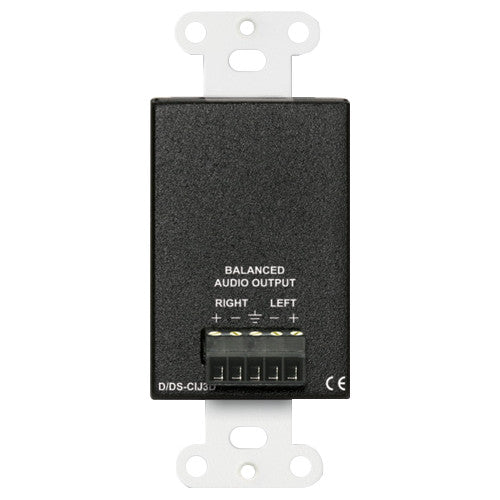

  • RDL DS-CIJ3D Consumer Stereo Input Jacks back
1 2

RDL DS-CIJ3D Consumer Stereo Input Jacks

RDL DS-CIJ3D Consumer Stereo Input Jacks

SoundPro Item: 77000 | Part Number: DS-CIJ3D

$126.47
$168.62 $126.47
Your Price Sold out
MSRP: $168.62 | MAP: $126.47

Usually ships in 5-7 business days

  • Stereo Inputs to Stereo Outputs
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced to Balanced Conversion Without Gain
  • Transformer Isolation for Unbalanced Line Inputs
  • Hum Cancellation on Unbalanced Line Inputs
  • Line-Level Output to Feed 10 kΩ Equipment Inputs
  • Output Connections on Detachable Terminal Block
Log in or register for YOUR best price

The D/S-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines. The D/S-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.

View full details
  • Input connectors (3) Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
  • Frequency response (line level) 50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
  • THD <0.2% (1 kHz)
  • Output connector Detachable terminal block
  • Ambient Operating Environment 0°C to 55°C
  • Crosstalk <-80 dB (1 kHz); <-60 dB (10 Hz to 20 kHz)
  • DimensionsHeight: 4.13 in. 10.49 cm, Width: 1.7 in. 4.32 cm, Depth: 2.15 in. 5.47 cm
  • Mounting Box Minimum DimensionsWidth: 1.80 in. 4.57 cm, Depth: 1.75 in. 4.45 cm
  • Package Type Cardboard Box
  • Package Dimensions 3.625 x 4.625 x 2.125 in.
  • Shipping Weight 0.55 lbs.
  • WEEE weight 0.4 lbs.
  • Tariff code 8543.70.9860
