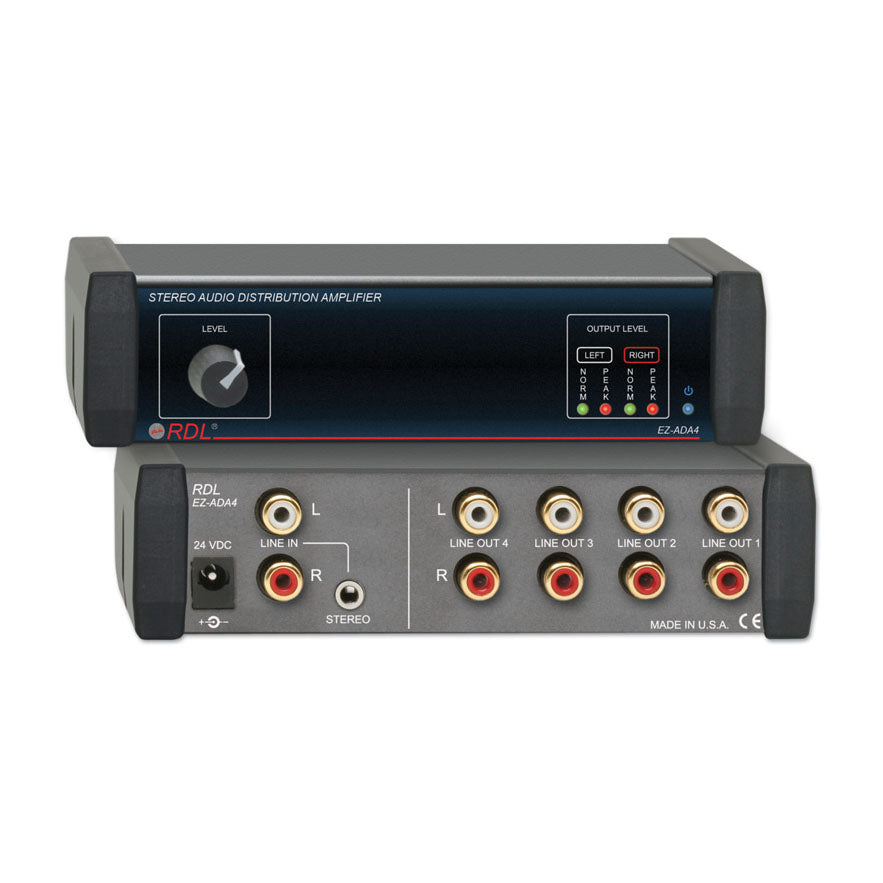

RDL EZ-ADA4 Stereo Audio Distribution Amplifier - 1X4

RDL EZ-ADA4 Stereo Audio Distribution Amplifier - 1X4

SoundPro Item: 77156 | Part Number: EZ-ADA4

Regular price $199.77
Regular price $266.36 Sale price $199.77
Your Price Sold out
MSRP: $266.36 | MAP: $199.77

Usually ships in 5-7 business days

  • One Stereo Input to Four Stereo Outputs
  • Unbalanced Inputs on MINI or RCA Jacks
  • Unbalanced Outputs on RCA Jacks
  • Inputs and Outputs on Rear Panel
  • Front-Panel LEVEL Control
  • Dual-LED VU Meter for Each Channel
  • Gold-Plated Connectors
  • Front-Panel Stereo Audio Metering
  • Knob for Easy Level Adjustment
View full details

Specifications

Inputs (2):
Stereo on dual RCA jacks or stereo mini jack, > 10 kΩ, -10 dBV nominal, +22 dBV max.
Level control:
Off to 12 dB gain above nominal
Outputs (4):
Stereo on dual RCA jacks, -10 dBV nominal, +16 dBV max.
Frequency Response:
10 Hz to 20 kHz (±0.01 dB)
THD+N:
< 0.03%
Crosstalk:
<-80 dB (1 kHz)
Metering:
Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Noise:
<-85 dB (below -10 dBV output)
24 Vdc power supply current:
20 mA (idle), 60 mA (max.)
Case dimensions:
5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size:
1/3 rack width.
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.565 lbs.
Shipping Weight:
0.95 lbs.
Package Dimensions:
9.5 x 7 x 2.25 in.
