RDL EZ-AFC2 Audio Format Converter - Stereo Balanced ? Unbalanced

RDL EZ-AFC2 Audio Format Converter - Stereo Balanced ? Unbalanced

SoundPro Item: 77158 | Part Number: EZ-AFC2

$283.86
$378.48 $283.86
Your Price Sold out
MSRP: $378.48 | MAP: $283.86

Usually ships in 5-7 business days

  • Unbalanced to Balanced Audio Conversion
  • Balanced to Unbalanced Audio Conversion
  • Unbalanced RCA Connections on Front Panel
  • Balanced XLR Connections on Rear Panel
  • Front-Panel LEVEL Controls
  • Gold-Plated Connectors
  • Front-Panel Stereo Audio Metering
  • Knob for Easy Level Adjustment
  • Exceptional Headroom and Frequency Response
  • Dual-LED VU Meter for Each Channel
Log in or register for YOUR best price

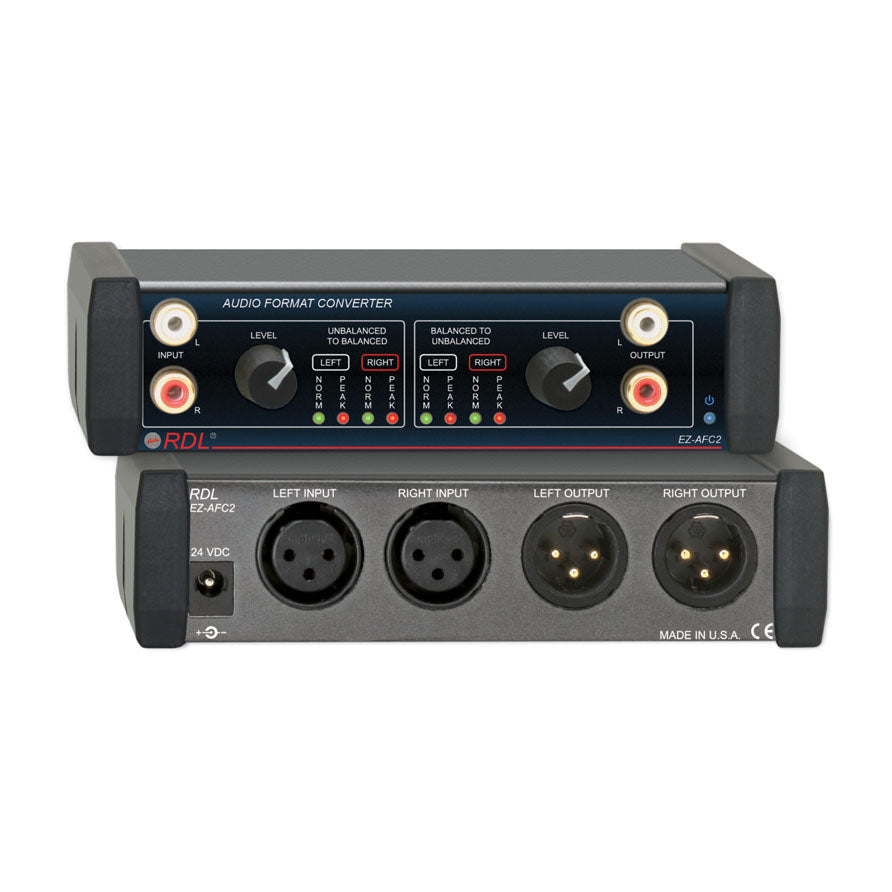

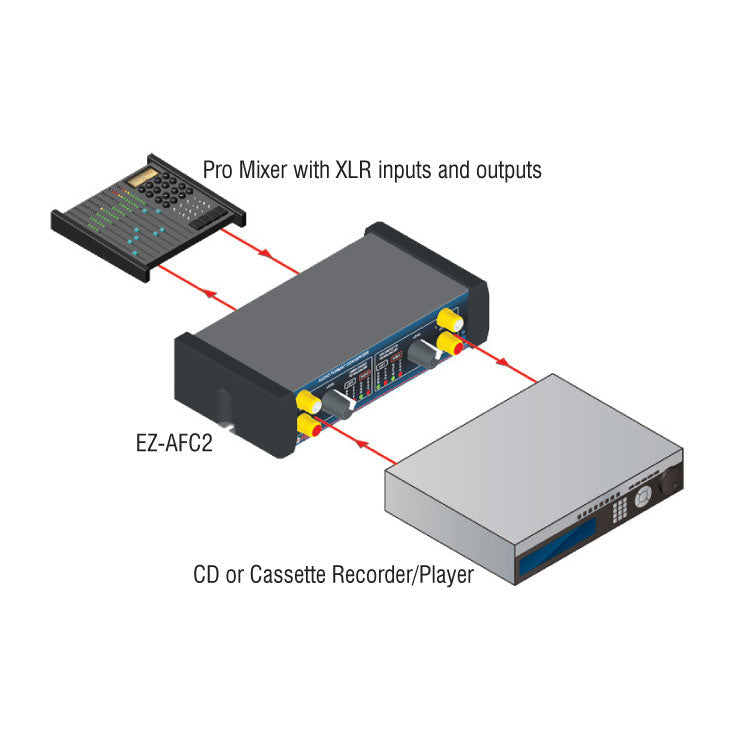

The EZ-AFC2 is a stereo bi-directional audio format converter with level controls. Conversion is provided between balanced rear-panel XLR jacks and unbalanced front-panel RCA jacks. LED VU metering is provided for all audio channels facilitating adjustment for high or low input levels. The bi-directional format allows the EZ-AFC2 to fully convert the stereo input and stereo output of a consumer audio product to professional balanced standards. The EZ-AFC2 is used in houses of worship, studios, sound booths, home component systems and commercial sound systems.

View full details

Specifications

UNBALANCED TO BALANCED SECTION
Input:
Stereo on dual RCA jacks, > 10 kΩ, -10 dBV nominal, +16 dBV max.
Level control:
Off to 12 dB gain above nominal
Output:
Stereo on dual XLR jacks, +4 dBu nominal, +26 dBu max.
Frequency Response:
10 Hz to 50 kHz (±0.01 dB)
THD+N:
< 0.01%
Metering:
Dual-LED VU Meter for Left and Right, calibrated to +4 dBu output
Crosstalk:
< 75 dB (1 kHz)
Noise:
< -85 dB (below +4 dBu output).
BALANCED TO UNBALANCED SECTION
Input:
Stereo on dual XLR jacks, +4 dBu nominal, +26 dBu max.
Level control:
Off to 12 dB gain above nominal
Output:
Stereo on dual RCA jacks, -10 dBV nominal, +17 dBV max.
Frequency Response:
10 Hz to 50 kHz (±0.01 dB)
THD+N:
< 0.003%
Crosstalk:
< 80 dB (1 kHz)
CMRR:
> 50 dB (50 Hz to 120 Hz)
Metering:
Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Noise:
< -75 dB (below +4 dBu output)
24 Vdc power supply current:
45 mA (idle), 90 mA (max.)
Case dimensions:
5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size:
1/3 rack width.
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.615 lbs.
Shipping Weight:
1.015 lbs.
Package Dimensions:
9.5 x 7 x 2.25 in.
