RDL EZ-HDA4B Stereo Headphone Distribution Amp - 1X4 Rear-Panel Outputs

RDL EZ-HDA4B Stereo Headphone Distribution Amp - 1X4 Rear-Panel Outputs

SoundPro Item: 77167 | Part Number: EZ-HDA4B

Regular price $221.38
Regular price $295.18 Sale price $221.38
Your Price Sold out
MSRP: $295.18 | MAP: $221.38

Usually ships in 5-7 business days

  • One Stereo Input to Four Stereo Outputs
  • Unbalanced Inputs on Rear Panel
  • Input on MINI, 1/4? (6.3 mm) or RCA Jacks
  • Headphone Outputs on Rear Panel
  • Outputs on Mini-Jacks
  • Front-Panel LEVEL Control for Each Output
  • Gold-Plated RCA Input Connectors
  • Each Output is Driven Separately
  • Knobs for Easy Level Adjustment

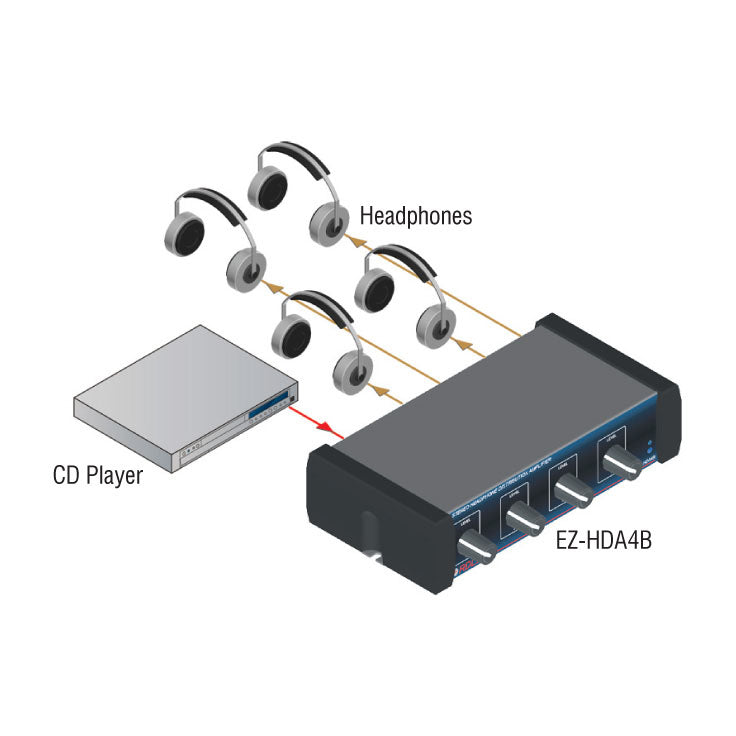

The EZ-HDA4B contains four stereo headphone amplifiers with individual front-panel volume controls. Headphone outputs are provided on rear-panel mini-jacks. One stereo input signal feeds all the amplifiers. Stereo RCA jacks, a mini-jack and a 1/4" jack are provided for connecting the input source. The EZ-HDA4B is used in music stores, houses of worship, studios, museums, home component systems and commercial sound systems.

View full details

Specifications

Inputs (3):
Stereo on dual RCA jacks, stereo mini jack or 1/4” (6.3 mm) TRS, > 10 kΩ, -10 dBV nominal, +8.5 dBV max. (RCA and 1/4”), -16 dBV nominal, +2 dBV max. (Mini)
Outputs (4):
Stereo on Mini jacks (rear panel), 60 mW (100 Ω load)
Level control:
Off to +2.5 dB gain (RCA and 1/4” inputs, 100 Ω output load), Off to +9 dB gain (Mini input, 100 Ω output load)
Frequency Response:
20 Hz to 50 kHz (±1.5 dB, 100 Ω load)
THD+N:
< 0.1% (10 mW output, 100 Ω load)
Crosstalk:
< -75 dB (1 kHz)
Noise:
< -95 dB (below 10 mW output, 100 Ω load, maximum gain)
24 Vdc power supply current:
40 mA (idle), 65 mA (max.)
Case dimensions:
5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size:
1/3 rack width.
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.575 lbs.
Shipping Weight:
0.975 lbs.
Package Dimensions:
9.5 x 7 x 2.25 in.
