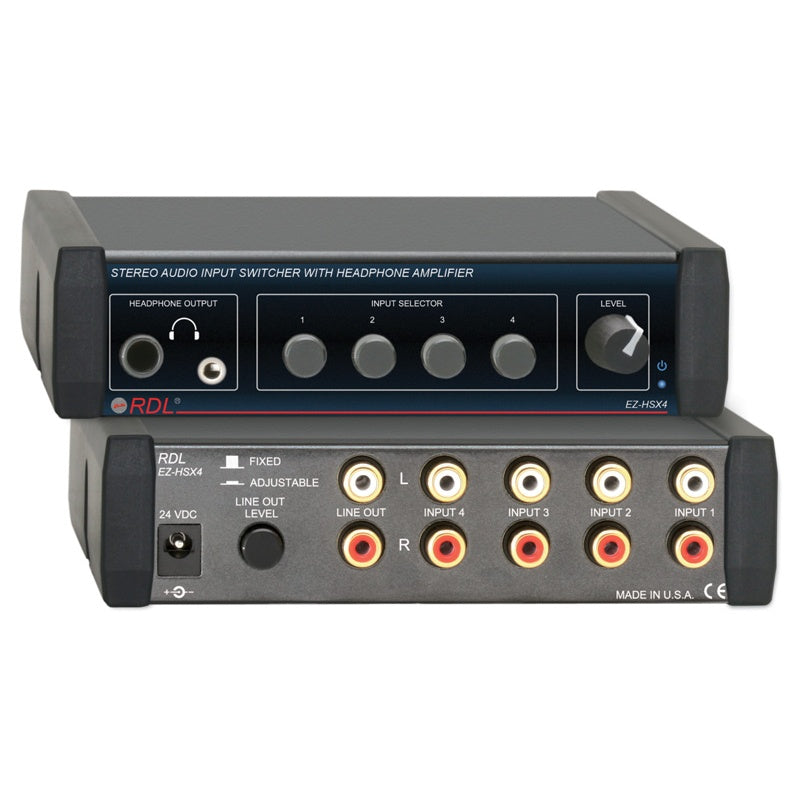

RDL EZ-HSX4 4x1 Stereo Audio Source Selector With Headphone Amp

RDL EZ-HSX4 4x1 Stereo Audio Source Selector With Headphone Amp

SoundPro Item: 208875 | Part Number: EZ-HSX4

$241.66
$322.21 $241.66
Your Price Sold out
MSRP: $322.21 | MAP: $241.66

Usually ships in 5-7 business days

  • Four-Input Solid-State Source Selection Eliminates Switch Noise And Contact Wear
  • Dual Headphone Jacks Allow Front-Panel Monitoring Without Additional Hardware
  • Line Output Switchable Between Fixed Unity Gain And Variable Modes
  • Front-Panel Interlocking Pushbuttons Provide Clear, Tactile Source Selection
  • One-Third Rack Width Fits Tight Equipment Bays And Custom Installs
Log in or register for YOUR best price

The RDL EZ-HSX4 is a compact 4-input stereo source selector built for installed AV environments where clean, reliable signal routing matters. It fits houses of worship, retail stores, broadcast sound booths, recording studios, and commercial sound systems that need a straightforward way to choose between multiple program sources without a mixing console in the signal path. Solid-state audio switching eliminates the mechanical noise and contact degradation common in passive switchers, making it a dependable long-term install component.

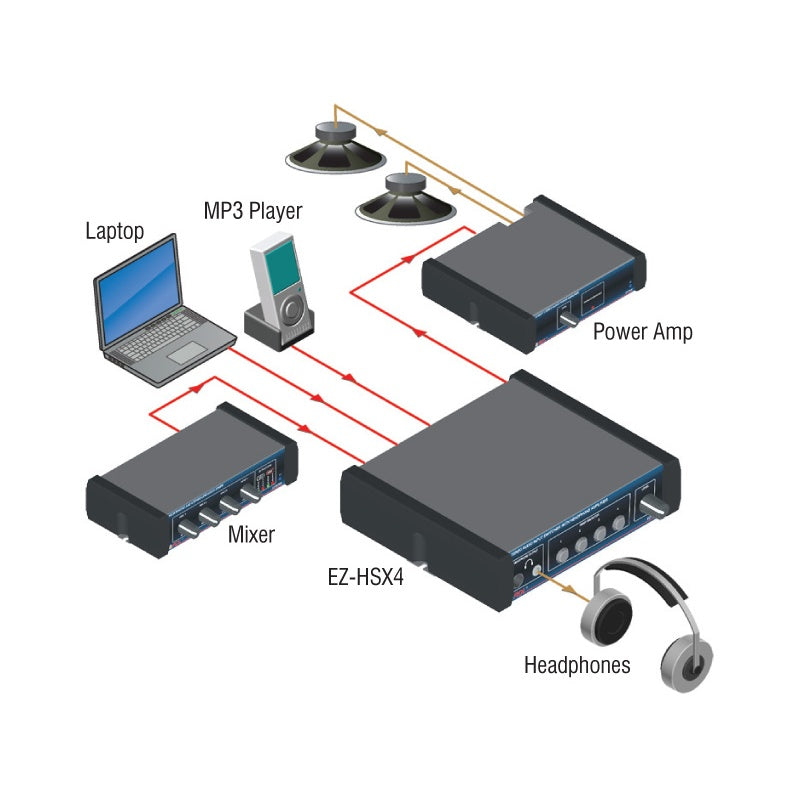

Where the EZ-HSX4 stands apart from basic passive selectors is its integrated headphone amplifier and dual output architecture. Engineers and operators can monitor directly on headphones via the front-panel 1/4-inch or mini jack while simultaneously feeding a downstream power amplifier through the rear RCA line output. The line output can be set to unity gain for fixed-level distribution or switched to variable mode so the front-panel level control governs both outputs together. At one-third rack width, it mounts cleanly in a rack enclosure alongside associated amplifiers or drops into a custom millwork installation without consuming full-rack real estate.

Downloads

View full details

Specifications

Audio
Inputs
4 stereo, dual RCA jacks, >10 kOhm, -10 dBV nominal, +10 dBV max
Line Output
Stereo dual RCA jacks, -10 dBV nominal, +10 dBV max fixed, +17 dBV max variable
Headphone Outputs
1/4" (6.3 mm) TRS and Mini jack, 35 mW, 100 Ohm load
Level Control Range
Off to +12 dB gain
Frequency Response
10 Hz to 20 kHz (line output +/-0.05 dB, headphone output +/-1.25 dB, 100 Ohm load)
THD+N
<0.03% (line output), <0.1% (headphone output, 10 mW, 100 Ohm load)
Crosstalk
<-70 dB at 1 kHz
Noise (Headphone)
<-100 dB below 10 mW output, 100 Ohm load
Noise (Variable Output)
<-80 dB below -10 dBV, unity gain
Noise (Fixed Output)
<-95 dB below -10 dBV
Electrical
Power Supply
24 Vdc
Current (Idle)
40 mA
Current (Max)
50 mA
Dimensions
Case Width
5.75" (14.6 cm)
Case Depth
5" (12.7 cm)
Mounting Size
1/3 rack width
Package Dimensions
9.5" x 7" x 2.25"
Weight
Product Weight
0.825 lbs
Shipping Weight
1.215 lbs
Identifiers
Tariff Code
8543.70.9860
