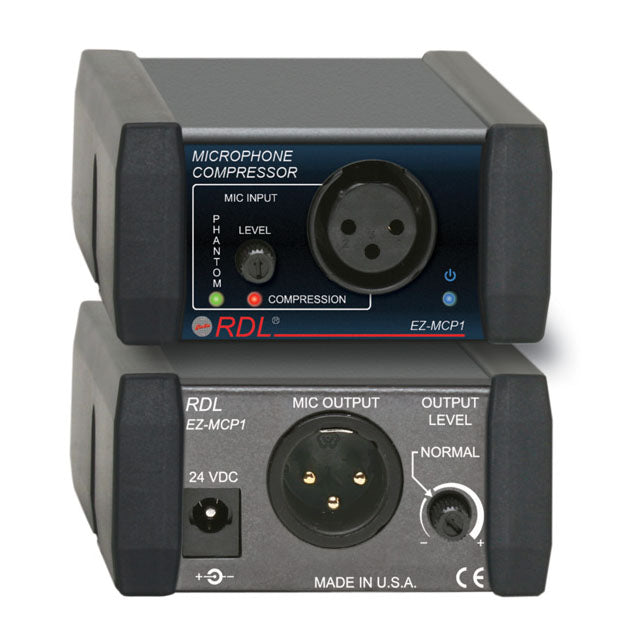

RDL EZ-MCP1 Microphone Compressor

RDL EZ-MCP1 Microphone Compressor

SoundPro Item: 69735 | Part Number: EZ-MCP1

$231.89
$309.18 $231.89
Your Price Sold out
MSRP: $309.18 | MAP: $231.89

Usually ships in 5-7 business days

  • Produces Consistent Levels from Any Microphone
  • Installs Between Microphone and Mixer/Amplifier
  • Improves Intelligibility with Fast Automatic Level Control
  • Controls Overloads that Cause Distortion and Clipping
  • Front-Panel Set-Up Trimmer with LED Indicator
  • Automatic Phantom Voltage Switching with LED
  • XLR Input and Output
  • Gold-Plated Connector Contacts
  • Simple Setup using LED Indicator
  • Exceptional Level Control Range (30 dB)
Log in or register for YOUR best price

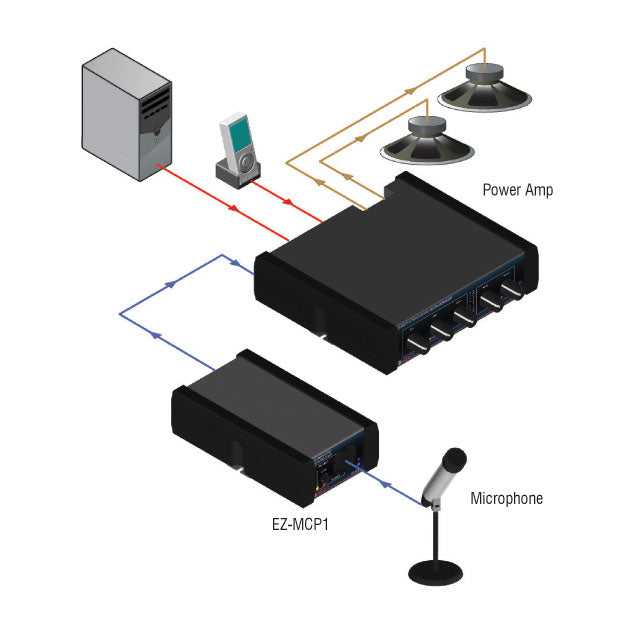

The EZ-MCP1 is an in-line microphone compressor that produces consistent audio levels despite wide variations (up to 30 dB) from the microphone. It is installed between a dynamic or condenser microphone and a mic-level mixer or amplifier input. The only setup required is a front-panel level trimmer that is adjusted during normal speech until the compression LED just begins to flash. A rear-panel output level trimmer is provided although it is typically left in the normal default position. Phantom voltage (24 V) is automatically switched on when the EZ-MCP1 output is connected to a mic jack that provides phantom voltage. The EZ-MCP1 improves sound quality and intelligibility by producing consistent audio levels and controlling overloads that produce distortion and clipping. It is used for recording, paging and public address in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms and commercial sound systems.

View full details

Specifications

Input:
Mic level, -60 to -30 dBu nominal
Input Impedance:
>1 kΩ balanced
Input / Output Connectors:
XLR
LEVEL Adjustment:
Single turn audio taper (front panel)
Minimum Input Level:
-60 dBu (to cross compressor threshold)@ max gain;-30 dBu (to cross compressor threshold) @ min gain
Maximum Input Level:
0 dBu @min gain
Output:
Mic level, -55 dBu to -30 dBu, adjustable; NORMAL: -45 dBu
Output Impedance:
150 Ω nominal, balanced
Output Level Adjustment:
Single turn audio taper (rear panel)
Frequency Response:
50 Hz to 20 kHz (± 0.5 dB)
THD+N:
< 0.5% (50 Hz to 20 kHz, at compressor threshold)
Compression :
30 dB, automatic adjusting attack and release times
Noise:
<-63 dB (below normal output level at comp. threshold, -56 dBu input)
CMRR:
> 55 dB (50 Hz to 120 Hz)
Phantom:
24 V (IEC 61938: 2013), present when phantom detected at module output
Indicators (3):
Red LED: COMPRESSION, indicates compressor activity;Green LED: PHANTOM, indicates phantom voltage present;Blue LED: POWER
24 Vdc power supply current:
55 mA (idle), 60 mA (max.), 70 mA (max. with phantom)
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.53 lbs.
Shipping Weight:
0.93 lbs.
Package Dimensions:
9.5 x 7 x 2.25 in.
