RDL EZ-MX4L Stereo Line-Level Audio Mixer - 4X1

RDL EZ-MX4L Stereo Line-Level Audio Mixer - 4X1

SoundPro Item: 77182 | Part Number: EZ-MX4L

$230.12
$306.83 $230.12
Your Price Sold out
MSRP: $306.83 | MAP: $230.12

Usually ships in 5-7 business days

  • Four Channel Line-Level Audio Mixer
  • Three Unbalanced Line Inputs on RCA Jacks
  • One Line Input on MINI or RCA Jacks
  • Unbalanced Output on MINI or RCA Jacks
  • Dual-LED VU Meter for Each Channel
  • Headroom Accomodates High Input Level
  • Exceptional Headroom for an Unbalanced Mixer
  • Gold Plated RCA Input and Output Jacks
  • Audio VU Metering Facilitates Adjustment
Log in or register for YOUR best price

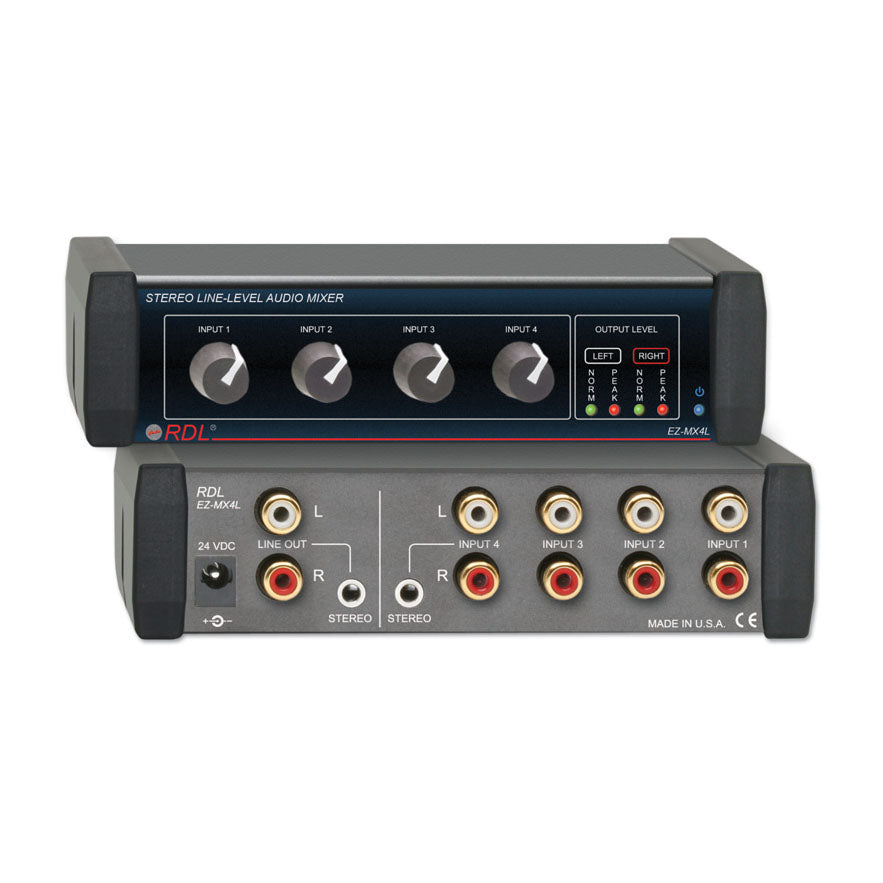

The EZ-MX4L is a stereo audio mixer with four line inputs. All line inputs connect through RCA jacks; one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The line output is available on stereo RCA jacks or on a MINI-jack. The EZ-MX4L is used in houses of worship, restaurants, clubs, meeting rooms, studios, home component systems and commercial sound systems.

View full details

Specifications

Inputs (5):
> 10 kΩ, -10 dBV nominal on RCA jacks (4) or Mini Jack (1), +20 dBV max.
Level controls (4):
Off to 12 dB gain
Outputs (2):
-10 dBV nominal on RCA jacks (1) or Mini jack (1, stereo), +16 dBV max.
Frequency Response:
10 Hz to 20 kHz (±0.01 dB, line)
THD+N:
< 0.05%
Crosstalk:
< -72 dB (1 kHz)
Metering:
Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Noise:
< -85 dB (below -10 dBV output)
24 Vdc power supply current:
30 mA (idle), 60 mA (max.)
Case dimensions:
5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size:
1/3 rack width
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.59 lbs.
Shipping Weight:
0.985 lbs.
Package Dimensions:
9.5 x 7 x 2.25 in.
