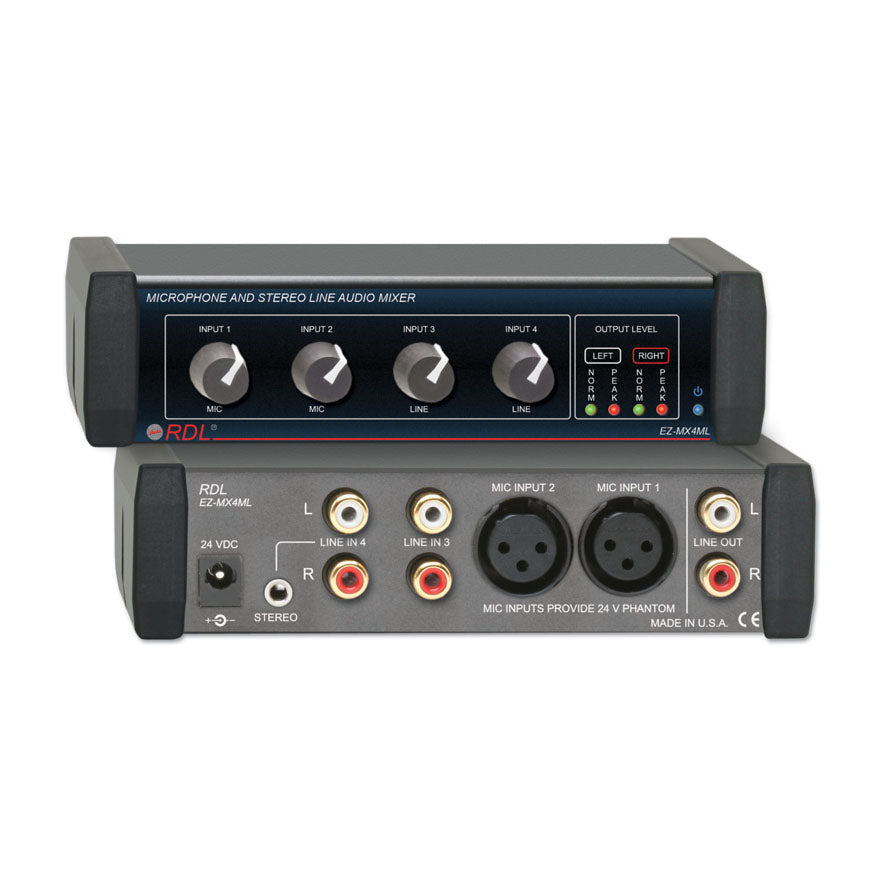

RDL EZ-MX4ML Mic and Stereo Line Audio Mixer - 4X1

RDL EZ-MX4ML Mic and Stereo Line Audio Mixer - 4X1

SoundPro Item: 69736 | Part Number: EZ-MX4ML

$244.12
$325.50 $244.12
Your Price Sold out
MSRP: $325.50 | MAP: $244.12

Usually ships in 5-7 business days

  • Four Input Mixer, Two Mic and Two Line Inputs
  • Two Balanced Microphone Inputs on XLR
  • One Unbalanced Line Input on RCA Jacks
  • One Line Input on MINI or RCA Jacks
  • Unbalanced Output on RCA Jacks
  • Microphone Inputs Provide Phantom Voltage
  • Dual-LED VU Meter for Each Channel
  • Optimized for Dynamic or Condenser Mics
  • Headroom Accomodates High Input Levels
  • Mic Headroom Increases at Lower Gain Settings
  • Gold Plated RCA Input and Output Jacks
Log in or register for YOUR best price

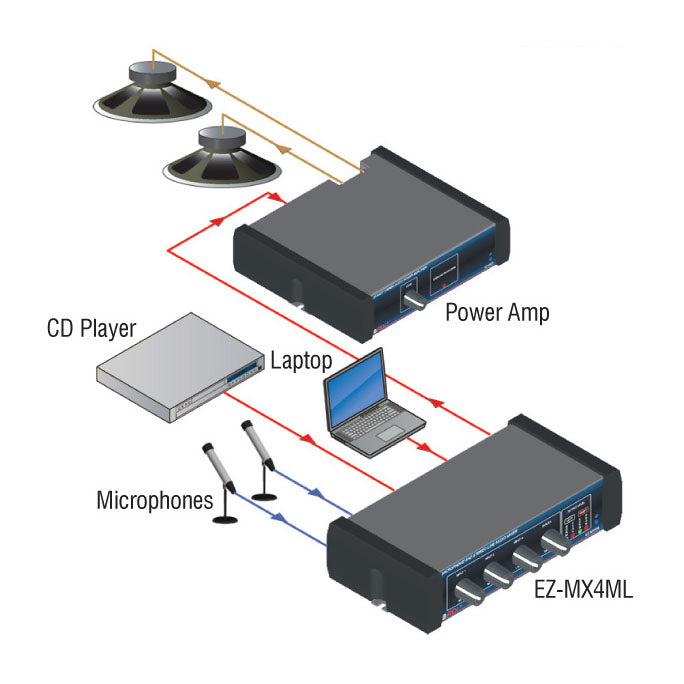

The EZ-MX4ML is a stereo audio mixer with two mic and two line inputs. Microphones connect through balanced XLR jacks that provide phantom voltage. Both line inputs connect through RCA jacks; one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The EZ-MX4ML is used in houses of worship, restaurants, clubs, meeting rooms, studios, broadcast and commercial sound systems.

View full details

Specifications

Mic inputs (2):
1.2 kΩ balanced on XLR jack, mic-level, -11 dBu max.
Line inputs (3):
> 10 kΩ, -10 dBV nominal on RCA jacks, -10 dBV nominal on RCA jacks or Mini Jack, +20 dBV max.
Level controls (4):
Off to 50 dB gain (mic), Off to 12 dB gain (line)
Output:
-10 dBV nominal on RCA jacks or Mini jack (stereo), +16 dBV max.
Frequency Response:
80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter), 10 Hz to 20 kHz (±0.01 dB, line input)
THD+N:
< 0.1% (20 Hz to 20 kHz, -50 dBu mic input), < 0.05% (20 Hz to 20 kHz, line input)
Crosstalk:
< -72 dB (1 kHz)
CMRR:
> -55 dB (20 to 20 kHz, mic input)
Metering:
Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Phantom:
24 V (IEC 61938: 2013)
Noise:
< -65 dB (below -10 dBV output, -50 dBu mic input), < -75 dB (below -10 dBV output, line input)
24 Vdc power supply current:
50 mA (idle), 80 mA (max.), 100 mA (max. with phantom)
Case dimensions:
5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size:
1/3 rack width
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.615 lbs.
Shipping Weight:
1.015 lbs.
Package Dimensions:
9.5 x 7 x 2.25 in.
