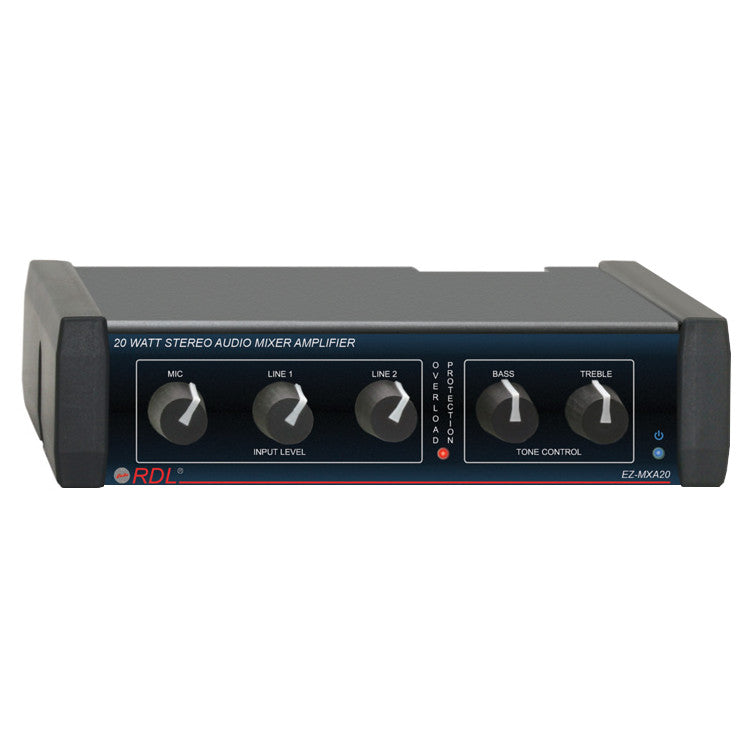

• RDL EZ-MXA20 20-Watt Stereo Audio Mixer-Amplifier with EQ

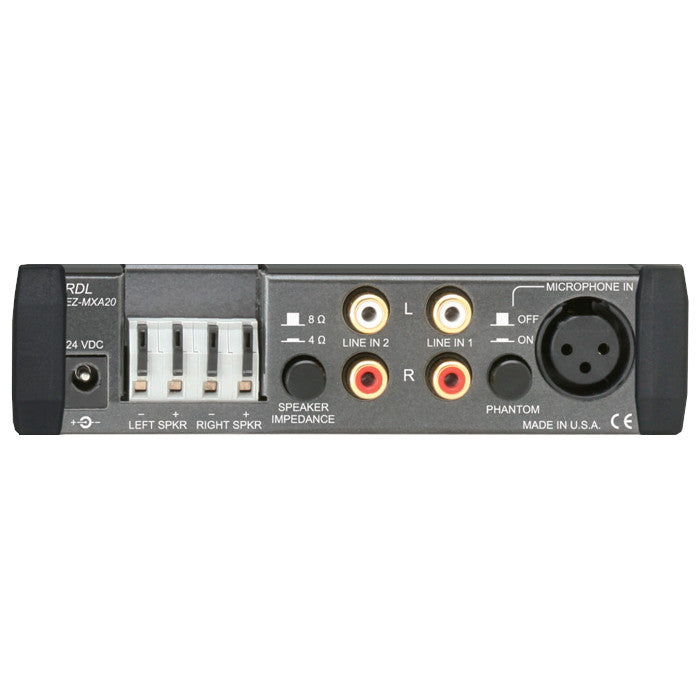

  • RDL EZ-MXA20 20-Watt Stereo Audio Mixer-Amplifier with EQ back
1 2

RDL EZ-MXA20 20W Stereo Audio Mixer Amplifier with EQ

RDL EZ-MXA20 20W Stereo Audio Mixer Amplifier with EQ

SoundPro Item: 77185 | Part Number: EZ-MXA20

$306.12
$408.16 $306.12
Your Price Sold out
MSRP: $408.16 | MAP: $306.12

Usually ships in 5-7 business days

  • Audio Amplifier with Mic and Line Input Mixer
  • 10 Watts RMS Per Channel into 8 O
  • 8 Watts RMS Per Channel into 4 O
  • Switch-Selectable Load Impedance on Rear Panel
  • Balanced Microphone Input on XLR
  • Unbalanced Line Inputs on RCA Jacks
  • Switch-Selectable Phantom on Mic Input
  • Bass and Treble Tone Control Equalization
  • Integral Overload Limiter with LED Indicator
  • Limiter Controls Overloads from Clipping
Log in or register for YOUR best price

The EZ-MXA20 is a stereo mixer amplifier with one mic input and two line inputs. Bass and treble tone controls are included. An integral compressor/limiter allows a higher sound output level without clipping than is possible using a standard amplifier. The output drives 4 or 8 ohm speakers. The EZ-MXA20 is used in houses of worship, restaurants, clubs, meeting rooms and commercial sound systems.

View full details

Specifications

Dimensions
Case Dimensions
5.75” (14.6 cm)W x 5” (12.7 cm)D
Mounting Size
1/3 rack width
Package Dimensions
9.5x7x2.25".
Weight
Shipping Weight
1.435 lbs.
WEEE Weight
1.015 lbs.
Electrical
THD+N
< 0.25%
Phantom
Switch-selectable 24 V (IEC 61938: 2013)
24 Vdc Power Supply Current
170 mA (idle), 1000 mA (max.)
Audio
Frequency Response
50 Hz to 20 kHz (±1.5 dB, mic input, 10 Watts), 35 Hz to 20 kHz (±1.5 dB, line input, 10 Watts)
Crosstalk
< -68 dB (1 kHz, line input)
Connectivity
Inputs (3)
1.2 kΩ balanced on XLR jack, mic-level, -55 dBu Min. (for 10 W out), -11 dBu max.(1) > 10 kΩ, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max. (2)
Outputs (2)
Left and Right, 10 Watts RMS into 8 Ω per channel or 8 Watts RMS into 4 Ω per channel, switch-selectable output impedance
Construction
Gain
Off to 74 dB (mic), Off to 32 dB (line)
General
Equalization
±10 dB @ 10 kHz, ±9 dB @ 80 Hz
Noise
< -70 dB (below 10 Watts, -10 dBV line input), < -65 dB (below 10 Watts, -50 dBu mic input)
Audio Performance
CMRR
> -55 dB (mic)
