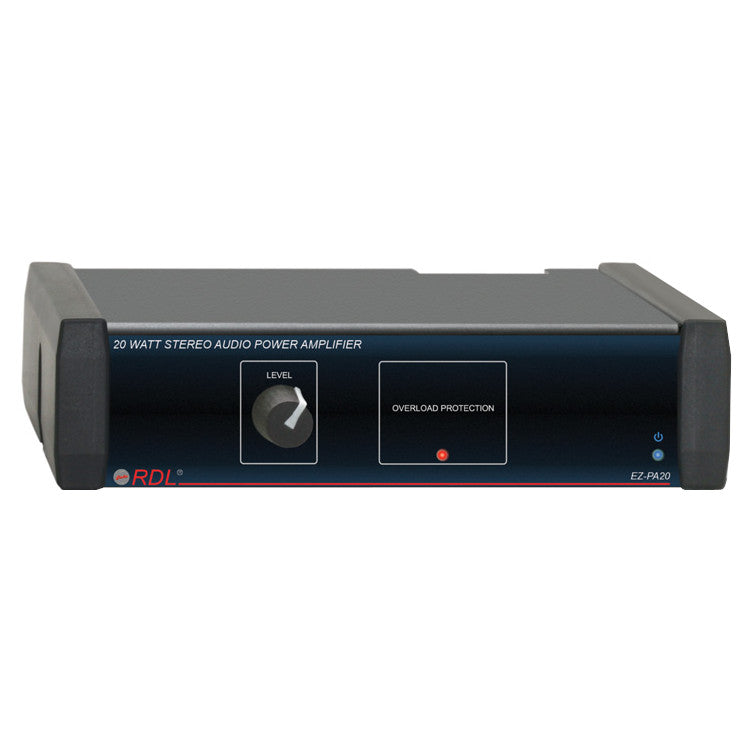

RDL EZ-PA20 20W Stereo Audio Amplifier

RDL EZ-PA20 20W Stereo Audio Amplifier

SoundPro Item: 69737 | Part Number: 001-1510

$192.28
$256.38 $192.28
Your Price Sold out
MSRP: $256.38 | MAP: $192.28

Usually ships in 5-7 business days

  • 20 Watts RMS Audio Power Amplifier
  • Output for 8 O Speaker
  • Integral Audio Compressor to Control Clipping
  • High Overall Operating Audio Level
  • Maximized Audio Level for Output Power
  • Audio Quality Superior to Standard Amplifiers
Log in or register for YOUR best price

The EZ-PA20 from RDL is a stereo audio amplifier with one line input and a front-panel volume control. An integral compressor/limiter allows a higher sound output level without clipping than is possible using a standard amplifier. The output drives 4 or 8 ohm speakers. The EZ-PA20 is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms and commercial sound systems.

View full details

Specifications

Dimensions
Case Dimensions
5.75” (14.6 cm)W x 5” (12.7 cm)D
Mounting Size
1/3 rack width
Package Dimensions
9.5 x 7 x 2.25 in.
Weight
Shipping Weight
1.365 lbs
Electrical
THD+N
< 0.25%
24 Vdc Power Supply Current
160 mA (idle), 1000 mA (max.)
Audio
Frequency Response
35 Hz to 20 kHz (±1.5 dB, 10 Watts)
Crosstalk
< -68 dB (1 kHz)
Connectivity
Input
> 10 kΩ, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max.
Outputs (2)
Left and Right, 10 Watts RMS into 8 Ω per channel or 8 Watts RMS into 4 Ω per channel, switchΩselectable output impedance
Construction
Gain
Off to 32 dB
General
Noise
< -70 dB (below 10 Watts)
Package Type
Cardboard Box
