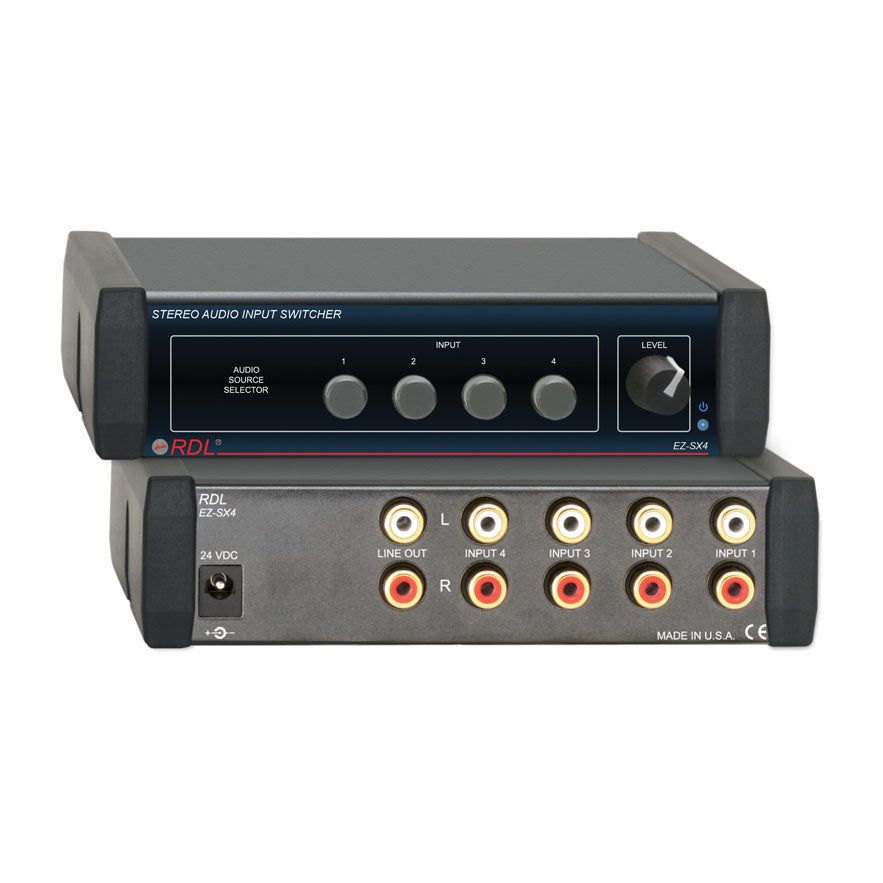

RDL EZ-SX4 Stereo Audio Input Switcher - 4X1

RDL EZ-SX4 Stereo Audio Input Switcher - 4X1

SoundPro Item: 69740 | Part Number: 001-1565

$223.91
$298.55 $223.91
Your Price Sold out
MSRP: $298.55 | MAP: $223.91

Usually ships in 5-7 business days

  • Four Input Source Selection
  • Unbalanced Stereo Audio Inputs and Output
  • Inputs and Line Output on Rear-Panel RCA Jacks
  • Line Output Level Controlled by Front-Panel Knob
  • Full-Size Interlocking Pushbuttons on Front Panel
  • Easy-to-Push Large Buttons
  • Solid-State Audio Switching
  • Switch Noise Cannot Affect Signal Quality
  • Select Source and Set Volume at One Location
  • Connect Directly to a Power Amp as the User Interface
  • Gold Plated RCA Input and Output Jacks
Log in or register for YOUR best price

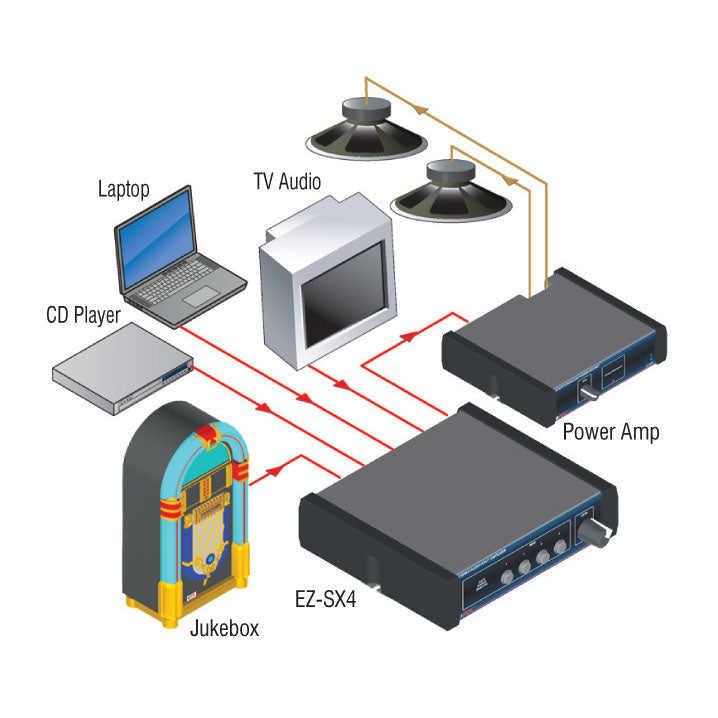

The EZ-SX4 is a stereo audio source selector with an output volume control that adjusts the line-level output. This unit is ideal as a four input source selector feeding an associated audio amplifier. The user can conveniently select an audio source and adjust the level on the front panel. The EZ-SX4 is used in stores, houses of worship, restaurants, clubs, home component systems and commercial sound systems.

View full details

Specifications

Inputs (4):
Stereo on dual RCA jacks, > 10 kΩ, -10 dBV nominal, +10 dBV max.
LEVEL control:
Off to +12 dB gain
Output:
Stereo on dual RCA jacks, line level, -10 dBV nominal, +17 dBV max.
Frequency Response:
10 Hz to 20 kHz (±0.01 dB)
THD+N:
< 0.02%
Crosstalk:
< -70 dB (1 kHz)
Noise:
< -80 dB (below -10 dBV)
24 Vdc power supply current:
30 mA (idle), 60 mA (max.)
Case dimensions:
5.75” (14.6 cm)W x 5” (12.7 cm)D
Mounting size:
1/3 rack width
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.795 lbs.
Shipping Weight:
1.2 lbs.
Package Dimensions:
9.5 x 7 x 2.25 in.
