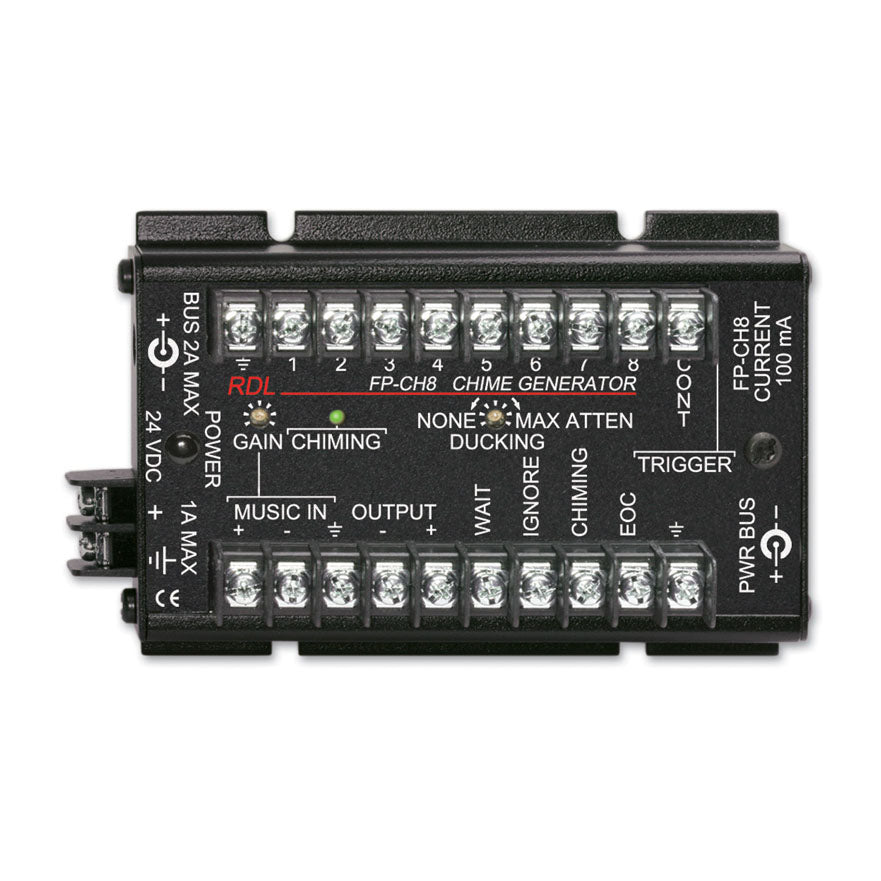

RDL FP-CH8 Chime Generator - 8 Electronic Chimes

RDL FP-CH8 Chime Generator - 8 Electronic Chimes

SoundPro Item: 69851 | Part Number: FP-CH8

$341.06
$454.75 $341.06
Your Price Sold out
MSRP: $454.75 | MAP: $341.06

Usually ships in 5-7 business days

  • 8 Individually Selectable Electronic Chimes
  • Selectable Single or Repeated Chime
  • Synthesized Bell Harmonics for Natural Sound
  • External Chime Actuation
  • Input for Background Music or Paging Audio
  • Automatic Ducking
Log in or register for YOUR best price
View full details

Specifications

Recording Input:
Input:
10 kΩ unbalanced
Input Level:
-20 dBV to 0 dBV
Frequency Response:
80 Hz to 12 kHz (± 1.5 dB)
Noise below +4 dBu:
< -65 dB
Music Input:
Input:
50 kΩ balanced or unbalanced
Input Level (for +4 dBu out):
-18 dBu bal. (-20 dBV unbal.) to +18 dBu bal. (+16 dBV unbal.)
Frequency Response:
30 Hz to 40 kHz (± 1 dB)
THD+N:
< 0.05% (1 kHz)
Noise below +4 dBu:
< -70 dB (unity gain)
CMRR:
>70 dB (50 to 150 Hz)
Output:
150 Ω balanced or 75 Ω unbal.
Output Level:
+4 dBu nominal
Control Inputs (2):
TRIG and DISABLE, Pull to ground, 1 mA
Control Outputs (2):
PLAYING and EOM, Open-collector @ 25 mA
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
24 Vdc @ 60 mA, Ground-referenced
Dimensions:
Height: 1.36 in. 3.46 cm; Width: 3.25 in. 8.26 cm; Length: 5.0 in. 12.7 cm
Package Type:
Cardboard Box
Tariff code:
8519.81.3020
WEEE weight:
0.64 lbs.
Package Dimensions:
4.375 x 7 x 2.25 in.
Shipping Weight:
0.87 lbs.
