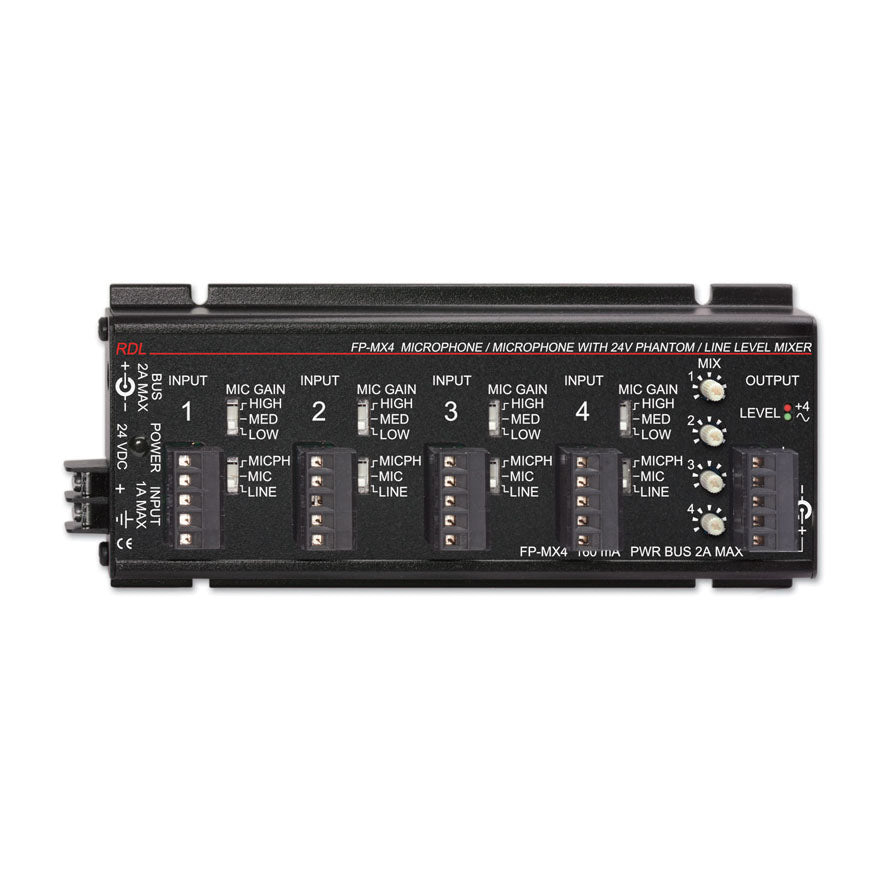

RDL FP-MX4 4 Channel Audio Mixer - Microphone or line input and output

RDL FP-MX4 4 Channel Audio Mixer - Microphone or line input and output

SoundPro Item: 69853 | Part Number: FP-MX4

$514.79
$686.39 $514.79
Your Price Sold out
MSRP: $686.39 | MAP: $514.79

Usually ships in 5-7 business days

  • Four Channel Audio Mixer
  • Balanced Microphone and Line Inputs
  • Balanced Microphone and Line Outputs
  • Switch-Selectable 24 V Mic Phantom
  • Three Switch-Selectable Mic Gain Ranges
  • Studio-Quality, Low-Noise Performance
  • Convenience of RDL® FLAT-PAKs™
Log in or register for YOUR best price
View full details

Specifications

TYPICAL PERFORMANCE
Microphone Inputs (4):
2 kΩ balanced, switchable 24 V phantom (IEC 61938: 2013)
Microphone Input Level:
Switch selectable ranges: -30 to -40 dBu, -40 to -50 dBu, < -50 dBu
Line Inputs (4):
10 kΩ balanced (may be wired unbalanced)
Line Input Level:
+4 dBu
Gain Adjustments (4):
Mic: Off to 65 dB gain (max. gain range); line: Off to 6 dB gain
Frequency Response:
Mic:
10 Hz to 30 kHz (± 0.25 dB)
Line:
10 Hz to 45 kHz (± 0.25 dB)
THD+N:
Mic:
< 0.012%
Line:
< 0.004%
Ambient Operating Environment:
0° C to 50° C
Tariff code:
8543.70.9860
Residual Noise (below +4dBu output):
4 line level sources (unity gain): < -84 dB (wideband)
40dB Gain:
Mic: -90 dB; all 4 mic level sources: < -82 dB (wideband); < -84 dB (“A” weighted)
50dB Gain:
Mic: -86 dB; all 4 mic level sources: < -72 dB (wideband); < -76 dB (“A” weighted)
60dB Gain:
Mic: -80 dB; all 4 mic level sources: < -65 dB (wideband); < -67 dB (“A” weighted)
Outputs (2):
Line: +4 dBu 150 Ω balanced; mic: -45 dBu 150 Ω balanced
Indicators (2)
Dual-LED VU meter (line-level output)
Power Requirement:
24 Vdc @ 160 mA, Ground-referenced
Overall Dimensions:
Height: 1.42 in. 3.61 cm,Width: 3.25 in. 8.26 cm,Length: 8.14 in. 20.68 cm
Package Dimensions:
3.375 x 8.5625 x 1.5 in.
Package Type:
Cardboard Box
WEEE weight:
0.99 lbs.
Shipping Weight:
1.235 lbs.
