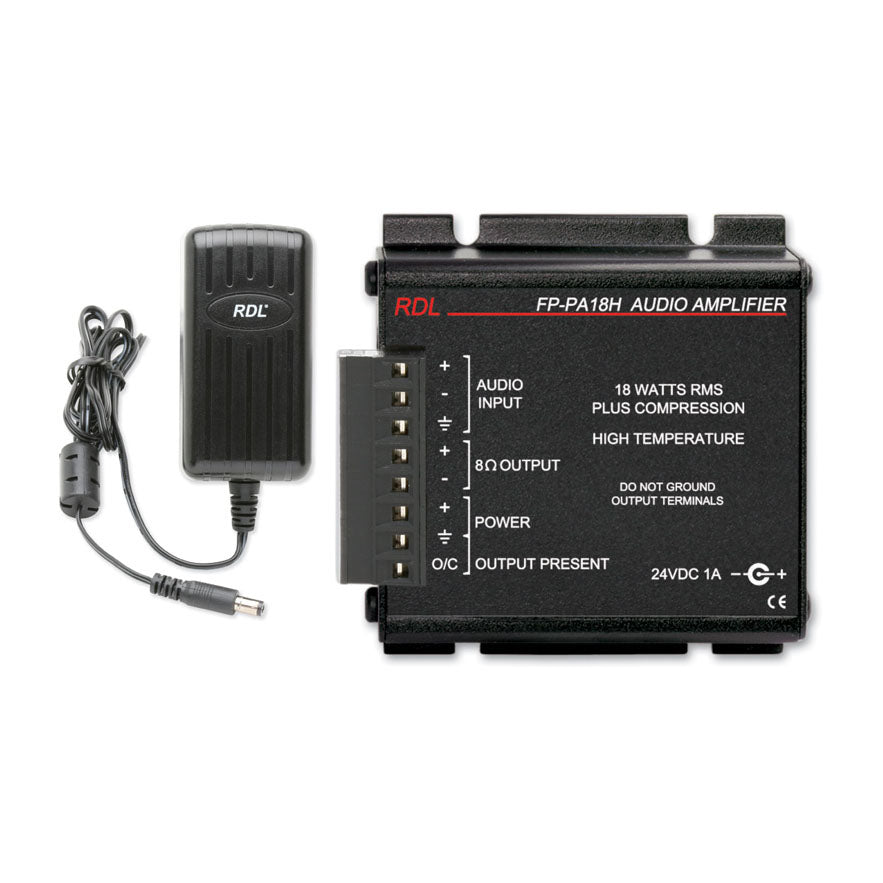

RDL FP-PA18H 18 W Mono Hi-Temp Audio Amplifier - 8 ohm, with Power Supply

RDL FP-PA18H 18 W Mono Hi-Temp Audio Amplifier - 8 ohm, with Power Supply

SoundPro Item: 77231 | Part Number: FP-PA18H

$265.15
$353.54 $265.15
Your Price Sold out
MSRP: $353.54 | MAP: $265.15

Usually ships in 5-7 business days

  • 18 Watts RMS into 8 Ω
  • Operation in Elevated Ambient Temperatures to 70°C
  • Input / Output Detachable Terminal Block Connections
  • Line Level Balanced or Unbalanced Input
  • Compressor/Limiter Controls Clipping
  • LED to Indicate Audio Compression Threshold
  • Compressor Produces Maximized Average Output Power
  • Audio Quality Superior to Standard Amplifiers
  • Ultracompact All Metal Construction
  • High Efficiency Class D Operation
  • Thermal and ShortCircuit Protection
Log in or register for YOUR best price
View full details

Specifications

Input:
Line level (+4 dBu nominal balanced; 10 dBV nominal unbalanced)
Input Impedance:
10 kΩ balanced bridging; 5 kΩ unbalanced
Gain Adjustment:
Single turn audio taper
Minimum Input Levels:
Balanced:\t18 dBu (to cross compressor threshold)Unbalanced: 20 dBV (to cross compressor threshold)
Maximum Input Levels:
Balanced:\t+23 dBuUnbalanced: +21 dBV
Frequency Response:
20 Hz to 20 kHz (+/ 1 dB)*
THD+N:
< 0.5% (20 Hz to 20 kHz)*
Compressor:
Threshold 3 dB below rated output, automatically adjusting attack and release times
CMRR:
> 45 dB (50 Hz to 3 kHz)
Noise:
< 72 dB (below 18 W RMS, +4 dBu input)
Output Power:
18 W RMS into 8 Ω
Output Circuit:
Class D
Output Signal Detector Threshold:
30 mW @ 20 Hz; 20 mW @ 30 Hz; 10 mW @ 50 Hz;5 mW @ 65 Hz through 20 kHz
Output Signal Detector Output:
Open collector, 5 mA
Ambient Operating Environment:
0° C to 70° C Maximum
Indicators (3):
Red LED: COMP LED indicates compressor activityGreen LED: OUTPUT ACTIVE (controlled by output signal detector)Blue LED: POWER on
24 Vdc power supply current:
80 mA (idle), 975 mA (max.), Ground referenced
Power Supply (included):
100 to 240 Vac, 50-60 Hz, 1A max.; 24 Vdc output to module
Dimensions:
Height: 1.15 in.(2.92 cm); Width: 3.25 in.(8.26 cm); Length: 3 in.(7.62 cm)
*measured at compressor threshold level equaling 12 W RMS output power
Package Type:
Cardboard Box
Tariff code:
8543.70.9910
WEEE weight:
0.755 lbs.
Shipping Weight:
1.03 lbs.
Package Dimensions:
4.375 x 7 x 2.25 in.
