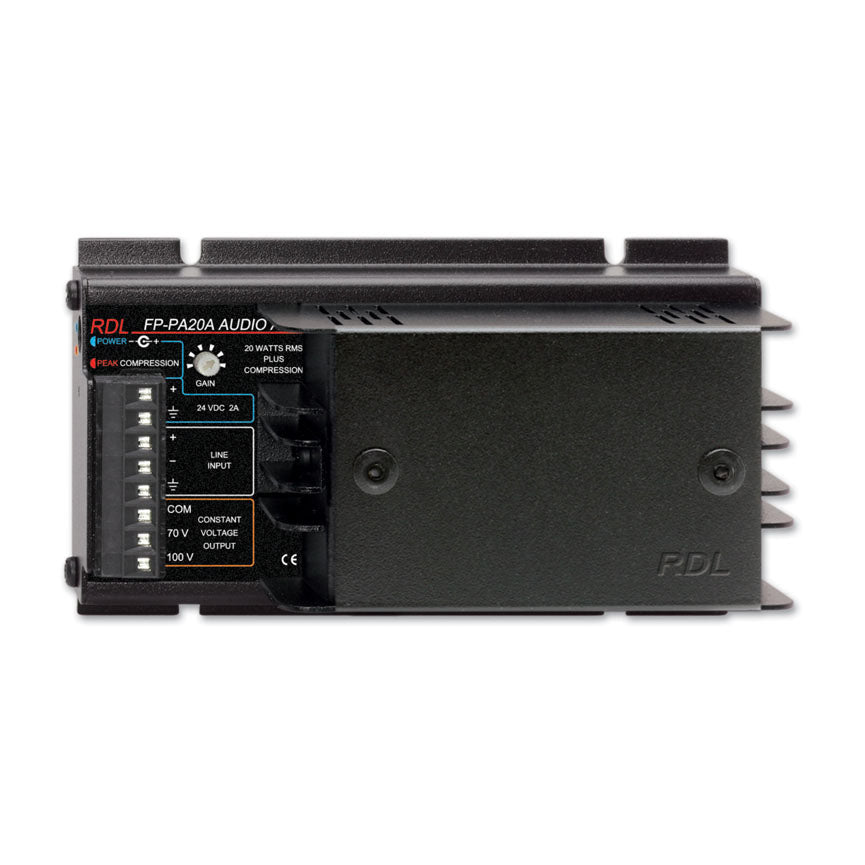

RDL FP-PA20A 20 W Mono Audio Amplifier - 70 V or 100 V

RDL FP-PA20A 20 W Mono Audio Amplifier - 70 V or 100 V

SoundPro Item: 77235 | Part Number: FP-PA20A

$219.28
$292.37 $219.28
Your Price Sold out
MSRP: $292.37 | MAP: $219.28

Usually ships in 5-7 business days

  • 20 Watts RMS Constant Voltage Amplifier
  • 70 V and 100 V Outputs
  • Integral Audio Compressor to Control Clipping
  • High Overall Operating Audio Level
  • Maximized Audio Level for Output Power
  • Audio Quality Superior to Standard Amplifiers
  • Plenum Rated per UL 2043 Standard
Log in or register for YOUR best price
View full details

Specifications

Indicators (2):
Red LED: PEAK LED indicates compressor activityGreen LED: Power ON
Ambient Operating Environment:
0° C to 30° C Max; 20° C Recommended
CMRR:
> 55 dB (50 Hz to 120 Hz)
Output Power:
20 W RMS @ 70 V or 100 V
Compressor:
Threshold 6 dB below rated output,automatic adjusting attack and release
Noise:
< -80 dB (below 20 W RMS)
Overall Dimensions:
Height: 2.3 in. (5.85 cm); Width: 3.25 in. (8.26 cm); Length: 6 in. (15.3 cm)
Gain Adjustment:
Single turn audio taper
Plenum Rating Standard:
UL 2043
THD+N:
< 0.1% (@ 1 kHz)*< 0.5% (50 Hz to 20 kHz)**measured at compressor threshold level equaling 4 W RMS output power
Frequency Response:
50 Hz to 20 kHz (± 3 dB)*
Maximum Input Levels:
Balanced: +23 dBuUnbalanced: +15 dBV
Minimum Input Levels:
Balanced: -26 dBu (to cross compressor threshold)Unbalanced: -28 dBV (to cross compressor threshold)
Input / Output Connector:
Detachable terminal block
Input Impedance:
20 kΩ balanced bridging; 10 kΩ unbalanced
Input:
Line level (+4 dBu bal; -10 dBV unbal)
Power Requirement:
24 Vdc @ 1650 mA, Ground referenced(for continuous RMS power output)24 Vdc @ 1000 mA, Ground referenced (for normal uncompressed audio)
Package Type:
Cardboard Box
WEEE weight:
2.18 lbs.
Shipping Weight:
2.395 lbs.
Tariff code:
8543.70.9910
Package Dimensions:
4.375 x 7 x 2.25 in.
