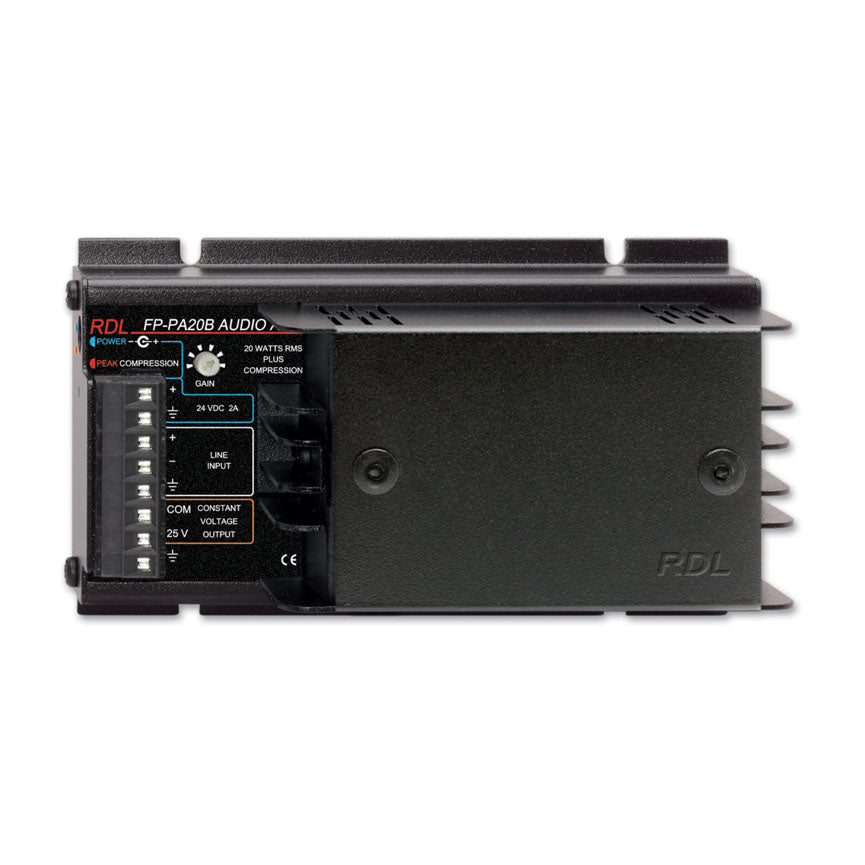

RDL FP-PA20B 20 W Mono Audio Amplifier - 25 V

RDL FP-PA20B 20 W Mono Audio Amplifier - 25 V

SoundPro Item: 77236 | Part Number: FP-PA20B

$211.41
$281.89 $211.41
Your Price Sold out
MSRP: $281.89 | MAP: $211.41

Usually ships in 5-7 business days

  • 20 Watts RMS Constant Voltage Amplifier
  • 25 V Output
  • Integral Audio Compressor to Control Clipping
  • High Overall Operating Audio Level
  • Maximized Audio Level for Output Power
  • Audio Quality Superior to Standard Amplifiers
Log in or register for YOUR best price
View full details

Specifications

Input:
Line level (+4 dBu bal; -10 dBV unbal)
Input Impedance:
20 kΩ balanced bridging; 10 kΩ unbal
Input / Output Connector:
Plug-in terminal block
Gain Adjustment:
Single turn audio taper
Minimum Input Levels:
Balanced: -26 dBu (to cross compressor threshold)Unbalanced: -28 dBV (to cross compressor threshold)
Maximum Input Levels:
Balanced: +23 dBuUnbalanced: +15 dBV
Overall Dimensions:
Height: 2.3 in. (5.85 cm); Width: 3.25 in. (8.26 cm); Length: 6 in. (15.3 cm)
Frequency Response:
50 Hz to 18 kHz (± 3 dB)*
THD+N:*measured at compressor threshold level equaling 4 W RMS output power.
< 0.1% (@ 1 kHz)*< 0.5% (50 Hz to 20 kHz)*
Noise:
< -80 dB (below 20 W RMS)
Compressor:
Threshold 6 dB below rated output, automatic adjusting attack and release
CMRR:
> 55 dB (50 Hz to 120 Hz)
Output Power:
20 W RMS @ 25 V
Ambient Operating Environment:
0° C to 30° C Max; 20° C Recommended
Indicators (2):
Red LED: PEAK LED indicates compressor activityGreen LED: Power ON
Power Requirement:
24 Vdc @ 1650 mA, Ground referenced(for continuous RMS power output)24 Vdc @ 1000 mA, Ground referenced (for normal uncompressed audio)
Package Type:
Cardboard Box
Tariff code:
8543.70.9910
WEEE weight:
2.195 lbs.
Shipping Weight:
2.41 lbs.
Package Dimensions:
4.375 x 7 x 2.25 in.
