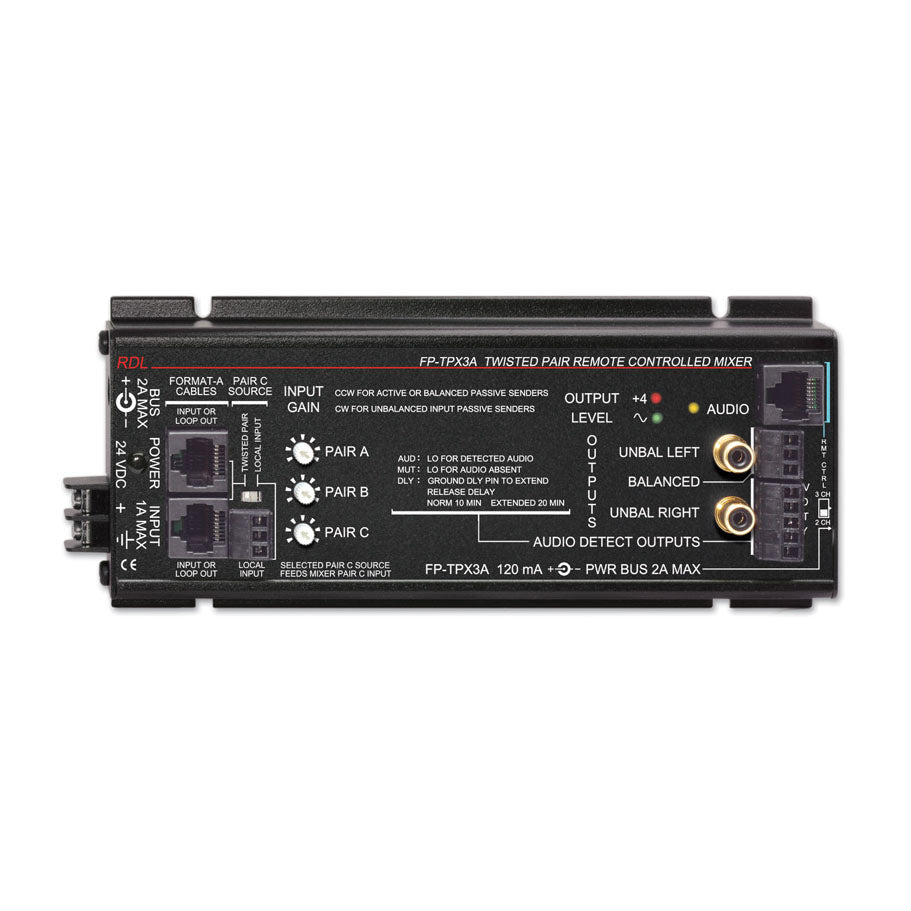

RDL FP-TPX3A Format-A Twisted Pair Remote Controlled Mixer

RDL FP-TPX3A Format-A Twisted Pair Remote Controlled Mixer

SoundPro Item: 77247 | Part Number: FP-TPX3A

$477.76
$637.01 $477.76
Your Price Sold out
MSRP: $637.01 | MAP: $477.76

Usually ships in 5-7 business days

  • 3-Channel Remote-Controlled Audio Mixer
  • VCA Level Control for Each Input Pair
  • Format-A Twisted Pair Inputs
  • One Detachable Balanced and Two RCA Unbalanced Mono Outputs
  • Twisted Pair Interconnection to Remote Control
  • Directly Controlled by RDL Remote Controls with 2 or 3 channels
  • Local Input Available if Only Two Twisted Pair Inputs Used
  • Paging Source May Connect to Local Input
  • Front-Panel Gain Trim Matches Active or Passive Format-A Senders
  • Dual-LED VU Meter Displays Mixer Output Level
  • Audio Presence Detector Controls Open-Collector Outputs
  • Detector Outputs Intended to Enable Power Amplifiers or System Power
  • Energy Savings Possible Using Detector Outputs
  • Selectable 10 or 20 Minute Detector Release Delay
Log in or register for YOUR best price
View full details

Specifications

Inputs (3):
RDL FORMAT-A; Balanced line level
Input Connections:
RJ45 (FORMAT-A); Detachable Terminal Block (Pair C)
Outputs (3):
150 Ω balanced; 1 kΩ unbalanced (2)
Output Connections:
Detachable Terminal Block (balanced); RCA Phono Jacks (unbalanced)
Output Level:
+4 dBu balanced, -10 dBV unbalanced
Frequency Response:
20 Hz to 20 kHz (± 0.25 dB)
THD+N:
< 0.05% (20 Hz to 20 kHz); <0.02% (1 kHz)
Noise below +4 dBu:
< -100 dB (all channels off); <-75 dB (any channel on); <-70 dB (all channels on)
Headroom above +4 dBu:
> 18 dB
CMRR:
> 80 dB (50 Hz to 150 Hz)
VCA attenuation:
>90 dB (each input, remote control volume off)
Indicators (3):
Dual-LED VU meter (2); Audio present (threshold = 35 dB below +4 dBu output)
Power Connections (3):
Terminal block; dc power jack (2)
Power Requirement:
24 Vdc @ 120 mA plus connected FORMAT-A sender currents
Overall Dimensions:
Height: 1.42 in. 3.61 cm; Width: 3.25 in. 8.26 cm; Length: 8.14 in. 20.68 cm
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.9 lbs.
Shipping Weight:
1.18 lbs.
Package Dimensions:
3.375 x 8.5625 x 1.5 in.
