RDL FP-UBC2 Unbalanced to Balanced Converter - 2 Channel

RDL FP-UBC2 Unbalanced to Balanced Converter - 2 Channel

SoundPro Item: 77248 | Part Number: FP-UBC2

$259.40
$345.87 $259.40
Your Price Sold out
MSRP: $345.87 | MAP: $259.40

Usually ships in 5-7 business days

  • Stereo Unbalanced to Balanced Audio Conversion
  • Connectorized Audio Converter
  • Output Level Trim
  • Low-Noise and Low-Distortion Conversion
  • Cabinet, Shelf or Rack Mounting
  • Convenience of RDL FLAT-PAKs
Log in or register for YOUR best price

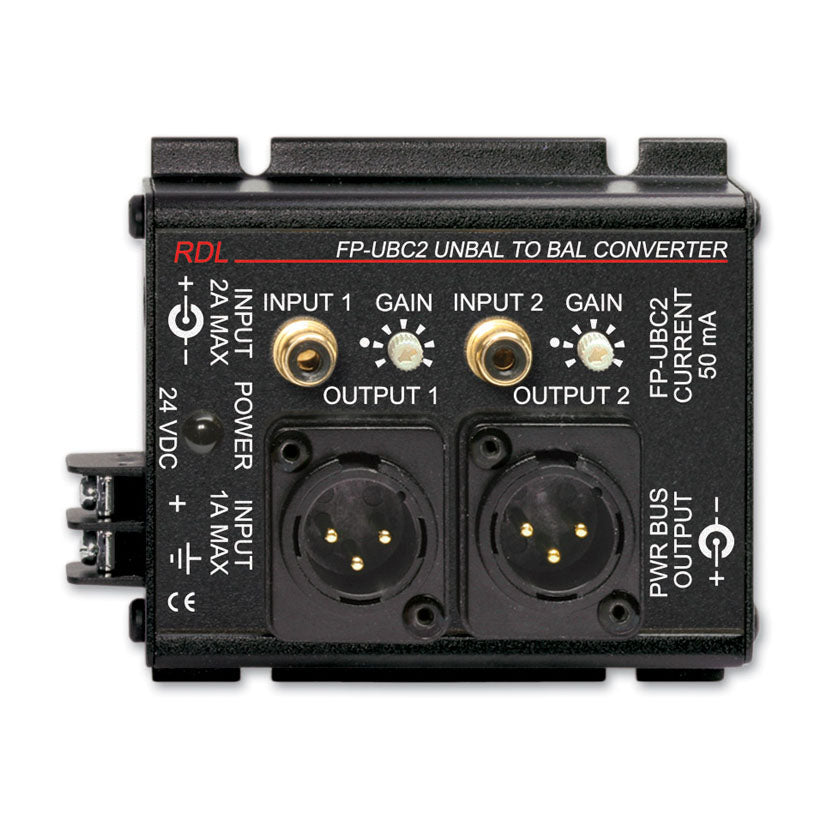

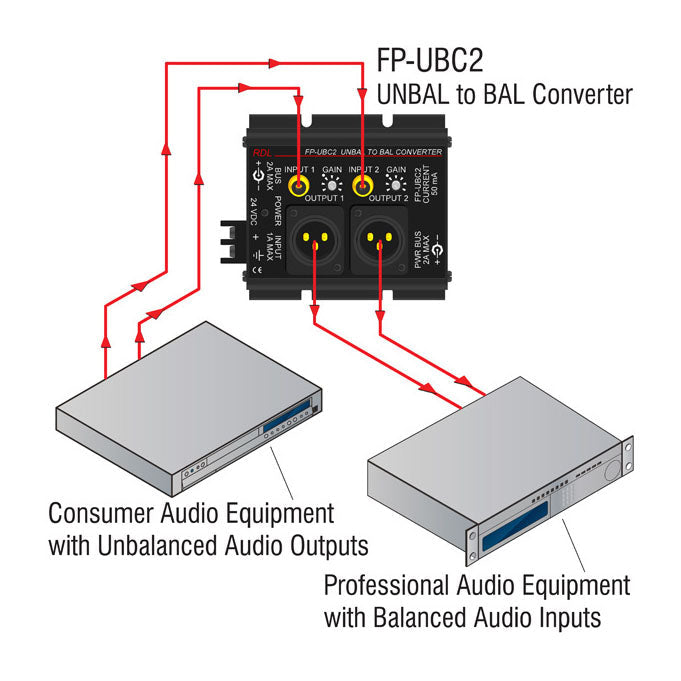

The FP-UBC2 is the ideal choice for connectorized conversion from unbalanced to balanced audio. This module features two identical channels. Gold-plated phono jacks are utilized for each unbalanced input channel. Each output is balanced, connected through an XLR jack. A gain trim potentiometer is provided for each channel. The normal gain setting is indicated for the trimming potentiometer. This setting produces a +4 dBu balanced output for a -10 dBV unbalanced input. The gain is adjustable -5 dB to +10 dB from the normal gain. Therefore, a +4 dBu output signal is possible from input signals ranging from -20 dBV to -5 dBV.

View full details

Specifications

Amps per FP-UBC2:
2 identical circuits (stereo or dual mono operation)
Gain:
-5 dB to +10 dB (adjustable relative to +4 dBu output for -10 dBV input); (separate controls for each channel)
Input Level:
-20 dBV to -5 dBV (for +4 dBu output)
Input Impedance:
10 kΩ
Input Configuration:
Unbalanced
Output Impedance:
150 Ω balanced, drives 600 Ω or 10 kΩ lines
Output Configuration:
Balanced or unbalanced
Frequency Response:
20 Hz to 40 kHz (± 0.25 dB)
THD+N:
< 0.05%; typ. 0.01% (1 kHz)
IMD:
< 0.02%
Output Level:
+4 dBu
Headroom:
> 18 dB (at rated output level of +4 dBu)
Noise:
< -85 dB referred to +4 dBu (20 Hz to 20 kHz)
Crosstalk:
Better than 70 dB (20 Hz to 20 kHz); < -80 dB (typ. 1 kHz)
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 50 mA
Dimensions:
Height: 1.29 in. 3.28 cm; Width: 3.25 in. 8.26 cm; Length: 4.07 in. 10.34 cm
Package Type:
Cardboard Box
WEEE weight:
0.575 lbs.
Shipping Weight:
0.725 lbs.
Tariff code:
8543.70.9860
Package Dimensions:
3.625 x 4.625 x 2.125 in.
