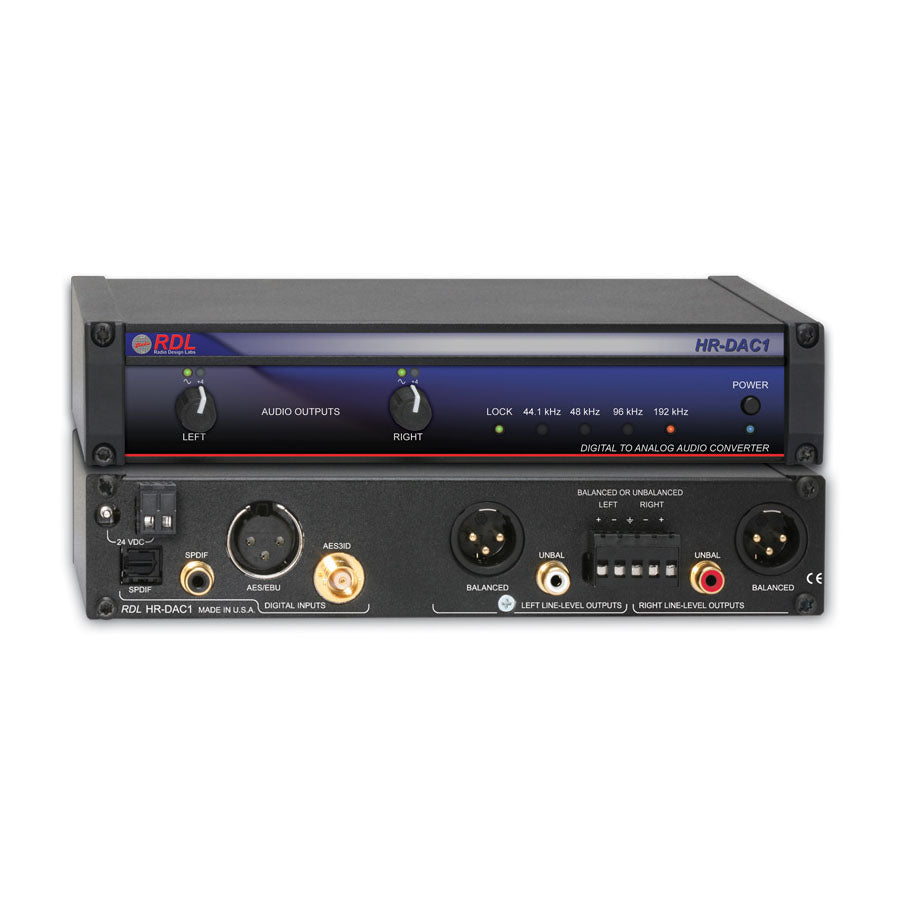

RDL HR-DAC1 Digital to Analog Converter - 24 bit 192 kHz

RDL HR-DAC1 Digital to Analog Converter - 24 bit 192 kHz

SoundPro Item: 77281 | Part Number: HR-DAC1

$701.35
$935.14 $701.35
Your Price Sold out
MSRP: $935.14 | MAP: $701.35

Usually ships in 5-7 business days

  • Broadcast Quality Audio Digital to Analog Conversion
  • Input: AES/EBU, Coaxial or Optical S/PDIF, AES-3ID
  • Outputs: Balanced and Unbalanced Stereo Audio
  • Adjustable Audio Output Gain Trim
  • Dual-LED Audio Output Level VU Metering
  • Operation Up to 24 bits, 192 kHz
  • Exclusive Sure-Lok™ Auto-Recovery Sentinel
  • Transformer Isolated AES/EBU Input
  • Automatic Sample Rate Detection with Indicators
  • Digital Signal Lock Indicator for Valid Inputs
Log in or register for YOUR best price
The HR-DAC1 is the ideal choice in installations requiring high quality analog audio from an AES/EBU, AES-3ID or S/PDIF digital audio source. The HR-DAC1 automatically detects a valid input on any of the four input jacks: S/PDIF optical, S/PDIF coaxial, AES-3ID or AES/EBU. The AES/EBU input is 110 Ω terminated; the S/PDIF coaxial and AES-3ID jacks are 75 Ω terminated. A front-panel LOCK LED indicates the presence of a valid digital audio source without any phase-lock or bit errors. Sample rates from 32 kHz to 192 kHz are supported with front-panel LEDs to indicate standard digital audio rates of 44.1 kHz, 48 kHz, 96 kHz and 192 kHz. Professional operating stability is achieved with RDL's proprietary Sure-Lok™ latch-up auto recovery. The digital input is converted to stereo audio using high speed delta-sigma conversion, digital filtering and filtered wideband analog drivers. The high performance, low-noise converters are supplemented with digitally controlled analog gating to produce unparalleled performance. The LEFT and RIGHT output levels are individually adjustable using front-panel knobs. A dual-LED VU meter displays the output level of each channel to facilitate level adjustments. Balanced +4 dBu audio outputs are provided on a rear-panel detachable terminal block and on XLR jacks. Unbalanced -10 dBV outputs are provided on phono jacks. The HR-DAC1 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power jack. A front-panel power switch is provided.
View full details

Specifications

Ambient Operating Environment:
0° C to 55° C
Standards:
AES3-2003, IEC60958
Indicators (10):
POWER LED, blue; LOCK LED, green;RATE: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz;dual-LED VU meters, left and right
Dynamic Range:
> 110 dB (resolution 24-bit unweighted)
Residual Noise:
< -100 dB (10 to 20 kHz, -120 dBFS input)< -100 dB (10 to 20 kHz, -120 dBFS input)< -110 dB (locked to digital input, digital audio off)
Phase L to R, R to L:
±0.15° (5 Hz to 20 kHz)
Output Level:
Adjustable OFF to +24 dBu (0 dBFS); Left and Right
Crosstalk:
< -100 dB (5 Hz to 3 kHz); < -90 dB (3 kHz to 20 kHz)
Harmonic attenuation:
2nd: -105 dB; 3rd: -108 dB; 4th, 6th: -115 dB;5th, 7th: -110 dB; above 7th: <-115 dB, typical
THD+N:
< 0.002% (20 Hz to 20 KHz, below +22 dBu)
Frequency Response:
5 Hz to 24 kHz (± 0.2 dB into high impedance load)
Resolution:
16 to 24 bits
Sample Rate:
32 kHz to 192 kHz
Outputs (6):
Left and Right: 150 Ω bal. XLR and terminal block, +4 dBu; -10 dBV unbal phono jack
Inputs (4):
110 Ω AES/EBU XLR, transformer isolated; S/PDIF optical;75 Ω S/PDIF coaxial phono jack; 75 Ω AES-3ID BNC
Power Requirement:
GROUND-REFERENCED 24 Vdc @ 175 mA
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
2.225 lbs.
Shipping Weight:
2.575 lbs.
Package Dimensions:
9.5 x 7 x 2.25 in.
