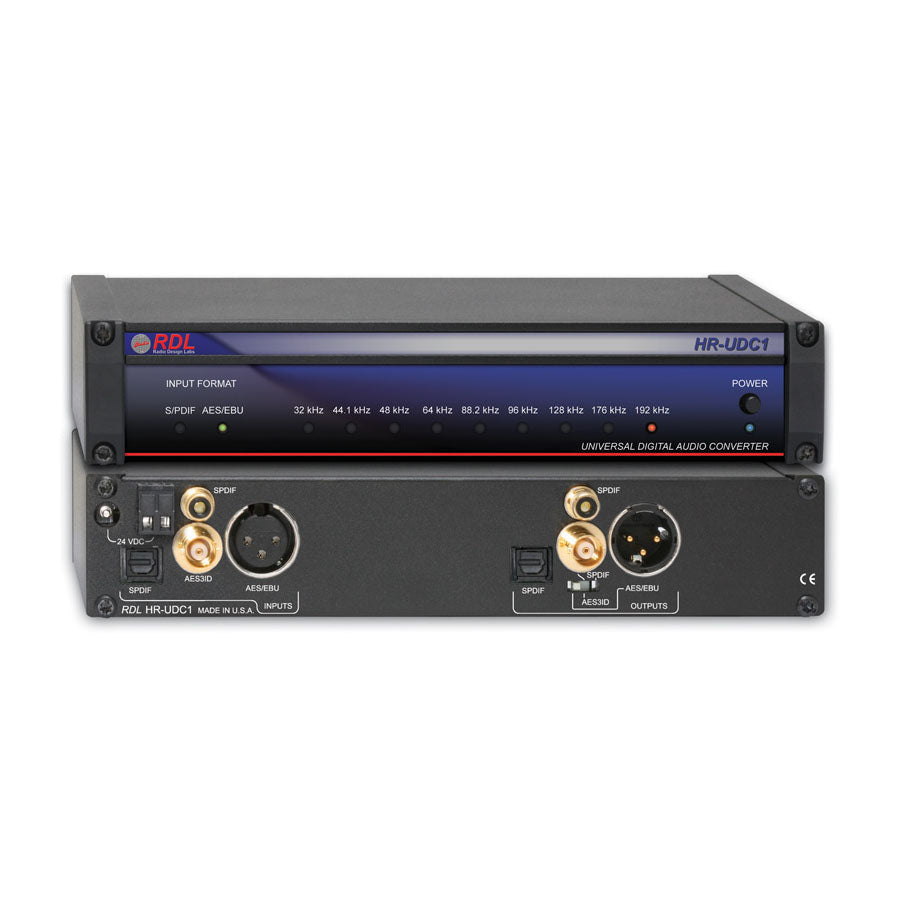

RDL HR-UDC1 Universal Digital Audio Converter - AES/EBU, coaxial or optical S/PDIF, AES-3ID

RDL HR-UDC1 Universal Digital Audio Converter - AES/EBU, coaxial or optical S/PDIF, AES-3ID

SoundPro Item: 77296 | Part Number: HR-UDC1

Regular price $723.41
Regular price $964.54 Sale price $723.41
Your Price Sold out
MSRP: $964.54 | MAP: $723.41

Usually ships in 5-7 business days

  • Data Conversion Between S/PDIF and AES/EBU
  • Electrical Conversion Between Digital Audio Formats
  • Input: AES/EBU, Coaxial or Optical S/PDIF, AES-3ID
  • Output: AES/EBU, Coaxial or Optical S/PDIF, AES-3ID
  • Operation Up to 24 bits, 192 kHz
  • Exclusive Sure-Lok™ Auto-Recovery Sentinel
  • Transformer Isolated AES/EBU Input and Output
  • Digital Signal Reclocking
  • Sample Rate Indicator
  • Digital Signal Lock Indicator for Each Input Format

The HR-UDC1 is the ideal choice in installations where digital audio signals must be converted between consumer and professional formats. The input and output support AES/EBU, S/PDIF and AES-3ID formats. The HR-UDC1 automatically detects a valid input on any of the four input jacks: S/PDIF optical, S/PDIF coaxial, AES-3ID or AES/EBU. The input is decoded, re-clocked and retransmitted to the output. All pro/consumer, emphasis, and sampling frequency bits common to both S/PDIF and AES/EBU standards are inserted in the output data stream. Front-panel LEDs display the digital audio format and sample rate of a valid source received without any phase-lock or bit errors. The output is switch-selectable to provide an AES/EBU, S/PDIF coaxial or optical, or AES-3ID output. The switch enables the appropriate output jack and any required electrical and data format conversion. The AES/EBU input and output are 110 Ω terminated; the S/PDIF coaxial and AES-3ID jacks are 75 Ω terminated. The HR-UDC1 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power jack. A front-panel power switch is provided. RDL's proprietary Sure-Lok auto recovery supervision monitors possible causes of latch-up and reinitiates digital signal lock, bringing a high level of stability to digital audio signal distribution under the variety of conditions encountered in professional environments.

View full details

Specifications

Ambient Operating Environment:
0° C to 50° C
Indicators (12):
POWER LED; INPUT FORMAT LEDs (2); Sample Rate LEDs (9)
Standards:
AES3-2003, IEC60958
Resolution:
16 to 24 bits
Sample Rate:
32 kHz to 192 kHz
Selector:
Rear-panel output format selector
Outputs (4):
110 Ω AES/EBU XLR, transformer isolated; S/PDIF optical; 75 Ω S/PDIF coaxial phono jack; 75 Ω AES-3ID BNC
Inputs (4):
110 Ω AES/EBU XLR, transformer isolated;S/PDIF optical; 75 Ω S/PDIF coaxial phono jack; 75 Ω AES-3ID BNC
Power Requirement:
GROUND-REFERENCED 24 Vdc @ 50 mA
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
1.98 lbs.
Shipping Weight:
2.335 lbs.
Package Dimensions:
9.5 x 7 x 2.25 in.
