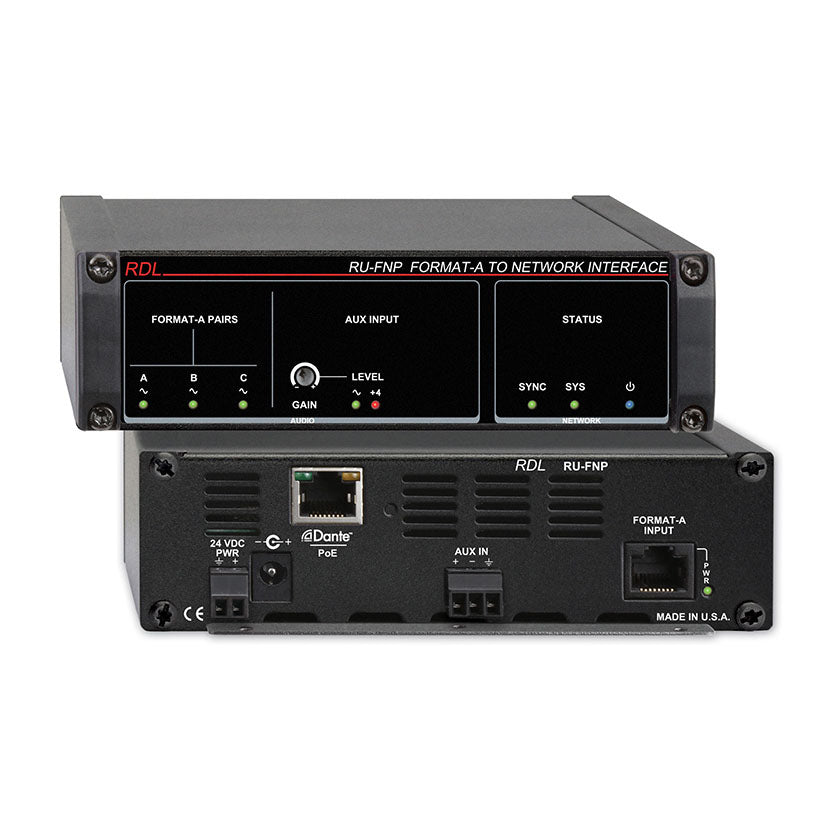

RDL RU-FNP Format-A to Network Interface

RDL RU-FNP Format-A to Network Interface

SoundPro Item: 117716 | Part Number: RU-FNP

$796.55
$1,062.07 $796.55
Your Price Sold out
MSRP: $1,062.07 | MAP: $796.55

Usually ships in 5-7 business days

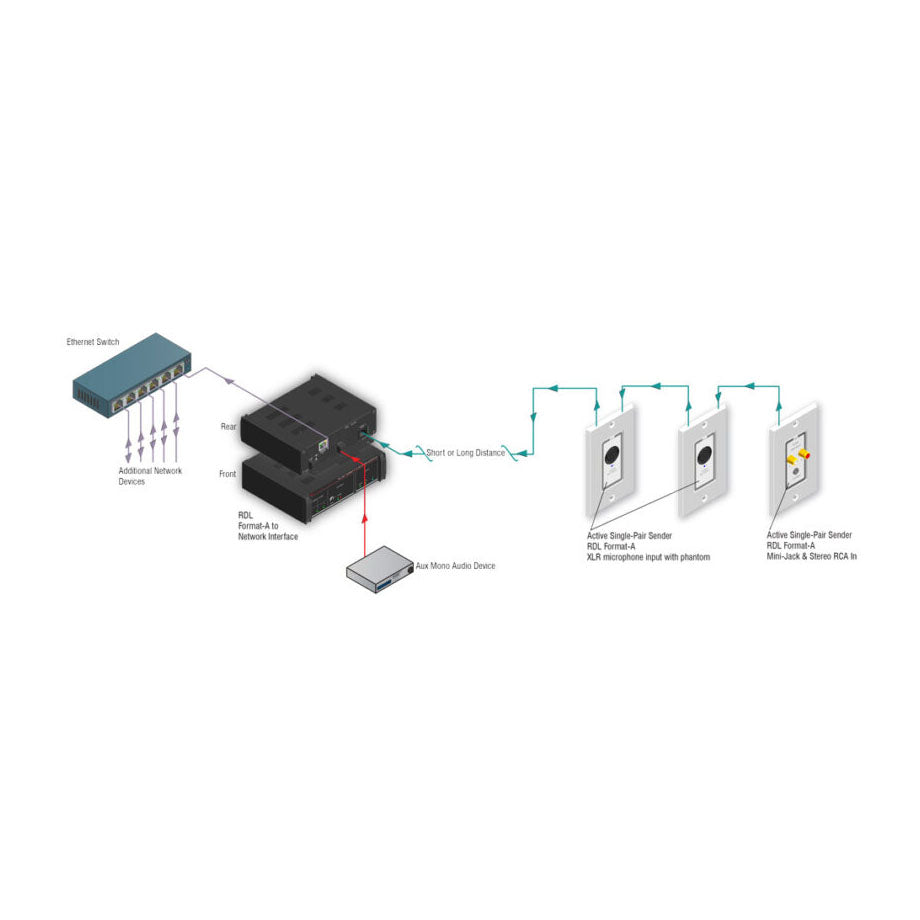

  • Converts RDL Format-A and Aux Source to Four Dante Network Channels
  • Easy Installation with Format-A Connections on RJ45 through CATx Cable
  • Format-A Audio Sources from Pairs A, B and C Converted to Dante
  • Fourth Dante Audio Channel Fed from Unbalanced or Balanced Aux Line Input
  • Front-Panel Gain Adjustment with Dual-LED VU Meter for Aux Input
  • Signal LEDs Indicate Audio for Each of the Three Format-A Pairs
  • High Resolution 24 Bit Analog to Digital Conversion
  • Legendary RDL Analog Filtering Enhances Superb Audio Performance
  • Powers Remote Format-A Senders through Format-A Input Jack
  • LED Indicators Show Network Sync Status
  • Normal or Hot-Standby Operation from PoE (Model RU-FNP)
  • Compatible with Wide Array of RDL Format-A Active and Passive Senders
  • Equipped for Rack Mounting or Surface Mounting
Log in or register for YOUR best price
View full details

Specifications

Network Connector:
RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:
Dante
Transmission Rate:
100 Mbps
Sample Rates Supported:
44.1 kHz, 48 kHz (default)
Bit Depth Supported:
24 bits
Audio Operating Levels:
-18 dBFS = +4 dBu
Format-A Input:
RDL Format-A RJ45
Format-A Signal Pairs Used (3):
A, B, C
Frequency Response:
20 Hz to 20 kHz (± 0.5 dB)
THD+N:
< 0.1%
Noise below +4 dBu:
< -75 dB
CMRR:
> 90 dB (50 Hz to 120 Hz, any input pair)
Crosstalk:
< 80 dB (20 Hz to 20 kHz)
Headroom above +4 dBu:
> 18 dB
AUX Input
Input:
Balanced, detachable terminal block
Input Impedance:
> 20 kΩ
Input Level for +4 dBu:
-16 dBu to +12 dBu, +22 dBu maximum
Frequency Response:
20 Hz to 20 kHz (± 0.75 dB)
THD+N:
< 0.1%
Noise below +4 dBu:
< -75 dB
CMRR:
> 60 dB (50 Hz to 120 Hz)
Crosstalk:
< 80 dB (20 Hz to 20 kHz)
Headroom above +4 dBu:
> 18 dB
Indicators (11):
Power In (1); Power Out (1); Audio Signal LEDs (3), AUX Dual-LED VU Meter (2), Network Sys and Sync (2), Ethernet Link and Speed (2)
Power Connections (2):
Power Jack; Detachable Terminal Block
Ambient Operating Environment:
0° C to 40° C
Power Requirement:
24 Vdc @ 100 mA plus connected loads, or PoE (RU-FNP)
PoE (RU-FNP):
Class 0, IEEE 802.3af
Dimensions:
5.8" (15 cm) W; 1.7" (4.3 cm) H; 5.2" (13.2 cm) D
Package Type:
Cardboard Box
Package Dimensions:
6 x 6 x 2.625 in.
Shipping Weight:
1.61 lbs. (RU-FN); 1.61 lbs. (RU-FNP)
WEEE weight:
1.35 lbs. (RU-FN); 1.35 lbs. (RU-FNP)
Tariff code:
8543.70.9100
