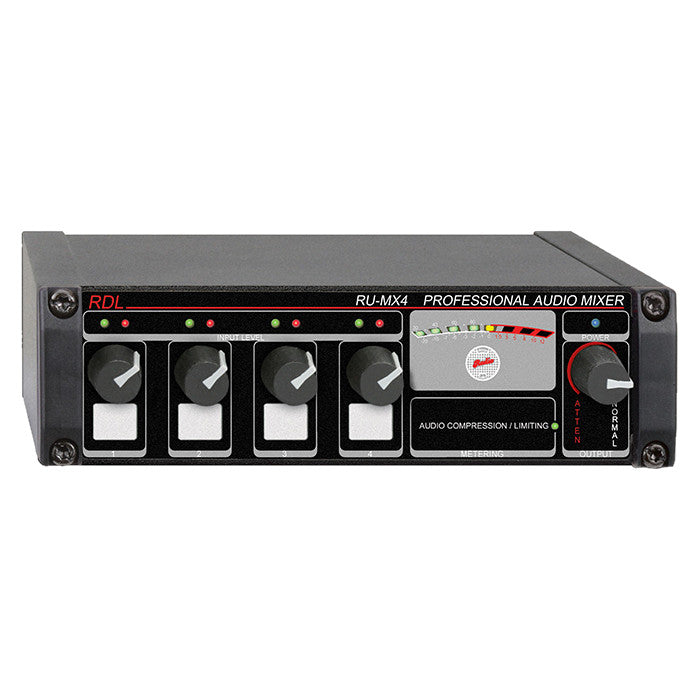

• RDL RU-MX4 Professional 4 Input Mic / Line Mixer

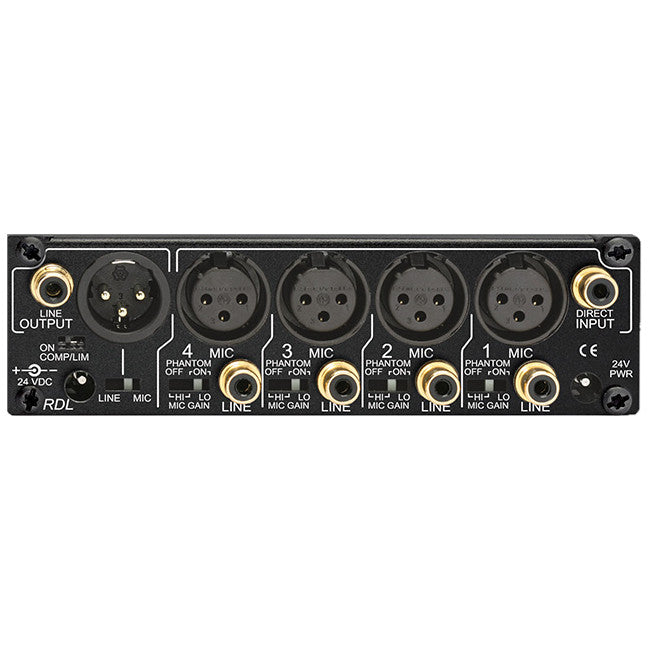

  • RDL RU-MX4 Professional 4 Input Mic / Line Mixer back
1 2

RDL RU-MX4 Professional 4 Input Mic/Line Mixer

RDL RU-MX4 Professional 4 Input Mic/Line Mixer

SoundPro Item: 77392 | Part Number: RU-MX4

$474.67
$632.89 $474.67
Your Price Sold out
MSRP: $632.89 | MAP: $474.67

Usually ships in 5-7 business days

  • Four Channel Audio Mixer with Expansion Capability
  • XLR Microphone Inputs, Phono Jack Line Inputs
  • Switchable 24 V Phantom for Each Mic Input
  • Mic or Line XLR Output, Switchable
  • Unbalanced Line Output and Direct Input
  • Integral Compressor/Limiter, Switchable
  • Studio-Quality, Low-Noise Performance
Log in or register for YOUR best price

The RU-MX4 is the ideal choice in many applications where a combination of balanced mic and/or unbalanced line-level signals needs to be mixed. Balanced connections use XLR connectors. Unbalanced signals are coupled through phono jacks. Each of the four inputs can accept either a balanced XLR mic or an unbalanced line-level input. 24V phantom is individually switch selectable for each mic input. The unbalanced phono jack LINE OUTPUT from one RU-MX4 may connect to the unbalanced input of other equipment, or may be connected to the DIRECT input of another RU-MX4 to expand mixing capabilities. The RU-MX4 provides one balanced output, switchable for mic or line level. Audio levels are adjustable on the front panel. Each input channel is equipped with a front-panel dual-LED VU meter that follows standard VU ballistics. The final mix is displayed on an LED string VU meter featuring a visually comfortable arc motion. A rear-panel switch allows the soft-knee compressor to be switched in or out. A factory installed output isolation transformer is available by ordering the RU-MX4T.

View full details

Specifications

Dimensions
Package Dimensions
6 x 6 x 2.625 in.
Weight
Shipping Weight
1.63 lbs.
WEEE Weight
1.38 lbs.
Electrical
40dB Gain, Phantom on
Mic: -79 dB; < -73 dB (All 4 mic level sources)
Power Requirement
GROUND-REFERENCED, 24 Vdc @ 150 mA
Audio
Gain Adjustments (5)
Mic: Off to 62 dB gain (PHANTOM OFF ONHI gain); Off to 46 dB gain (PHANTOM ON LO gain); Line: Off to 27 dB gain
50dB Gain
Mic: -79 dB; < -73 dB (All 4 mic level sources)
60dB Gain
Mic: -70 dB; < -64 dB (All 4 mic level sources)
Connectivity
Microphone Inputs (4)
2 kΩ balanced, switchable 24 V phantom (IEC 61938: 2013)
Mic Input Level for +4 Dbu Output
-58 to −20 dBu (PHANTOM OFF or ONHI gain); -41 to −4 dBu (PHANTOM ON LO gain)
Line Inputs (4)
2 kΩ unbalanced
Line Input Level for +4 Dbu Out
-25 dBV to +20 dBV, -10 dBV nominal
Output Attenuator
0 dB to infinity
Outputs (2)
+4 dBu 150 Ω bal. (switchable to MIC level -45 dBu); -10 dBV unbalanced
Residual Noise (wideband, Below +4 Dbu output)
Indicators (18) Dual-LED VU meter for each input; COMP/LIMIT active LED; POWER LED; LED audio mix meter, 0 dB = +4 dBuVU (dB): -20, -10, -6, -2, 0, +3; Peak Reading (dB): +8,+12
General
Mic
80 Hz to 30 kHz (± 1.5 dB), <-10 dB @ 20 Hz (integral high-pass filter)
Line
20 Hz to 30 kHz (± 0.25 dB)
Ambient Operating Environment
0° C to 50° C
RF
Unity Gain
< -84 dB (4 Line level sources)
