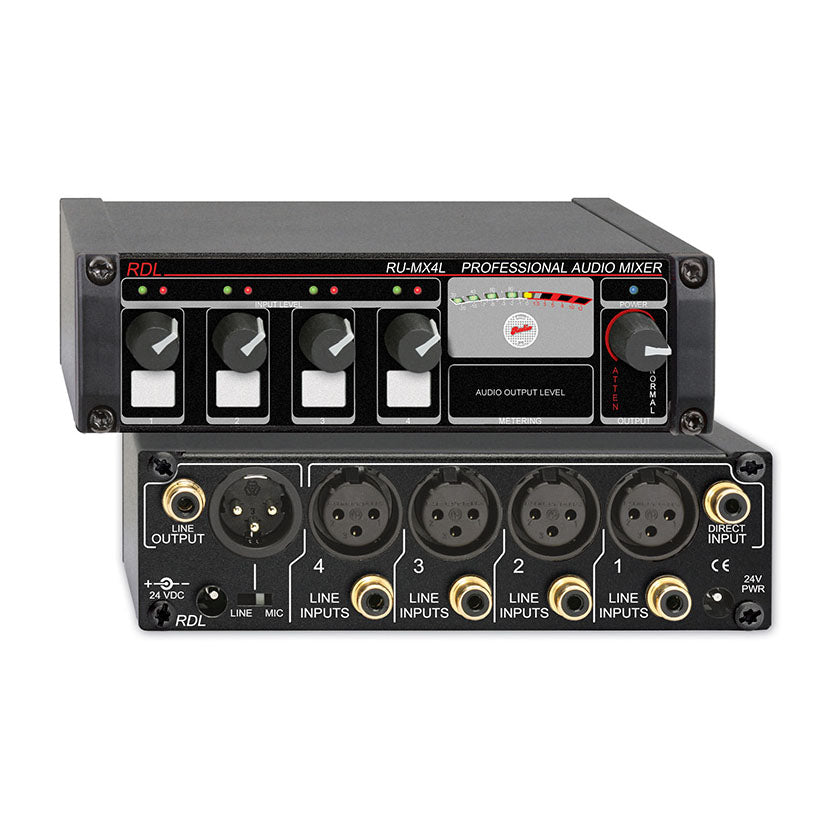

RDL RU-MX4L Professional 4 Channel Line Level Mixer - Microphone and line Output

RDL RU-MX4L Professional 4 Channel Line Level Mixer - Microphone and line Output

SoundPro Item: 77393 | Part Number: RU-MX4L

$408.40
$544.53 $408.40
Your Price Sold out
MSRP: $544.53 | MAP: $408.40

Usually ships in 5-7 business days

  • Four Channel Line-Level Audio Mixer
  • XLR Balanced, Phono Jack Unbalanced Inputs
  • Mic or Line XLR Output, Switchable
  • Unbalanced Line Output and Direct Input
  • Studio Quality, Low-Noise Performance
  • Expansion Bussing Capability
  • Additional Line Inputs Bussed to an RU-MX4
  • Output Isolation Transformer (RU-MX4LT)
Log in or register for YOUR best price

The RU-MX4L is the ideal choice in many applications where a combination of balanced and/or unbalanced line-level signals needs to be mixed. Balanced connections use XLR connectors. Unbalanced signals are coupled through phono jacks. Each of the four RU-MX4L inputs can accept either a balanced XLR line-level input or an unbalanced line-level phono jack input. The unbalanced phono jack LINE OUTPUT from one RU-MX4L may connect to the unbalanced input of other equipment, or may be connected to the DIRECT input of another RU-MX4L or an RU-MX4 to expand mixing capabilities. The RU-MX4L provides one balanced output, switchable for mic or line level. Audio levels are adjustable on the front panel. Each input channel is equipped with a front-panel dual-LED VU meter that follows standard VU ballistics. The final mix is displayed on an LED string VU meter featuring a visually comfortable arc motion. A factory installed output isolation transformer is available by ordering the RU-MX4LT.

View full details

Specifications

Balanced Line Inputs(4):
20 kΩ balanced bridging
Balanced Line Input Level:
-13 to +22 dBu for +4 dBu output
Unbalanced Line Inputs (4):
2 kΩ unbalanced
Unbalanced Line Input Level:
-25 dBV to +20 dBV for +4 dBu output; -10 dBV nominal
Gain Adjustments (4):
Balanced Line: Off to 17 dB gain
Unbalanced Line: Off to 27 dB gain
Output Attenuator:
0 dB to infinity
Frequency Response:
20 Hz to 30 kHz (± 0.25 dB)
THD+N:
< 0.01%
Residual Noise (below +4dBu output):
4 line level sources (unity gain): < -82 dB (wideband)
Outputs (2):
+4 dBu 150 ohm balanced (switchable to MIC level -45 dBu); -10 dBV unbalanced
Indicators (17):
Dual-LED VU meter for each input; POWER LED;LED audio mix level meter, 0 dB = +4 dBu
VU ballistic: -20 dB, -10 dB, -6 dB, -2 dB, 0 dB, +3 dB;
Peak reading: +8 dB,+12 dB
Ambient Operating Environment:
0° C to 50° C
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 150 mA,
Package Type:
Cardboard Box
WEEE weight:
1.36 lbs.
Shipping Weight:
1.625 lbs.
Tariff code:
8543.70.9860
Package Dimensions:
6 x 6 x 2.625 in.
