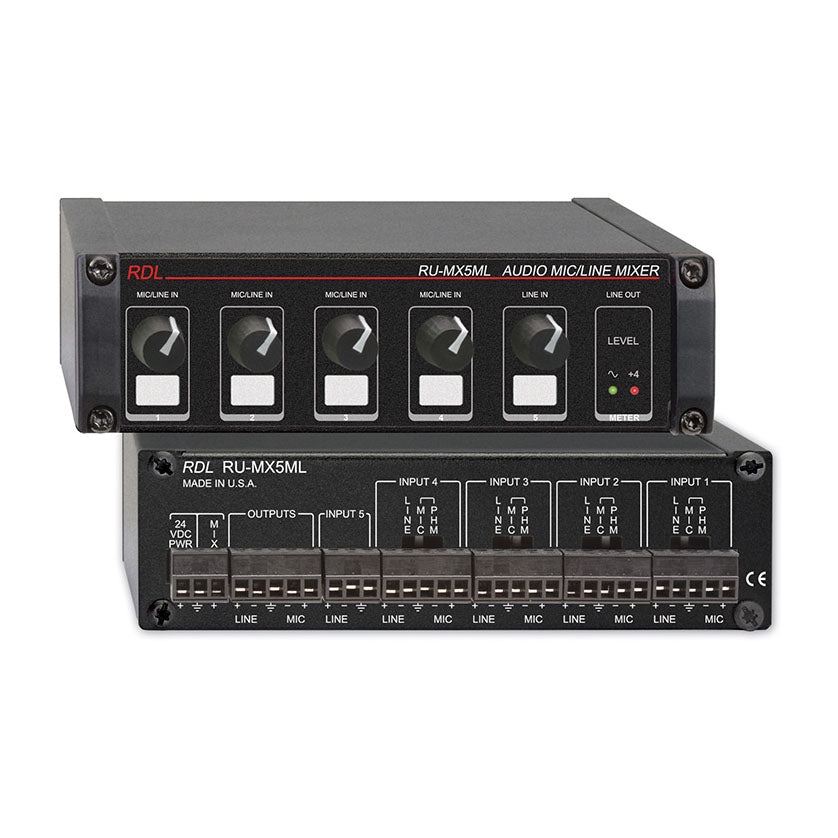

RDL RU-MX5ML 5 Channel Mic/Line Audio Mixer with Phantom Power

RDL RU-MX5ML 5 Channel Mic/Line Audio Mixer with Phantom Power

SoundPro Item: 77397 | Part Number: RU-MX5ML

$397.10
$529.47 $397.10
Your Price Sold out
MSRP: $529.47 | MAP: $397.10

Usually ships in 5-7 business days

  • Mic or Line Level Audio Mixer
  • Five Channel Audio Mixer with Expansion Capability
  • Inputs and Outputs on Detachable Terminal Blocks
  • Switchable 24 V Phantom for Each Mic Input
  • Balanced Mic and Line Outputs
  • Expansion Bussing Capability
  • Output Level dual-LED VU Metering
  • Studio-Quality, Low-Noise Performance
Log in or register for YOUR best price
View full details

Specifications

Inputs (6):
4 selectable mic or line level; 1 line level; 1 direct MIX; detachable terminal block
Input Impedance:
Mic: >1.2 kΩ balanced; Line: >10 kΩ balanced
Maximum Input Level:
Mic: -20 dBu; Line: +24 dBu
Phantom:
Switch-selectable 24 V (IEC 61938: 2013)
Gain:
Mic: Off to 65 dB; Line: Off to 15 dB
Outputs (2):
Mic: -45 dBu balanced; Line: +4 dBu balanced; detachable terminal block
Output Impedance:
150 Ω balanced
Frequency Response:
Mic: 80 Hz to 40 kHz (±1 dB, < -6 dB at 20 Hz with integral high-pass filter); Line: 10 Hz to 35 kHz (± 0.5 dB)
THD+N:
Mic: < 0.03%; Line: <0.003%
Headroom:
20 dB (above +4 dBu output)
Noise:
< -70 dB below +4 dBu output (20 Hz to 20 kHz, all mic channels at 50 dB gain; or one mic channel active at 60 dB gain); < -90 dB below +4 dBu (20 Hz to 20 kHz, all channels off)
CMRR:
Mic: > -65 dB (10 Hz to 10 kHz); Line: > -45 dB
Metering:
Dual-LED VU Meter (calibrated to +4 dBu)
Dimensions:
Height: 1.7 in. 4.3 cm; Width: 5.8 in. 15.0 cm; Depth: 4.8 in. 12.2 cm
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 75 mA (120 mA max. including phantom); detachable terminal block
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
1.13 lbs.
Shipping Weight:
1.385 lbs.
Package Dimensions:
6 x 6 x 2.625 in.
