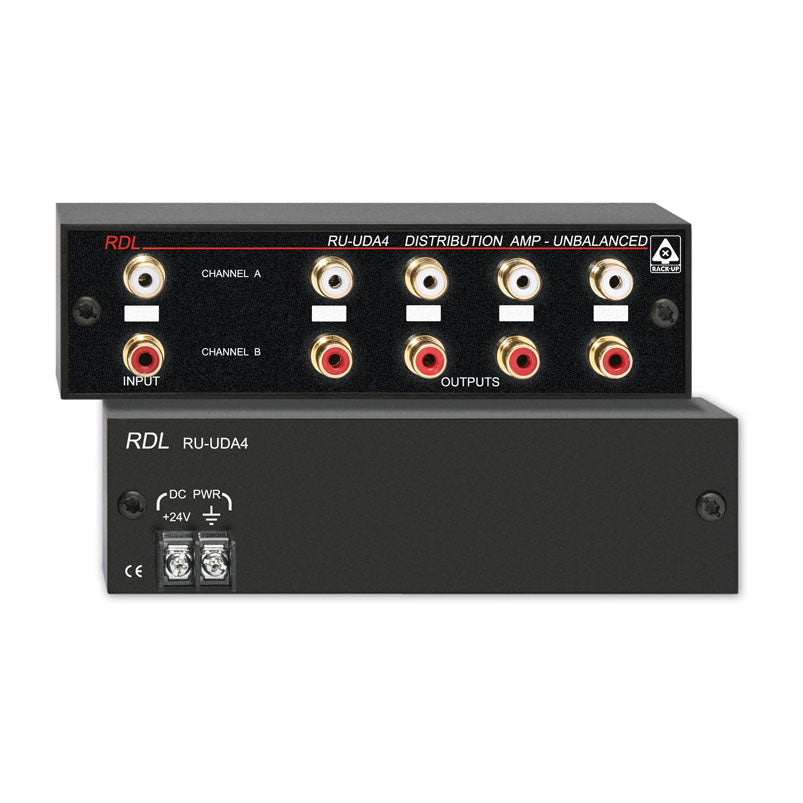

RDL RU-UDA4 Stereo Audio Distribution Amplifier - 2x4 - RCA jacks

RDL RU-UDA4 Stereo Audio Distribution Amplifier - 2x4 - RCA jacks

SoundPro Item: 77421 | Part Number: RU-UDA4

$252.33
$336.43 $252.33
Your Price Sold out
MSRP: $336.43 | MAP: $252.33

Usually ships in 5-7 business days

  • Stereo Unbalanced Audio Distribution
  • Unity Gain on Both Channels
  • Four Outputs per Channel
  • Stand Alone or Rack-Mountable
  • Exceptional Audio Performance
  • 1/3 Rack, High-Density Rack Mounting
Log in or register for YOUR best price

The RU-UDA4 is the optimum choice where connectorized, unbalanced line-level distribution is needed. This unit features two separate, isolated channels. The RU-UDA4 may be used in stereo applications, or as two individual monaural distribution amplifiers. The input signals are buffered through output line drivers, providing four separate line-level unbalanced outputs for each of the two inputs. The RU-UDA4 performance is tailored around industry standard -10 dBV input/output levels. Excellent frequency response, phase response, low-distortion and low-noise performance combine to produce the audio clarity and precision for which RDL® products are well known.

View full details

Specifications

Input Connectors (2):
Phono
Input Impedance:
10 kΩ unbalanced
Output Connectors (8):
4 per channel, phono
Output Impedance:
100 Ω unbalanced
Channels:
2 (left & right; may be used independently as 2 separate mono amplifiers)
Frequency Response:
5 Hz to 50 kHz (± 0.5 dB)
THD+N:
< 0.020%
Noise:
< -90 dB (below -10 dBV)
Crosstalk:
< -90 dB (1 kHz);
< -80 dB (10 kHz)
< -75 dB (20 kHz)
Headroom:
> 28 dB
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 25 mA
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.755 lbs.
Shipping Weight:
0.995 lbs.
Package Dimensions:
4.375 x 7 x 2.25 in.
