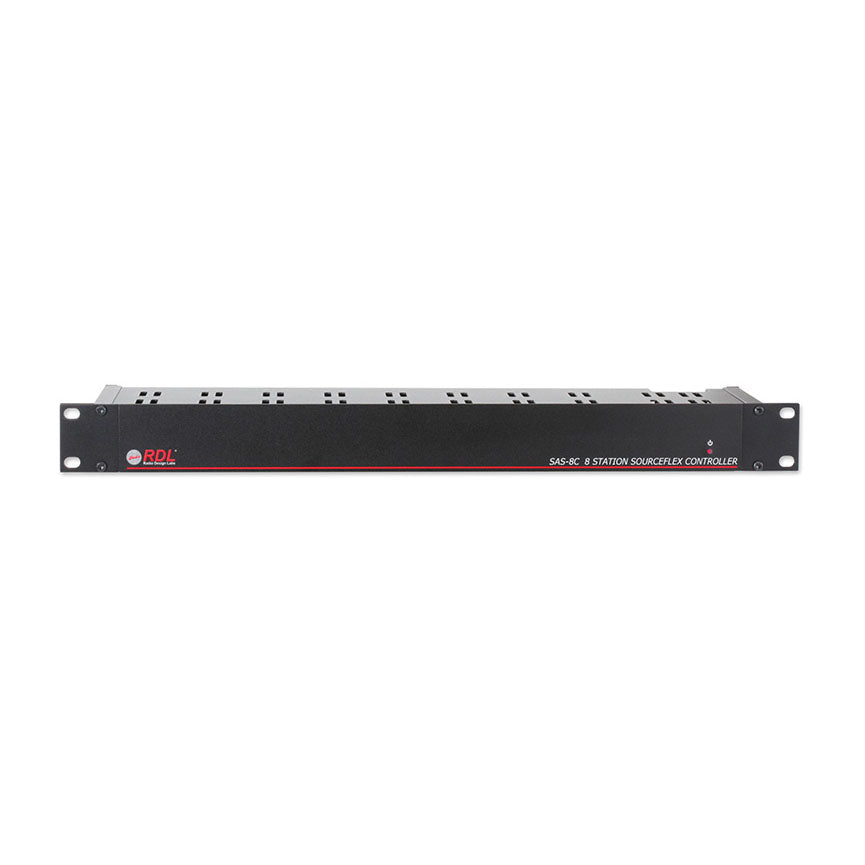

RDL SAS-8C 8 Station Audio Controller for SourceFlex Distributed Audio System

RDL SAS-8C 8 Station Audio Controller for SourceFlex Distributed Audio System

SoundPro Item: 71589 | Part Number: SAS-8C

$1,287.47
$1,716.62 $1,287.47
Your Price Sold out
MSRP: $1,716.62 | MAP: $1,287.47

Usually ships in 5-7 business days

  • Controls 8 SourceFlex listening stations
  • Provision to set maximum listening level at each station
  • Auto-resetting fuse protects power feed to each listening station
  • Daisy-chain connections to/from SAS-82 and/or SAS-8i
Log in or register for YOUR best price
View full details

Specifications

Audio Input, paging:
100 kΩ balanced or unbalanced line level, detachable terminal block
Audio Inputs, switched (8):
100 kΩ balanced or unbalanced line level, detachable terminal block
Audio Input Level:
-22 dBu to +4 dBu nominal (+22 dBu max.), 25-turn adjustable pot
Control Input:
Paging Terminal; External closure to ground to activate
Front Panel Presets:
DIP switch to set number of inputs used
Metering:
1 Green LED (intensity indicates audio level) ; 1 Red LED (indicates 0 dB audio level)
Frequency Response:
50 Hz to 35 kHz (±1 dB)
THD+N:
< 0.1% @ 1 KHz (bandwidth 20 Hz to 20 kHz)
Output, bus:

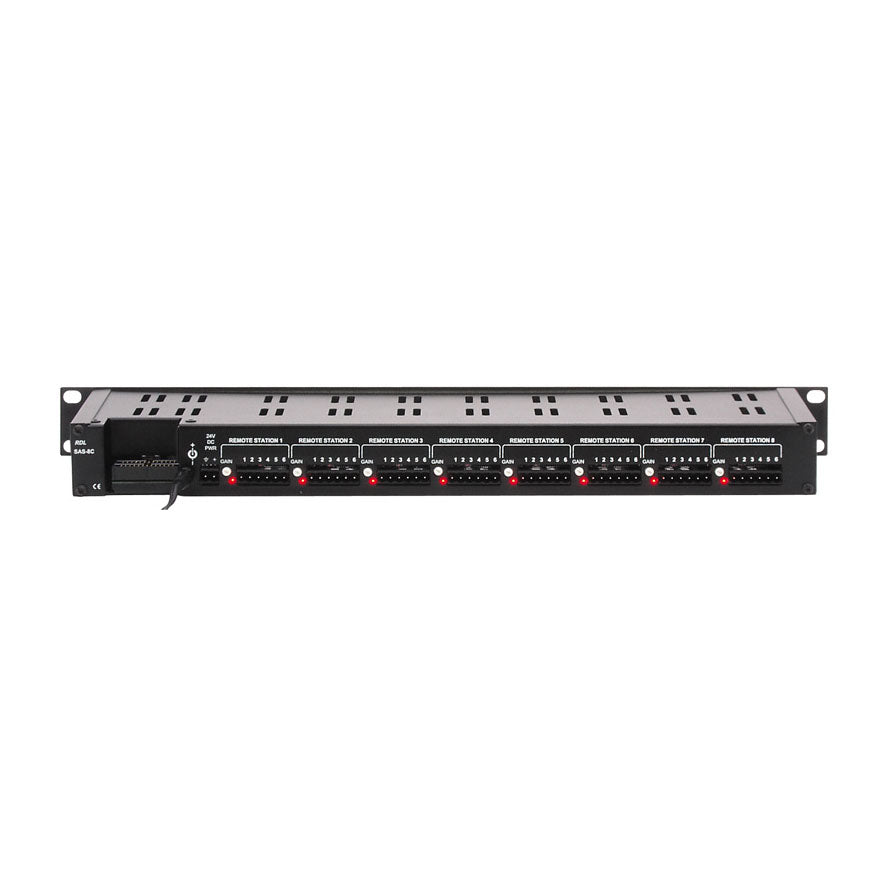

24-pin ribbon cable header loop-thru output to drive SAS-82 or SAS-8C
Outputs (4):
6-position detachable terminal blocks (connection to remote Listening Station)
Audio Output Gain Range:
40 dB (trimmer presettable)
Indicators:
LED; Output voltage present at Remote Outputs
Power Requirement:
24 Vdc @ 1 A, Ground-referenced
Ambient Operating Environment:
0° C to 50° C
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
3.615 lbs.
Shipping Weight:
4.185 lbs.
Package Dimensions:
20.5 x 6.75 x 2.25 in.
