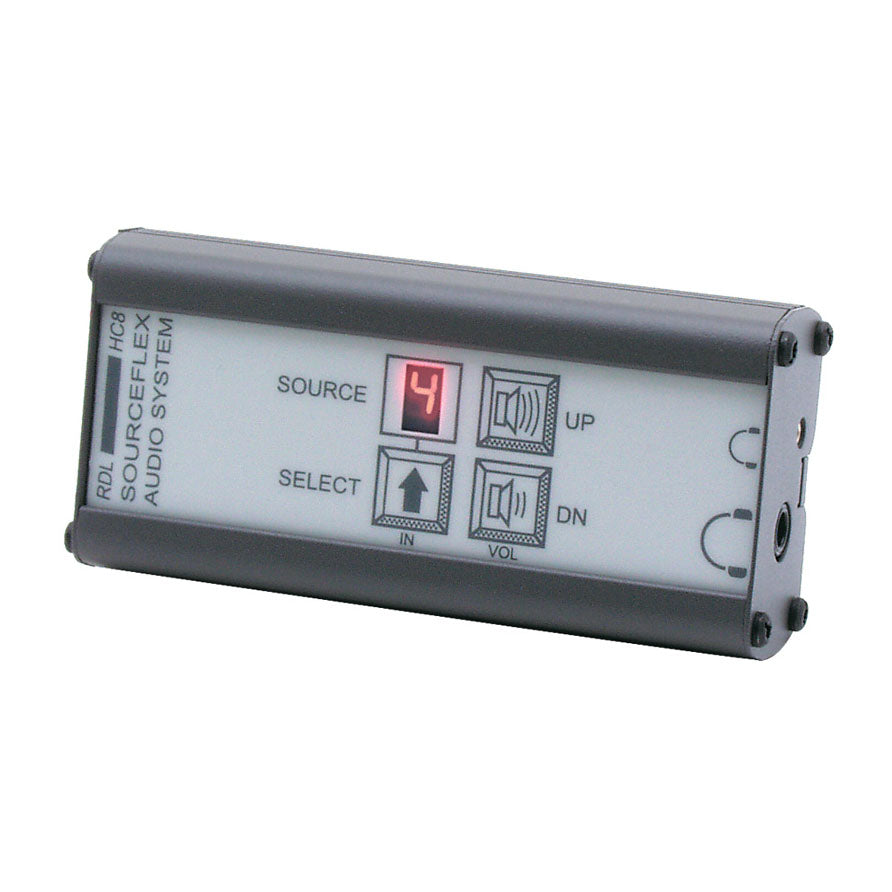

RDL SAS-HC8 Headphone Amplifier with Source Selection for SourceFlex Distributed Audio System

RDL SAS-HC8 Headphone Amplifier with Source Selection for SourceFlex Distributed Audio System

SoundPro Item: 71591 | Part Number: 001-9130

$446.93
$595.91 $446.93
Your Price Sold out
MSRP: $595.91 | MAP: $446.93

Usually ships in 5-7 business days

  • Headphone listening station for exercise equipment or countertop
  • Source selection and volume adjustment buttons
  • Sealed touch controls protect internal circuitry
  • ULTRASTYLE ™ design rugged metal enclosure
  • Mounts to support pipe, handlebar or tabletop
  • Automatic volume reduction to safe level when headphones left disconnected
Log in or register for YOUR best price

The SAS-HC8 Headphone Control Station is a SourceFlex headphone listening station for use with exercise equipment or on a tabletop. Each unit features a source selector with numeric indicator and volume adjustment buttons. Sealed touch controls protect the internal circuitry from debris and moisture. The rugged metal case is both attractive and durable. If headphones are left unplugged from the SAS-HC8, the internal processor resets the volume to a safe listening level. This averts the possibility of a loud, potentially harmful audio burst when headphones are plugged in.

View full details

Specifications

Display:
7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
Input:
6-position detachable terminal block
Control Buttons:
Replaceable, protected by moisture-resistant polycarbonate
Control functions:
Momentary button channel SELECT; Momentary button volume ramp UP; Momentary button volume ramp DOWN
Ramp Rate:
5 seconds nominal for 40 dB audio level adjustment
Frequency Response:
50 Hz to 35 kHz (±1 dB)
THD+N:
< 0.1% (20 Hz to 20 kHz) @ 1 kHz
Control Signals:
dc (RAMP and CONTROL conductors between remote Listening Station and Controller)
Output Jacks (2):
1/4 in. (6.35 mm) headphone jack or 1/8 in. (mini) headphone jack
Amplified Output:
200 mW RMS into 100 Ω, adjustable (normal system audio input operating level applied)
Mounting:
Bracket with clamps included, mounts to flat surface or to tubing 0.75 in. (1.9 cm) to 1.5 in. (3.8 cm) diameter
Finish:
RDL ULTRASTYLE™ design
Ambient Operating Environment:
0° C to 55° C
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.765 lbs.
Shipping Weight:
1.455 lbs.
Package Dimensions:
2 x 2 x 4 in.
