RDL SF-DN4 Digital Audio to Network Interface

RDL SF-DN4 Digital Audio to Network Interface

SoundPro Item: 147830 | Part Number: SF-DN4

$774.27
$1,032.36 $774.27
Your Price Sold out
MSRP: $1,032.36 | MAP: $774.27

Usually ships in 5-7 business days

  • Converts Two Left/Right Digital Audio Sources to Four Dante Network Audio Signals
  • AES/EBU or S/PDIF Coaxial or Optical Inputs
  • Supports Input Sampling Rates from 32 kHz to 192 kHz
  • Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Digital Signal Lock Indicator for Valid Inputs
  • Transformer-Isolated AES/EBU Input
  • Digital Audio Sources Remain in the Digital Domain through the Dante Network Output
  • Special Software Not Required for Module Setup
  • LED Indicator for Valid Power and Network Sync
  • Operation from PoE Power (Class 0, IEEE 802.3af)
  • Equipped for SysFlex® Rack Mounting or Surface Mounting
Log in or register for YOUR best price

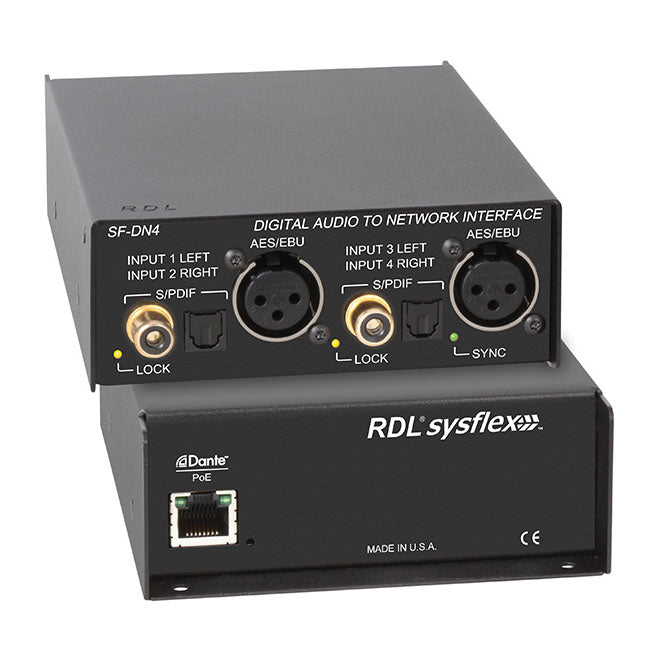

The SF-DN4 is a digital audio interface that converts two stereo digital audio sources to four Dante network audio channels. The SF-DN4 automatically detects a valid input on any of the three input jacks: S/PDIF optical, S/PDIF coaxial, or AES/EBU XLR. The input is decoded, re-clocked and transmitted to the Dante network. A yellow front-panel LOCK LED indicates a valid source received without any lock errors. Special software is not required to configure the module. The SF-DN4 is a professional grade product for studio quality performance. The SF-DN4 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit. The SF-DN4 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.

View full details

Specifications

Network Connector:
RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:
Dante
Transmission Rate:
100 Mbps
Input Sample Rates Supported:
32 kHz to 192 kHz
Output (Dante) Sample Rates Supported:
44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported:
24 bits
Inputs (6):
110 Ω AES/EBU XLR, transformer isolated (2); 75 Ω S/PDIF RCA jack (2); S/PDIF optical (2)
Indicators (5):
Ethernet Link and Speed (2, rear panel); Sync (front panel); Lock (2, front panel)
Ambient Operating Environment:
0° C to 50° C
Power Requirement:
PoE Class 0, IEEE 802.3af
Dimensions:
4.23" (10.74 cm) W; 1.68" (4.27 cm) H; 5.77" (14.66 cm) D
Package Type:
Cardboard Box
Package Dimensions:
7 x 4.375 x 2.25 in.
Shipping Weight:
1.375 lbs.
WEEE weight:
1.16 lbs.
Tariff code:
8543.70.9100
