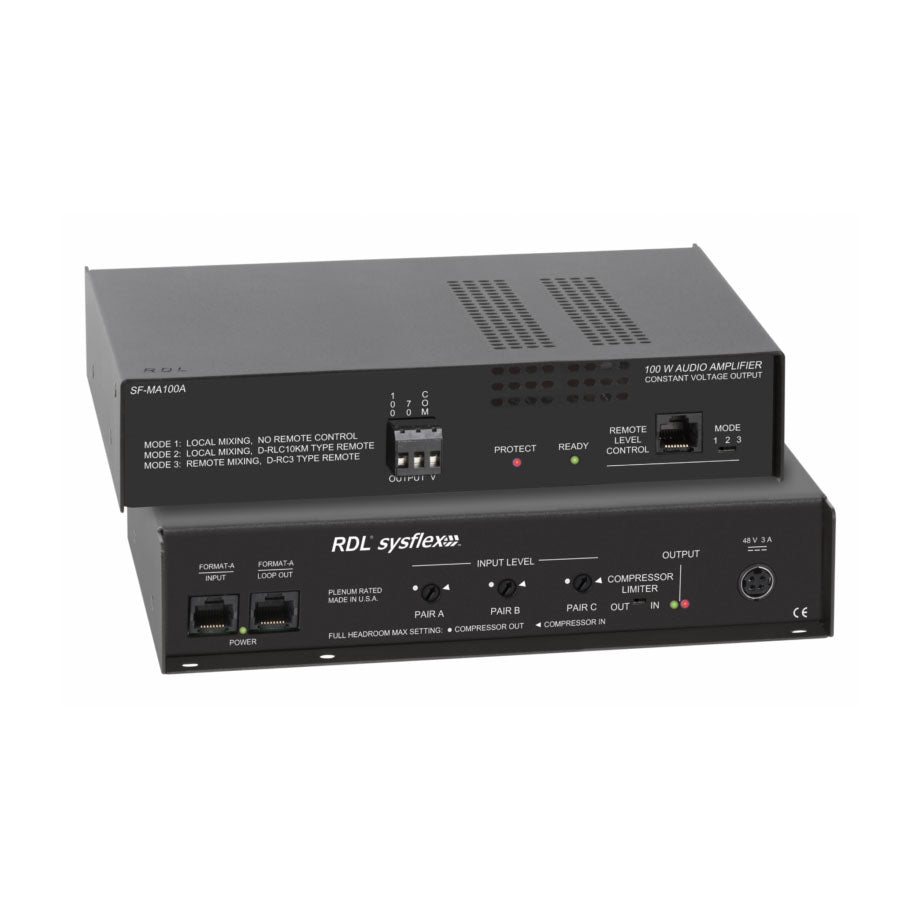

RDL SF-MA100A Format-A to 100 W Mono Audio Mixer-Amplifier - 70 V or 100 V

RDL SF-MA100A Format-A to 100 W Mono Audio Mixer-Amplifier - 70 V or 100 V

SoundPro Item: 151901 | Part Number: SF-MA100A

$821.61
$1,095.48 $821.61
Your Price Sold out
MSRP: $1,095.48 | MAP: $821.61

Usually ships in 5-7 business days

Log in or register for YOUR best price
View full details

Specifications

TYPICAL PERFORMANCE
Input:
RDL TP Format-A
Input Connection:
RJ45
Format-A Signal Pairs Used (3):
A, B, C
Format-A Output:
RJ45 (loop-through)
CMRR:
> 80 dB (50 Hz to 150 Hz)
Headroom above +4 dBu input:
> 18 dB
Amplifier Section
Power Amplifier Output:
100 W RMS (70 or 100 V)
Frequency Response:
+0/-3 dB (50 Hz to 20 kHz; -0.25 dB typical at 20 kHz)
THD+N:
< 1% (100 W)
Noise:
<-85 dB (below max power); <-75 dB (below 1/8 power)
Audio Metering:
Dual-LED VU Meter calibrated to 10 dBbelow full output power
Compressor:
Selectable (IN/OUT), threshold 2 dB below rated output,automatic adjusting attack and release times;adds 15 dB headroom to power amplifier input
Mode 1
Function:
Inputs summed using Gain Adjustments;No remote controls used
Inputs (3):
Pair A, Pair B, Pair C
Gain Adjustments (3):
Single turn audio taper
Mode 2
Function:
Inputs summed using Gain Adjustments;Master VCA level remote control(see RDL D*-RLC10M type)
Inputs (3):
Pair A, Pair B, Pair C
Gain Adjustments (3):
Single turn audio taper
VCA:
RJ45, 0 to 10 Vdc control(compatible with RDL D*-RLC10KM wall controls)
Mode 3
Function:
Inputs summed using remote control(see RDL D*-RC3 type remote)
Inputs (3):
Pair A, Pair B, Pair C
Gain Adjustments (3):
Single turn audio taper; sets maximum gainavailable for associated input pair
VCA (3):
RJ45, 0 to 10 Vdc control(compatible with RDL D*-RC3 wall controls)
Indicators (5):
Front-panel: Ready (green), Overload Shutdown(red), Rear-panel: dual-LED VU meter (2),Format-A Power (green)
Ambient Operating Environment:
0° C to 50° C
Power Supply (included):
100 to 240 Vac, 50-60 Hz, IEC C14;Output to module: 48 Vdc
Plenum Rating Standard:
UL 2043
Dimensions:
Height: 1.68 in. (4.27 cm);Width: 8.71 in. (22.12 cm);Depth: 7.8 in. (19.81 cm)
Package Type:
Cardboard Box
Package Dimensions:
4.2 in. (10.67 cm) x 11.9 (30.23 cm) x9.5 (24.13 cm)
Shipping Weight:
5.46 lbs.
WEEE weight:
4.56
Tariff code:
8543.70.9910
