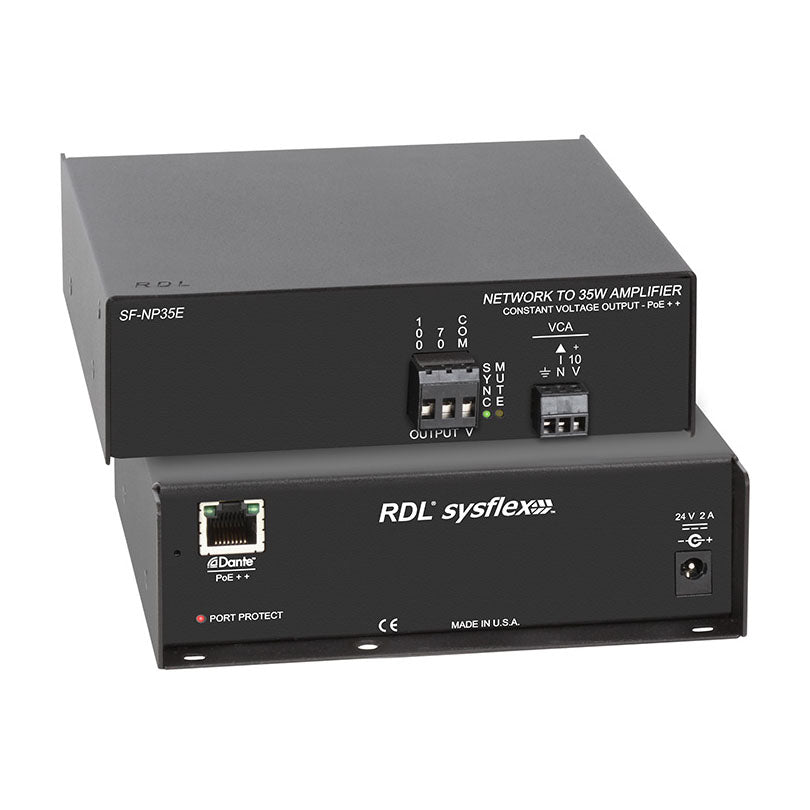

RDL SF-NP35E PoE++ Network to 35 W Mono Audio Amplifier - 70 V or 100 V

RDL SF-NP35E PoE++ Network to 35 W Mono Audio Amplifier - 70 V or 100 V

SoundPro Item: 84177 | Part Number: SF-NP35E

$687.06
$916.09 $687.06
Your Price Sold out
MSRP: $916.09 | MAP: $687.06

Usually ships in 5-7 business days

  • 35 Watts RMS Constant Voltage Amplifier
  • 70 V or 100 V Output
  • Converts One Dante Network Audio Signal to a Mono Constant Voltage Output
  • Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • 0 dBFS Input for 35 W Output
  • Automatically limits supply current to protect against PoE++ port shutdown
  • VCA Control on Detachable Terminal Block
  • External Control Using 10 KΩ Potentiometer or 0 to 10 Vdc
  • Compatible with RDL Remote Level Controls
  • Special Software Not Required for Module Setup
  • LED Indicator for Network Sync
  • High-Efficiency Class D Operation
  • Thermal and Short-Circuit Protection
  • Plenum Rated per UL 2043 Standard
Log in or register for YOUR best price
View full details

Specifications

PoE:
Class 4, IEEE 802.3at (PoE++, 4 pairs)
Power Requirement:
24 Vdc @ 2000 mA, or PoE
Ambient Operating Environment:
0° C to 40° C Maximum; 20° C Recommended
VCA:
0 to 10 Vdc control, detachable terminal block (compatible with RDL VCA wall controls)
Indicators (3):
Front-panel: Sync (green), Amplifier muted (yel), Rear-panel: Port Protect (red), Ethernet Link and Speed (2)
Noise:
<-90 dB (below max power); <-80 dB (below 1/8 power)
Frequency Response:
+0/-3 dB (50 Hz to 20 kHz)
THD+N:
< 1% (1 kHz)
Power Amplifier Output:
35 W RMS (70 or 100 V)
Reference Level:
0 dBFS = 35 W
Bit Depth Supported:
24 bits
Sample Rates Supported:
44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Transmission Rate:
100 Mbps
Digital Audio Ethernet Protocol:
Dante
Network Connector:
RJ45 with Link and Speed indicators
Plenum Rating Standard:
UL 2043
Dimensions:
Height: 1.7 in. (4,32 cm); Width: 5.83 in. (14,8 cm); Depth: 6.45 in. (16.38 cm)
Package Type:
Cardboard Box
Package Dimensions:
9.5 x 7 x 2.25 in.
Shipping Weight:
3.33 lbs.
WEEE weight:
2.97 lbs.
Tariff code:
8543.70.9910
