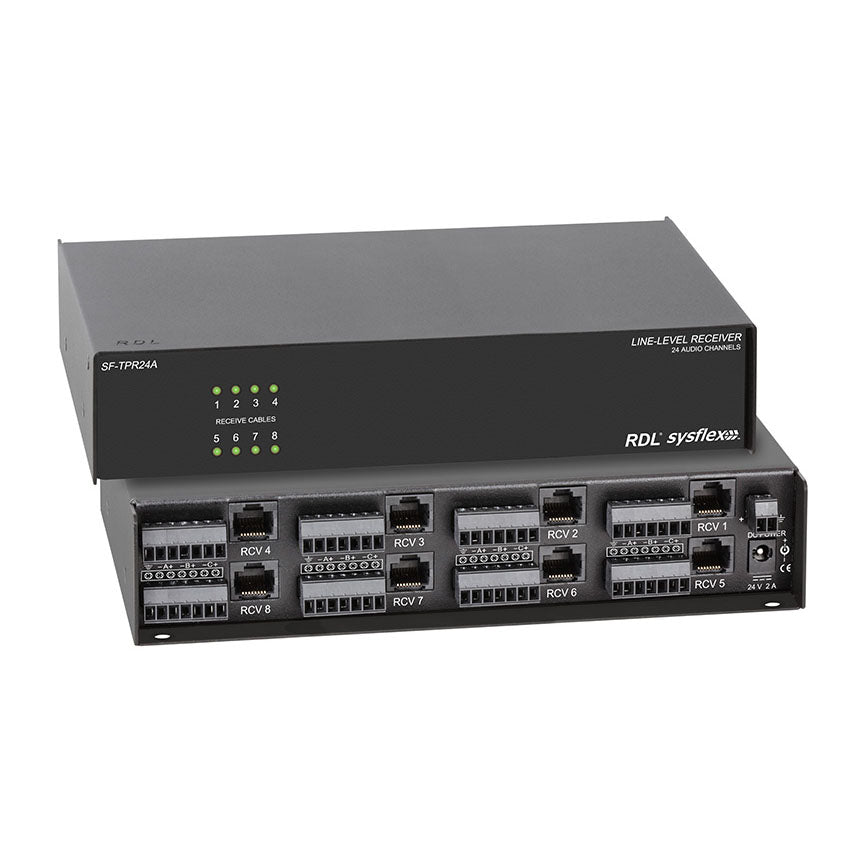

RDL SF-TPR24A Line-Level Receiver

RDL SF-TPR24A Line-Level Receiver

SoundPro Item: 135890 | Part Number: SF-TPR24A

$715.60
$954.13 $715.60
Your Price Sold out
MSRP: $954.13 | MAP: $715.60

Usually ships in 5-7 business days

  • Eight Separate Three-Pair Format-A Receiver Sections
  • Receives up to 24 Audio Channels
  • Three +4 dBu Balanced Outputs per Section
  • Detachable Terminal Block Outputs
  • Audio Outputs for All Three Pairs (A, B and C) per Section
  • Local Power Feeds all Modules Connected to INPUTs
  • Wiring Fault Protection by Automatic Resetting Fuse
  • Local Power Input on Terminal Block or dc Power Jack
  • Green LED per Section Indicates Validity of Module Remote Power
  • Studio-Quality Precision Active Balanced Circuitry
Log in or register for YOUR best price
View full details

Specifications

?Inputs (8):
RDL Format-A
Input Connections:
RJ45
Format-A Signal Pairs Used (3):
A, B, C (per section)
Outputs (24):
150 Ω Balanced
Output Connection:
Detachable Terminal Block (Balanced)
Output Level:
+4 dBu Bal. nominal, +22 dBu Max
Frequency Response:
10 Hz to 50 kHz (± 0.1 dB)
THD+N:
< 0.005%
Noise below +4 dBu:
< 90 dB
Crosstalk:
Below noise floor (20 Hz to 20 kHz, +4 dBu input)
Headroom above +4 dBu:
> 18 dB
CMRR:
> 80 dB (50 Hz to 150 Hz)
Indicators (8):
Power (1 per RJ45)
Power Connections (2):
Power Jack; Detachable Terminal Block
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
24 Vdc @ 360 mA plus connected loads (1.6 A max)
Dimensions:
8.74" (22.2 cm) W; 1.68" (4.27 cm) H; 5.78" (14.68 cm) D
Package Type:
Cardboard Box
Package Dimensions:
9.5" (24.1 cm) W; 2.25" (5.71 cm) H; 7" (17.8 cm) D
Shipping Weight:
2.66 lbs.
WEEE weight:
2.32 lbs.
Tariff code:
8543.70.9860
