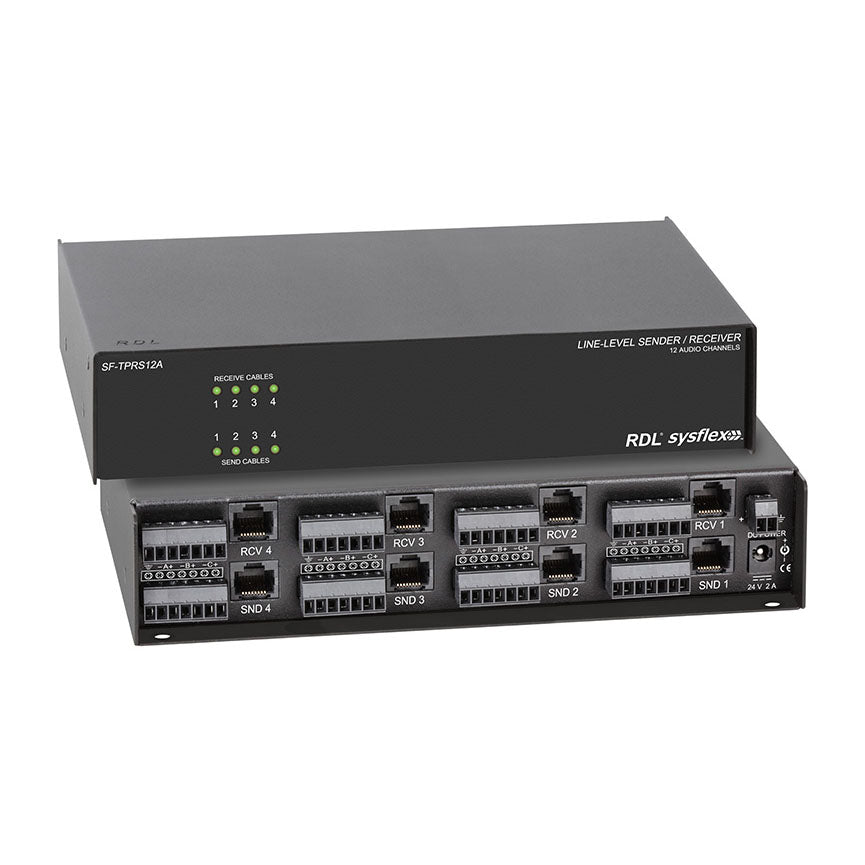

RDL SF-TPRS12A Line-Level Sender / Receiver

RDL SF-TPRS12A Line-Level Sender / Receiver

SoundPro Item: 135891 | Part Number: SF-TPRS12A

$686.50
$915.33 $686.50
Your Price Sold out
MSRP: $915.33 | MAP: $686.50

Usually ships in 5-7 business days

  • Four Separate Three-Pair Format-A Sender Sections
  • Four Separate Three-Pair Format-A Receiver Sections
  • Up to 24 Audio Channels, 12 Sender; 12 Receiver
  • +4 dBu Balanced Audio Inputs and Outputs
  • Local Audio Connections on Detachable Terminal Blocks
  • Utilizes All Three Format-A Pairs
  • Local Power Feeds all Modules Connected to RJ45 Connectors
  • Wiring Fault Protection by Automatic Resetting Fuse
  • Local Power Input on Terminal Block or dc Power Jack
  • Green LED per Section Indicates Validity of Module Remote Power
  • Studio-Quality Precision Active Balanced Circuitry
Log in or register for YOUR best price
View full details

Specifications

?Sending Section\t
Inputs (12)
20 kΩ balanced
Input Connection
Detachable Terminal Block (Balanced)
Input Level
+4 dBu Bal.; +22 dBu Max
Format-A Signal Pairs Used (3):
A, B, C
Output
RDL TP Format-A
Output Connection
RJ45
Frequency Response
10 Hz to 50 kHz (± 0.1 dB)
THD+N
< 0.005%
Noise below +4 dBu
< 90 dB
Crosstalk
< 85 dB (20 Hz to 20 kHz)
Headroom above +4 dBu
> 18 dB
CMRR
> 60 dB (50 Hz to 150 Hz)
Receiving Section
Inputs (4):
RDL Format-A
Input Connections:
RJ45
Format-A Signal Pairs Used (3):
A, B, C (per section)
Outputs (12):
150 Ohms Balanced
Output Connection:
Detachable Terminal Block (Balanced)
Output Level:
+4 dBu Bal. nominal, +22 dBu Max
Frequency Response:
10 Hz to 50 kHz (± 0.1 dB)
THD+N:
< 0.005%
Noise below +4 dBu:
< 90 dB
Headroom above +4 dBu
> 18 dB
CMRR:
> 80 dB (50 Hz to 150 Hz)
Common
Power Connections (2):
Power Jack; Detachable Terminal Block
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
24 Vdc @ 400 mA plus connected loads (1.6 A max)
Dimensions:
8.74" (22.2 cm) W; 1.68" (4.27 cm) H; 5.78" (14.68 cm) D
Package Type:
Cardboard Box
Package Dimensions:
9.5" (24.1 cm) W; 2.25" (5.71 cm) H; 7" (17.8 cm) D
Shipping Weight:
2.65 lbs.
WEEE weight:
2.31 lbs.
Tariff code:
8543.70.9860
