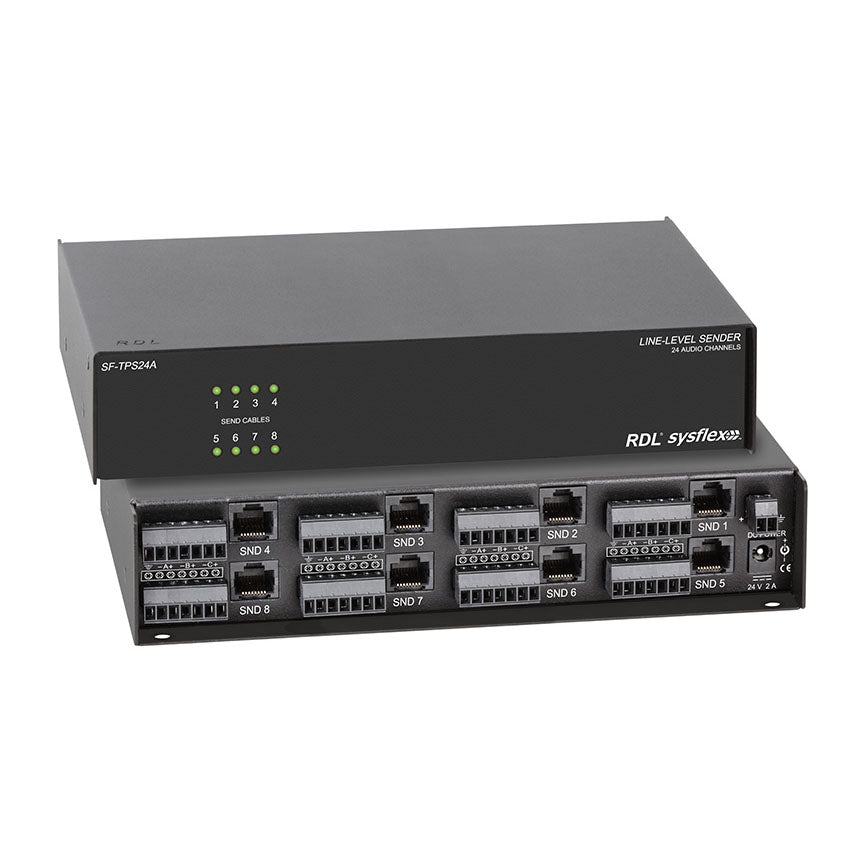

RDL SF-TPS24A Line-Level Sender

RDL SF-TPS24A Line-Level Sender

SoundPro Item: 135892 | Part Number: SF-TPS24A

$657.26
$876.34 $657.26
Your Price Sold out
MSRP: $876.34 | MAP: $657.26

Usually ships in 5-7 business days

  • Eight Separate Three-Pair Format-A Sender Sections
  • Sends up to 24 Audio Channels
  • Three +4 dBu Balanced Inputs per Section
  • Detachable Terminal Block Inputs
  • Audio Inputs to Feed Pairs A, B and C per Section
  • Utilizes All Three Format-A Pairs
  • Local Power Feeds all Modules Connected to OUTPUTs
  • Wiring Fault Protection by Automatic Resetting Fuse
  • Local Power Input on Terminal Block or dc Power Jack
  • Green LED per Section Indicates Validity of Module Remote Power
  • Studio-Quality Precision Active Balanced Circuitry
Log in or register for YOUR best price
View full details

Specifications

?Inputs (24):
20 kΩ balanced
Input Connection:
Detachable Terminal Block (Balanced)
Input Level:
+4 dBu Bal.; +22 dBu Max
Format-A Signal Pairs Used (3):
A, B, C (per section)
Output:
RDL TP Format-A
Output Connection:
RJ45
Frequency Response:
10 Hz to 50 kHz (± 0.1 dB)
THD+N:
< 0.005%
Noise below +4 dBu:
< 90 dB
Crosstalk:
< 85 dB (20 Hz to 20 kHz)
Headroom above +4 dBu:
> 18 dB
CMRR:
> 60 dB (50 Hz to 150 Hz)
Indicators (8):
Power (1 per RJ45)
Power Connections (2):
Power Jack; Detachable Terminal Block
Ambient Operating Environment:
0° C to 50° C
Power Requirement:
24 Vdc @ 440 mA (per board) plus connected loads (1.6 A max)
Dimensions:
8.74" (22.2 cm) W; 1.68" (4.27 cm) H; 5.78" (14.68 cm) D
Package Type:
Cardboard Box
Package Dimensions:
9.5" (24.1 cm) W; 2.25" (5.71 cm) H; 7" (17.8 cm) D
Shipping Weight:
2.64 lbs.
WEEE weight:
2.3 lbs.
Tariff code:
8543.70.9860
