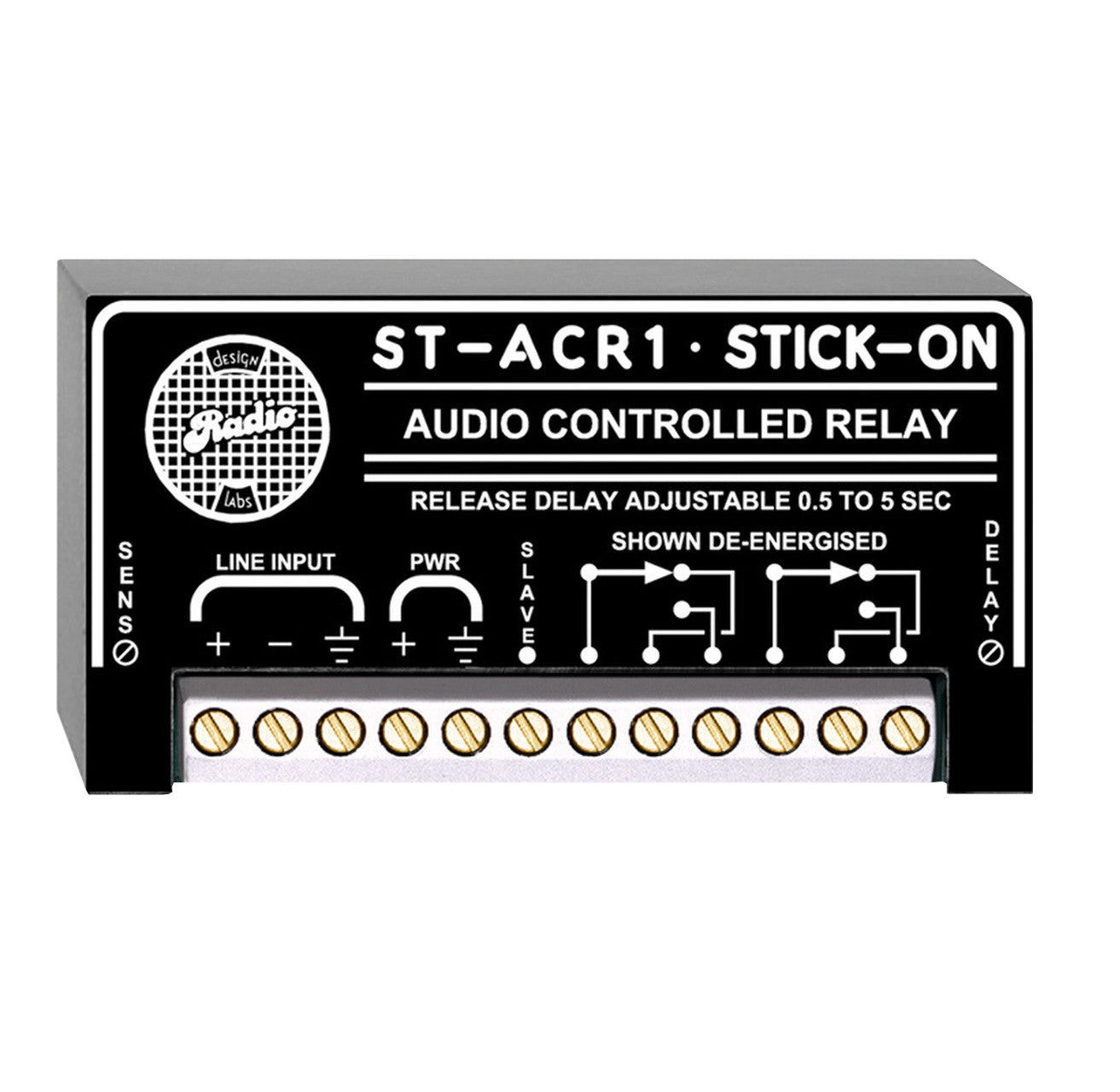

RDL ST-ACR1 Line-Level Audio Controlled Relay

RDL ST-ACR1 Line-Level Audio Controlled Relay

SoundPro Item: 77458 | Part Number: ST-ACR1

$146.19
$194.92 $146.19
Your Price Sold out
MSRP: $194.92 | MAP: $146.19

Usually ships in 5-7 business days

  • Switching Controlled by Audio Signal
  • Sensing of Line-Level Signal
  • Silence Sensing
  • DPDT Switching Contacts
  • Open-Collector SLAVE Output
Log in or register for YOUR best price

The RDL ST-ACR1 Line-Level Audio Controlled Relay is an Audio Controlled Relay in the STICK-ON® series. These products are designed for quick, convenient installation, and reliable operation in a variety of control applications. The ST-ACR1 is designed to switch on line level sources.

Two multiturn trimmers are provided. The SENS potentiometer adjusts the audio input sensitivity. A threshold LED facilitates accurate adjustment. The module can be set to trigger on signals between -30 dBu and 0 dBu. The DELAY control sets the time required for the relay to release when the audio drops below the threshold.

The delay adjustment range for the ST-ACR1 is from 0.5 seconds to 5 seconds.

View full details

Specifications

Dimensions
Dimensions
Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), Depth: 1.6 in. (3.9 cm)
Package Dimensions
2x2x4"
Weight
Shipping Weight
0.2 lbs
WEEE Weight
0.15 lbs
Electrical
Max. Switching Voltage
220 Vdc, 250 Vac
Max. Switching Current
2 A
Power Requirement
GROUND-REFERENCED, 24 Vdc @ 50 mA* (*Assumes 20 mA max load at SLAVE output)
Audio
Audio Input
10 kΩ balanced bridging
Input Sensitivity
-30 dBu to 0 dBu (adjustable)
Connectivity
Input Connections
May be connected balanced or unbalanced
Control Output
Open-collector @ 25 mA suitable to drive indicators or slave LCR relay
Construction
Contacts
Double-pole-double-throw
General
Indicators
Audio threshold LED (for setting sensitivity)
Retrigger Delay
250 ms
Max. Switching Power
60 W, 125 VA
Activation Response Time
25 ms
Relay Release Delay
0.5 sec. to 5.0 sec. nominal (adjustable)
Ambient Operating Environment
0° C to 55° C
Package Type
Cardboard Box
