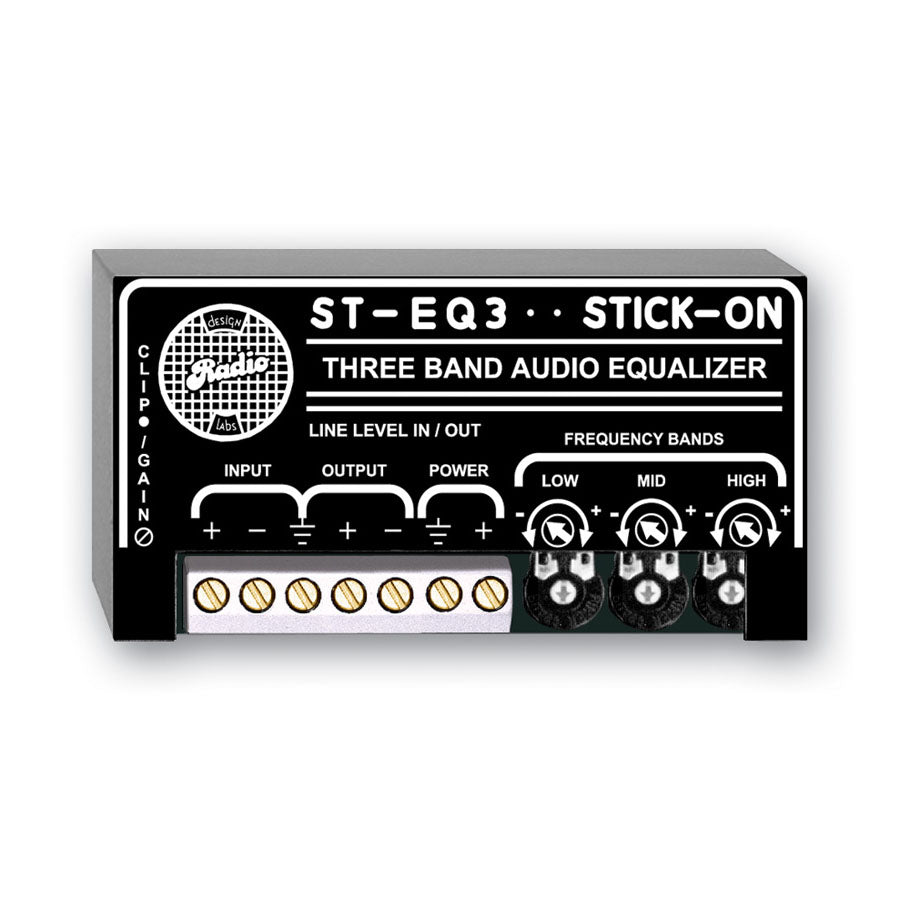

RDL ST-EQ3 3 Band Equalizer - Line Level

RDL ST-EQ3 3 Band Equalizer - Line Level

SoundPro Item: 77466 | Part Number: ST-EQ3

$142.39
$189.85 $142.39
Your Price Sold out
MSRP: $189.85 | MAP: $142.39

Usually ships in 5-7 business days

  • 3-Band Audio Equalization
  • Custom Tailored Audio Bandwidth
  • Adjust To Pass Voice-Band Audio
  • Adjust To Produce Smile-Curve for Music
  • Low Noise and Low Distortion Equalization
Log in or register for YOUR best price
View full details

Specifications

Tariff code:
8543.70.9860
WEEE weight:
0.12 lbs.
Shipping Weight:
0.17 lbs.
Package Dimensions:
2 x 2 x 4 in.
Package Type:
Cardboard Box
Dimensions:
Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), Depth: 1.6 in. (3.9 cm)
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 25 mA
Bandwidth at 3dB EQ:
LOW Band: 20 Hz to 300 HzMID Band: 200 Hz to 7 kHzHIGH Band: 3 kHz to 30 kHz
Ambient Operating Environment:
0° C to 55° C
Center Frequencies:
LOW Band: 80 HzMID Band: 1 kHzHIGH Band: 30 kHz
Audio Output:
+4 dBu nominal, 150 Ω balanced
Gain:
OFF to unity (adjustable, ± EQ adjustment)
THD+N:
< 0.030%; 0.010% typical (1 kHz flat response)
Input:
100 kΩ balanced or unbalanced bridging; line-level
Frequency Response:
20 Hz to 22 kHz (EQ set flat; ± 0.5 dB), into 600 Ω; 10 Hz to 22 kHz (EQ set flat; ± 0.5 dB), into bridging load
CMRR:
> 60 dB (50 to 120 Hz)
Noise:
< -80 dB (below +4 dBu)
