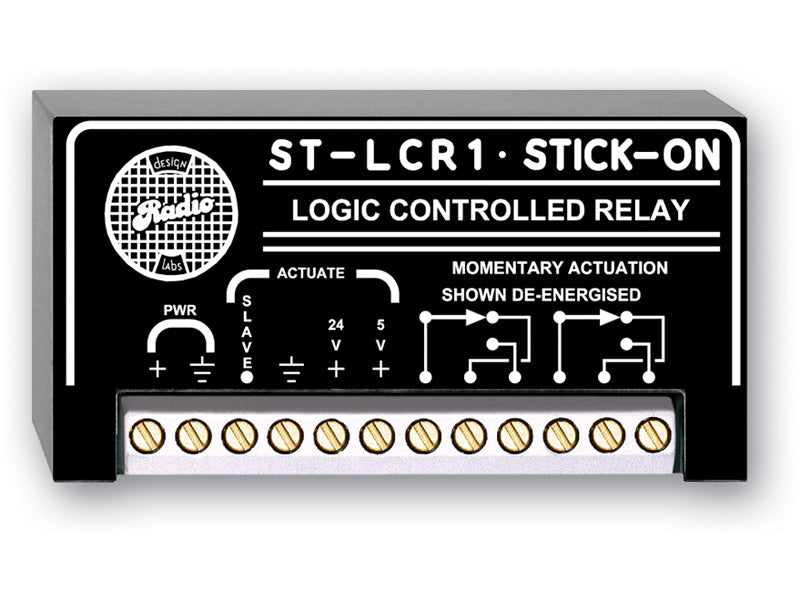

RDL ST-LCR1 Logic Controlled Relay - Momentary

RDL ST-LCR1 Logic Controlled Relay - Momentary

SoundPro Item: 71825 | Part Number: 001-0029

$108.98
$145.30 $108.98
Your Price Sold out
MSRP: $145.30 | MAP: $108.98

In stock and ready to ship

  • Add Contacts to Any Control Signal
  • Activation from Logic Circuits
  • DPDT Switching Relay
  • Open-Collector Switching
  • Control from Switch, Button or Logic Circuits
Log in or register for YOUR best price

The ST-LCR1 provides double-pole, double-throw dry switching contacts and LED indicator for relay closure. The ST-LCR1 provides momentary operation and is ideally suited where additional switching contacts are needed to be added to nearly any type of control signal.

View full details

Specifications

Dimensions:
Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), D...
Control Inputs:
SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting this input to Ground. Input from other equipment's open-collector output turns relay on when open-collector is on.
Note: RDL switching STICK-ONs have open-collector outputs suitable for driving an ST-LCR1.
5V+ accepts 3.5 to 12 Vdc to turn on relay. Relay is on only when this control signal is applied.
24V+ accepts 12 to 35 Vdc to turn on relay. Relay is on only when this control signal is applied.
Control Output:
SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs
Switching Contacts:
Double-pole, double-throw
Maximum Switching Power:
60 W (220 Vdc, 125 Vac, 2 A)
Ambient Operating Environment:
-10° C to 55° C
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 50 mA *
* Assumes 20 mA max load at SLAVE output
Package Type:
Cardboard Box
WEEE weight:
0.135 lbs.
Shipping Weight:
0.185 lbs.
Tariff code:
8543.70.9860
Package Dimensions:
2 x 2 x 4 in.
