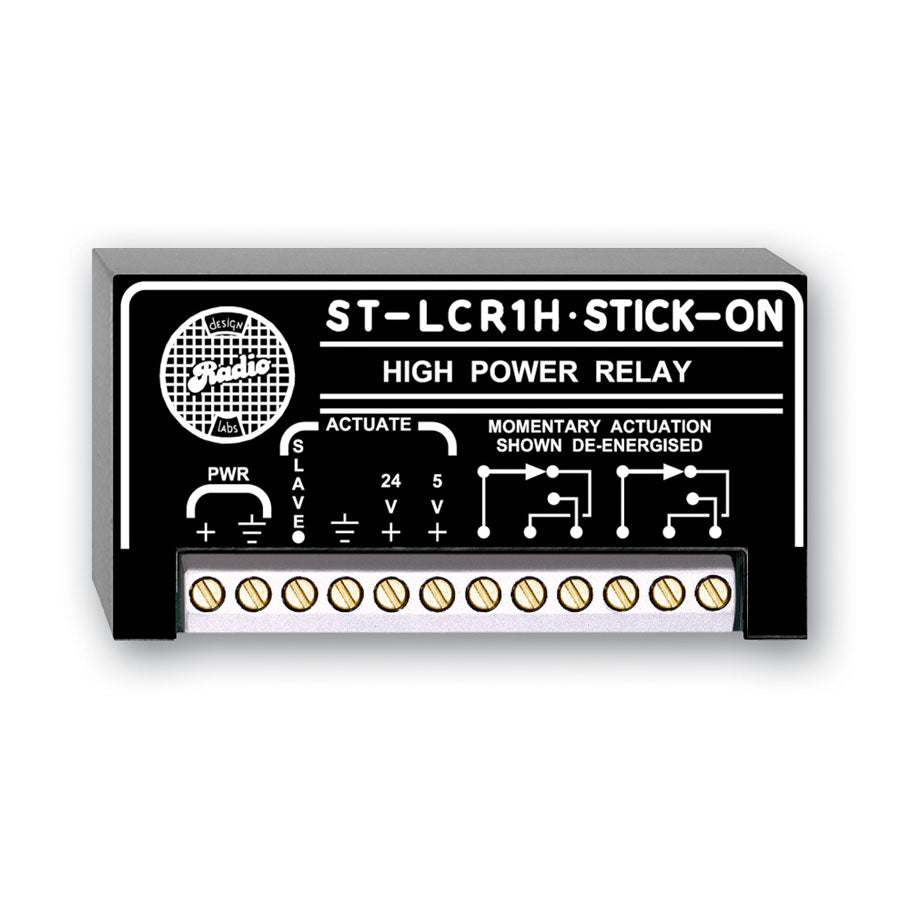

RDL ST-LCR1H High Power Logic Controlled Relay - 8 A

RDL ST-LCR1H High Power Logic Controlled Relay - 8 A

SoundPro Item: 77473 | Part Number: ST-LCR1H

$158.99
$211.98 $158.99
Your Price Sold out
MSRP: $211.98 | MAP: $158.99

Usually ships in 5-7 business days

  • Switching of Speaker Lines
  • Control from Switch or Logic Circuits
  • DPDT Switching Contacts
  • Open-Collector Switching
  • 8 Amp Relay Contacts
Log in or register for YOUR best price
View full details

Specifications

Control Inputs:
SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting this input to Ground. Input from other equipment's open-collector output turns relay on when open-collector is on.Note: RDL switching STICK-ONs® have open-collector outputs suitable for driving an ST-LCR1H.5V+ accepts 3.5 to 12 Vdc to turn on relay. Relay is on only when this control signal is applied.24V+ accepts 12 to 35 Vdc to turn on relay. Relay is on only when this control signal is applied.
Control Output:
SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs
Switching Contacts:
Double-pole, double-throw
Max. Current:
8 Amp @ 250 Vac or 30 Vdc
Max. Power:
500 W (Amplified Audio Signal)
Dimensions:
Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), Depth: 1.6 in. (3.9 cm)
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 50 mA
Package Type:
Cardboard Box
WEEE weight:
0.15 lbs.
Shipping Weight:
0.2 lbs.
Tariff code:
8543.70.9860
Package Dimensions:
2 x 2 x 4 in.
