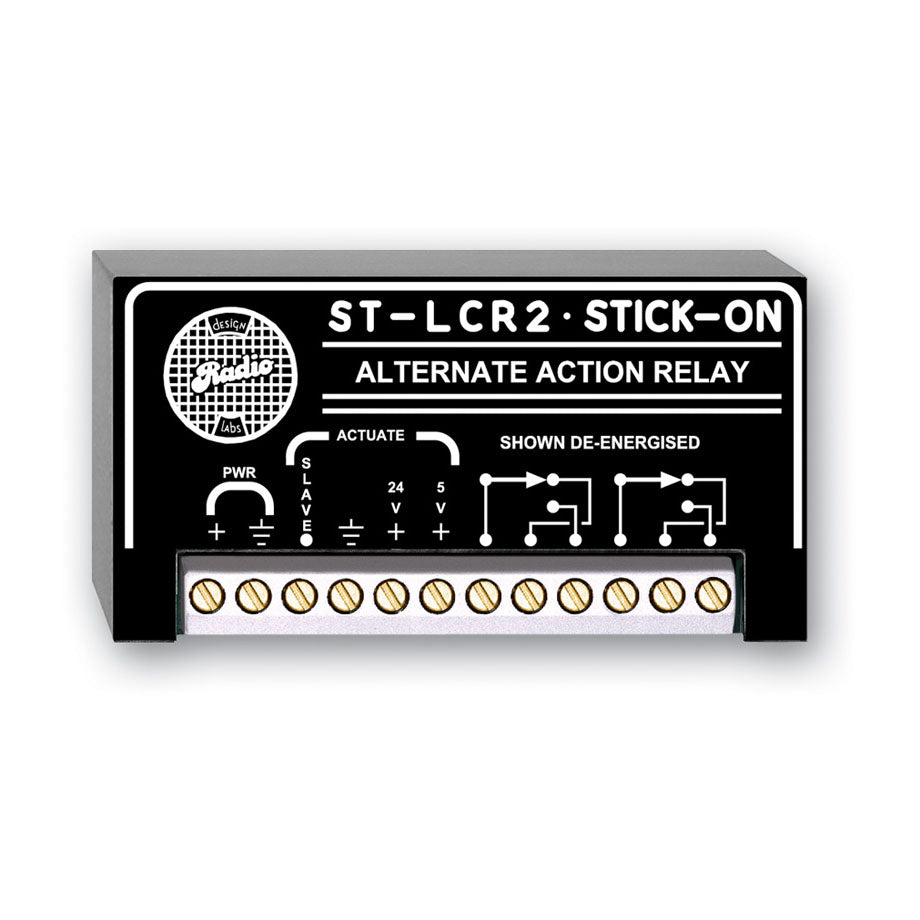

RDL ST-LCR2 Logic Controlled Relay - Latching

RDL ST-LCR2 Logic Controlled Relay - Latching

SoundPro Item: 77474 | Part Number: ST-LCR2

$161.27
$215.02 $161.27
Your Price Sold out
MSRP: $215.02 | MAP: $161.27

Usually ships in 5-7 business days

  • Alternate-Action Switching
  • Add Contacts to Any Control Signal
  • Activation from Logic Circuits
  • DPDT Switching Relay
  • Open-Collector Switching
  • Control from Switch, Button, or Logic Circuits
Log in or register for YOUR best price
View full details

Specifications

Control Inputs:
SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting slave input to ground. Input from other equipment's open-collector output turns relay on when open-collector is on. Note: RDLswitching STICK-ONs have available open-collector outputs suitable for driving ST-LCR2. 5 V+ terminal accepts 3.5 to 12 Vdc to activate control circuit. Relay turns on when this input is pulsed high then low,then turns off again the next time it is pulsed high then low. 24 V+ terminal accepts 12 to 35 Vdc to activate control circuit. Relay turns on when this input is pulsed high then low, then turns off again the next time it is pulsed high then low.
Output Slave:
Open-collector @ 25 mA suitable to drive indicators or slave LCRs.
Switching Contacts:
Double-pole, double-throw
Maximum Switching Power:
60 W (220 Vdc, 125 Vac, 2 A)
Ambient Operating Environment:
-10° C to 55° C
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 50 mA (assuming 20mA max load at SLAVE output)
Dimensions:
Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), Depth: 1.6 in. (3.9 cm)
Package Type:
Cardboard Box
WEEE weight:
0.145 lbs.
Shipping Weight:
0.195 lbs.
Tariff code:
8543.70.9860
Package Dimensions:
2 x 2 x 4 in.
