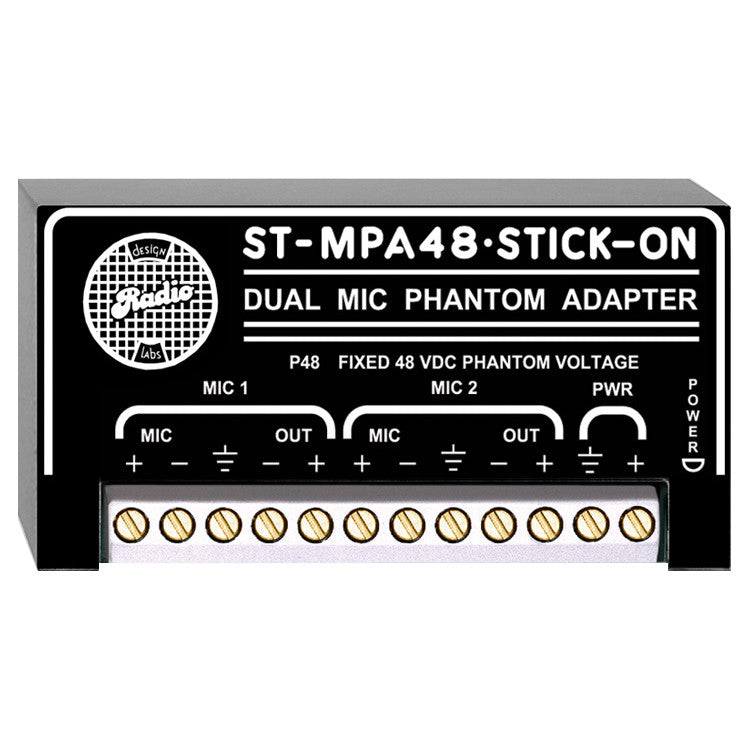

RDL ST-MPA48 Dual Microphone Phantom Adapter - 48 V

RDL ST-MPA48 Dual Microphone Phantom Adapter - 48 V

SoundPro Item: 68081 | Part Number: 001-1165

$181.54
$242.06 $181.54
Your Price Sold out
MSRP: $242.06 | MAP: $181.54

Usually ships in 5-7 business days

  • Phantom Adapter for Two Mics
  • 48 Vdc Fixed Phantom Voltage
  • P48 per IEC 61938
  • Operates From External 12 V Battery or 24 V Power Supply
  • Phantom Conversion with Full Frequency Response
Log in or register for YOUR best price

The ST-MPA48 from RDL contains two identical phantom power circuits and a common power supply input. If only one mic input is to be converted for phantom operation, only one circuit needs to be used. Each circuit has a mic input and a mic output. Phantom voltage appears on each of the mic input terminals. Therefore, the ST-MPA48 can convert any existing mic input into a 48 Vdc phantom powered input. Phantom voltage is not present on the output terminals.

The power supply input terminals may be fed with any dc voltage from 10.5 volts to 26 volts.

View full details

Specifications

Weight
WEEE Weight
0.145 lbs
Shipping Weight
0.2 lbs
Electrical
Phantom Voltage
P48, 48 Vdc
Standard for Phantom
IEC 61938: 2013
Input Voltage Range
10.5 Vdc to 26 Vdc (for 48 Vdc output)
Power Requirement
GROUND-REFERENCED, 12 Vdc @ 150 mA (with 20 mA load), 24 Vdc @ 80 mA (with 20 mA load)
Audio
Channels
2
Frequency Response
20 Hz to 100 kHz (± 0.025 dB, 150 Ω source, 1 kΩ load)
General
Ambient Operating Environment
0° C to 55° C
