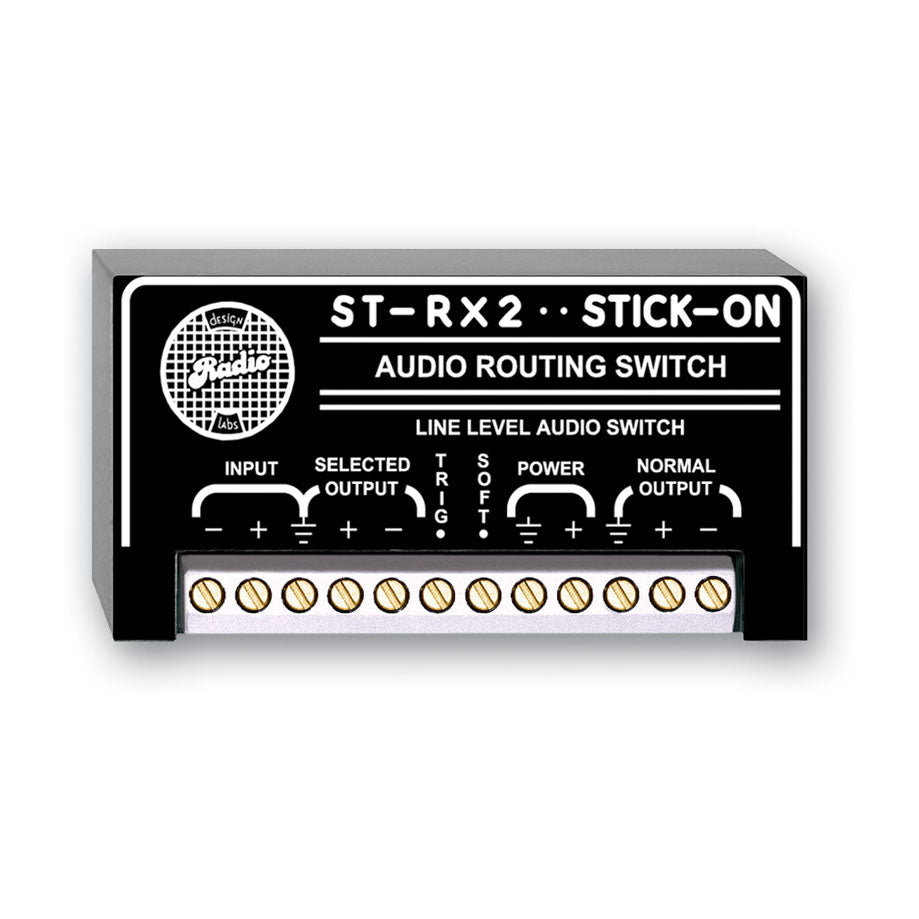

RDL ST-RX2 Audio Routing Switcher - 1x2

RDL ST-RX2 Audio Routing Switcher - 1x2

SoundPro Item: 77499 | Part Number: ST-RX2

$154.37
$205.83 $154.37
Your Price Sold out
MSRP: $205.83 | MAP: $154.37

Usually ships in 5-7 business days

  • Routing of a Line-Level Source
  • Audio Switched to One of Two Destinations
  • Silent Audio Switching
  • Balanced or Unbalanced Routing
  • Switching by Open-Collector Logic
Log in or register for YOUR best price
View full details

Specifications

Frequency Response:
15 Hz to 20 kHz (± 0.5 dB, bridging load)30 Hz to 20 kHz (± 0.5 dB, 600 Ω load)
Switching Time:
Fast / Soft
Time required for NORMAL input to turn off:
10 us / 5 ms
Time required for NORMAL input to turn on:
15 us / 70 ms
Time required for SELECT input to turn off:
15 us / 10 ms
Time required for SELECT input to turn on:
20 us / 35 ms
Control Signal:
TRIG terminal must be externallypulled to ground
Control Current:
0.5 mA
THD+N:
< 0.05%
Headroom (above +4 dBu):
> 18 dB
CMRR
> 45 dB (100 Hz, either port)
Noise (below +4 dBu):
< -80 dB (85 dB typical)
ON Gain:
Unity (600 Ω balanced input/output)
Audio Output:
+4 dBu nominal, 150 Ω balanced, terminal block
Inputs (2):
20 kΩ balanced, +4 dBu nominal
Shipping Weight:
0.198 lbs.
WEEE weight:
0.145 lbs.
Tariff code:
8543.70.9860
Package Dimensions:
2 x 2 x 4 in.
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 40 mA
Package Type:
Cardboard Box
Indicators (2):
LED showing active input (left LED=NORMAL; right LED=SELECT)
Ambient Operating Environment:
0° C to 55° C
OFF Attenuation:
> 80 dB (10 Hz to 20 kHz, either input)
