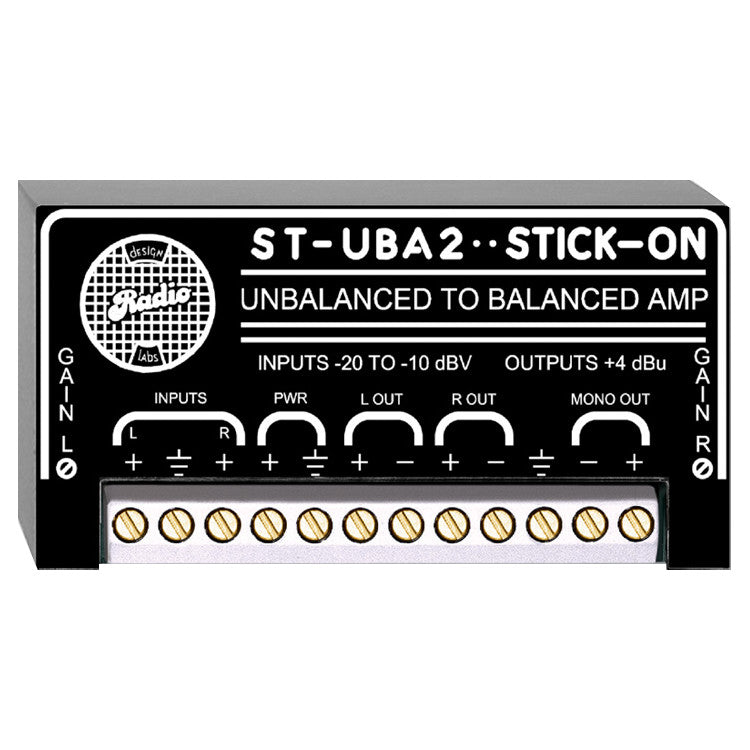

RDL ST-UBA2 2-Channel Unbalanced to Balanced Amplifier

RDL ST-UBA2 2-Channel Unbalanced to Balanced Amplifier

SoundPro Item: 71833 | Part Number: 001-1035

$225.45
$300.60 $225.45
Your Price Sold out
MSRP: $300.60 | MAP: $225.45

Usually ships in 5-7 business days

  • Convert Stereo IHF Levels to Stereo PRO
  • Additional Summed MONO OUT
  • Independently Adjustable Gain
  • Ground-Referenced Conversion Module
  • Dual-LED VU Metering for Each Channel Included
  • Unparalleled Audio Performance
Log in or register for YOUR best price

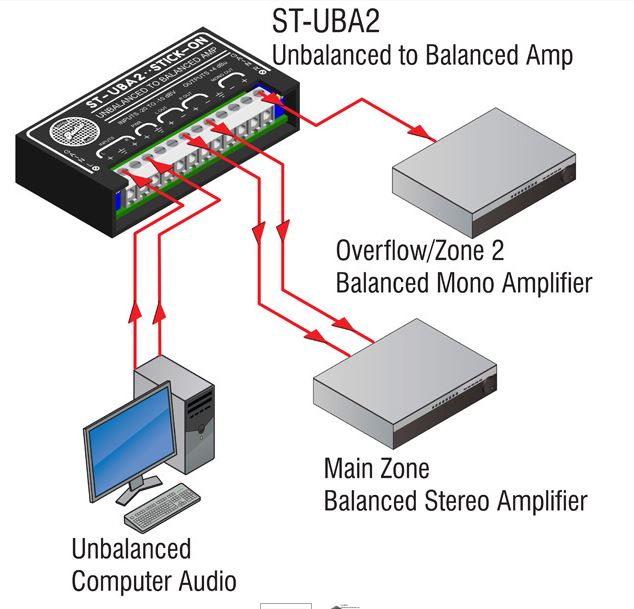

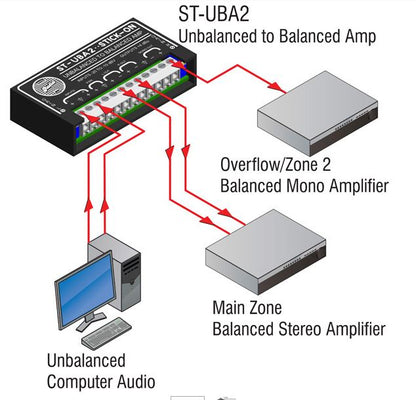

The ST-UBA2 is used in any application requiring conversion from unbalanced consumer format signals to professional +4 dBu. It may be used to balance audio from CD players, cassette decks, computer sound cards, televisions, and a wide variety of other unbalanced sources. The mono sum output may be used to drive patch-bay jacks, monitors or subwoofer amplifiers.

Separate Dual-LED VU metering is provided for the left and right outputs. A green LED illuminates at 15 dB below +4 dBu. The intensity of the green LED progresses from minimum at -11 dBu to full intensity at +4 dBu. The adjacent red LED illuminates at +4 dBu.

The audio clarity, low-noise, low-distortion and excellent crosstalk performance makes this module ideally suited to a wide variety of demanding audio applications. Use this module in conjunction with other RDL® modules as part of a high quality, flexible audio/video system.

View full details

Specifications

Dimensions
Package Dimensions
2 x 2 x 4 in.
Weight
Shipping Weight
0.205 lbs.
WEEE Weight
0.155 lbs.
Electrical
THD+N
< 0.02% (20 Hz to 20 kHz)
Power Requirement
GROUND-REFERENCED, 24 Vdc @ 75 mA
Audio
Input Impedance
10 kΩ
Output Impedance
150 Ω
Frequency Response
20 Hz to 20 kHz (± 0.2 dB)
Crosstalk
< -75 dB @ 1 kHz, < -60 dB @ 10 kHz
Connectivity
Inputs (2)
Unbalanced line-level
Input Signal Range
-20 dBV to -10 dBV
Outputs (3)
+4 dBu balanced (left, right, mono sum)
Construction
Gain
2 dB to 22 dB (adjustable)
General
Noise
< -85 dB (referred to +4 dBu)
Indicators(4)
1 green LED per channel indicating 15 dB range below +4 dBu output level output level
IMD
< 0.004%
Headroom
> 18 dB above +4 dBu
Ambient Operating Environment
0° C to 55° C
